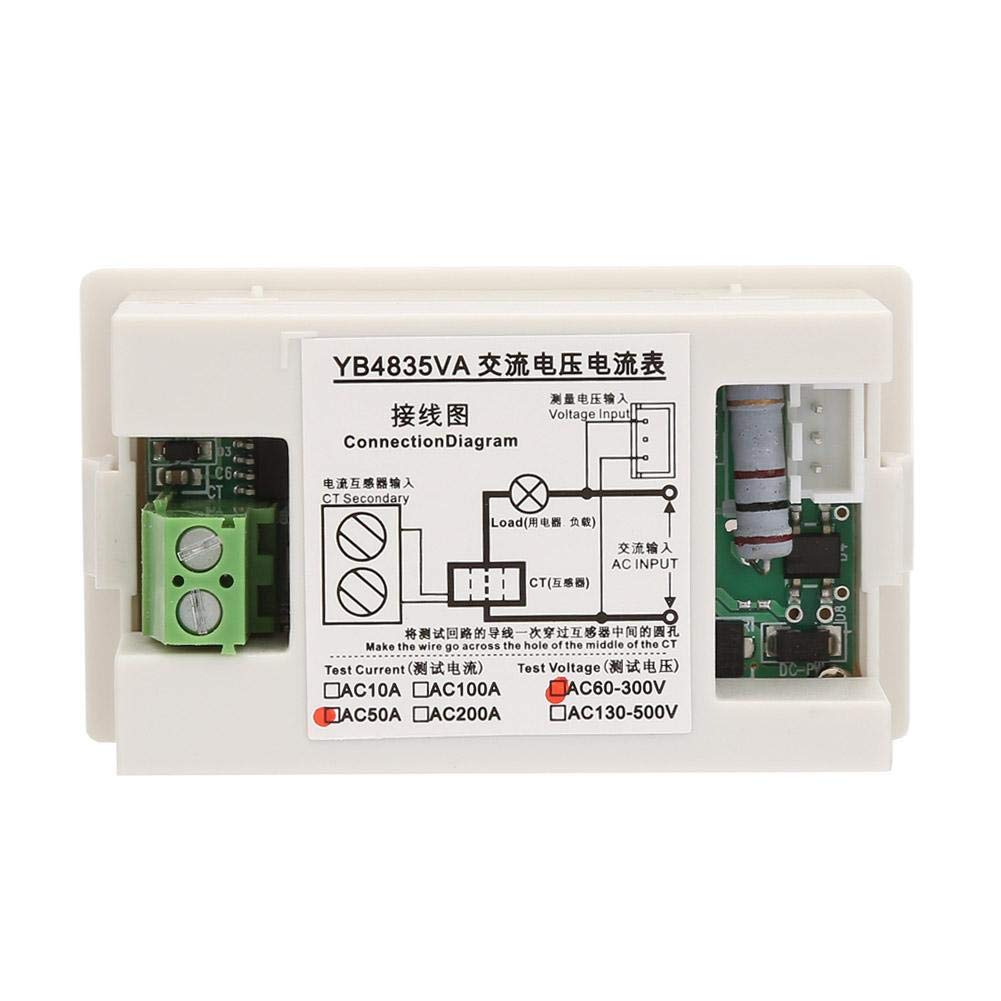

Specification: Measuring Accuracy:1%+-2 Digits Screen:0.39” LED Nixie Tube Screen,Voltage-Red,Current – Green Measuring Speed:2 times/s Size:70*40*30mm/2.76*1.57*1.18in Installation Size:68*38mm/2.68*1.5in Supply Cord Length: 150mm/5.91in Approx. “Split” Transformer Lead Length:100mm/3.94in Approx. Voltage Measuring Range:60~300V Voltage Resolution: 1V Current Measuring Range:0~50A Current Resolution: 0.1A( Transformer bore:About 15mm) Extreme Working Condition: Working Temperature:-10~50℃ Working Humidity:10~80%(No condensation) Working Pressure:80~106KPa Sunlight:No direct exposurePackage List: 1 x Voltage Ampere Meter 1 x Mutual InductorNote: The meter can only be used to measure 50 / 60Hz sine wave circuits meter will be damaged while measuring square waves, inverter output and sine wave correction. First connect the current transformer to the meter. Second, connect the meter to the voltage test line. After connecting, do not touch any part of the back of the meter to avoid electric shock. The connection between the voltage input and the current transformer can cause damage to the meter. Make sure the voltage and current transformer are connected correctly.

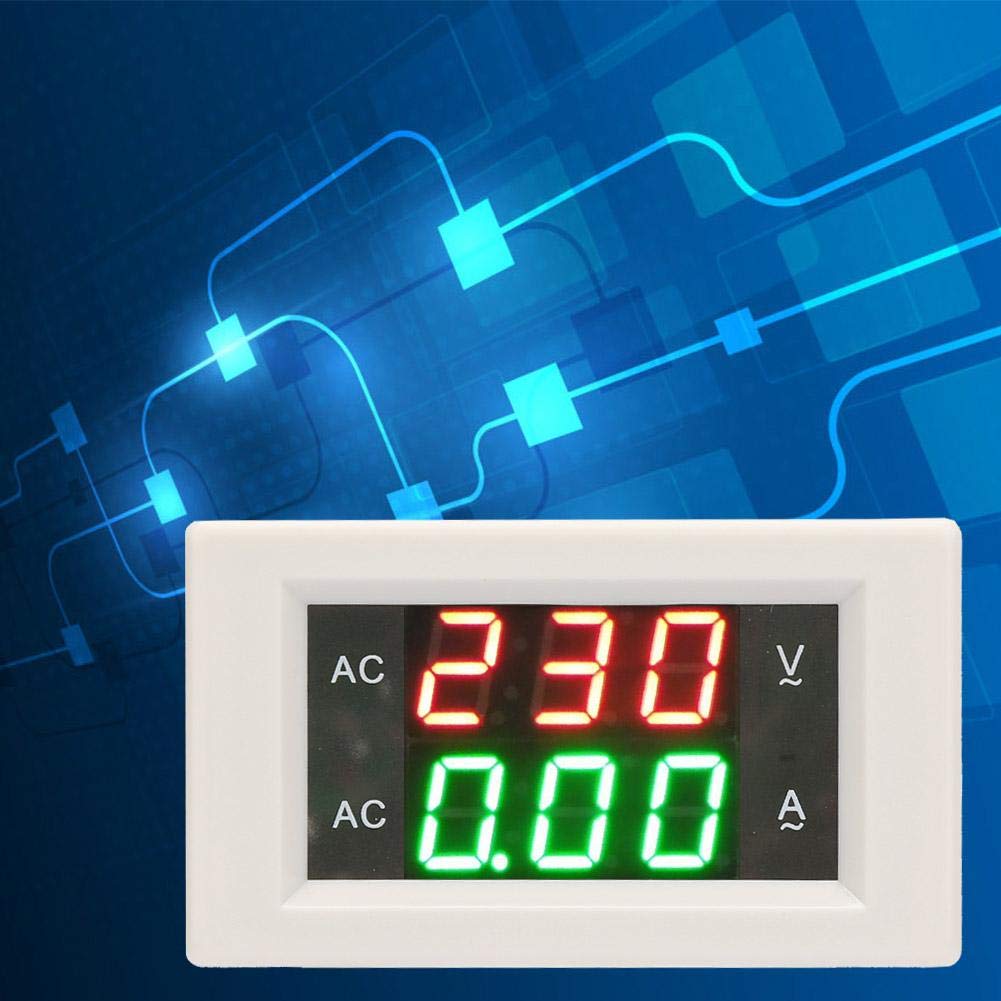

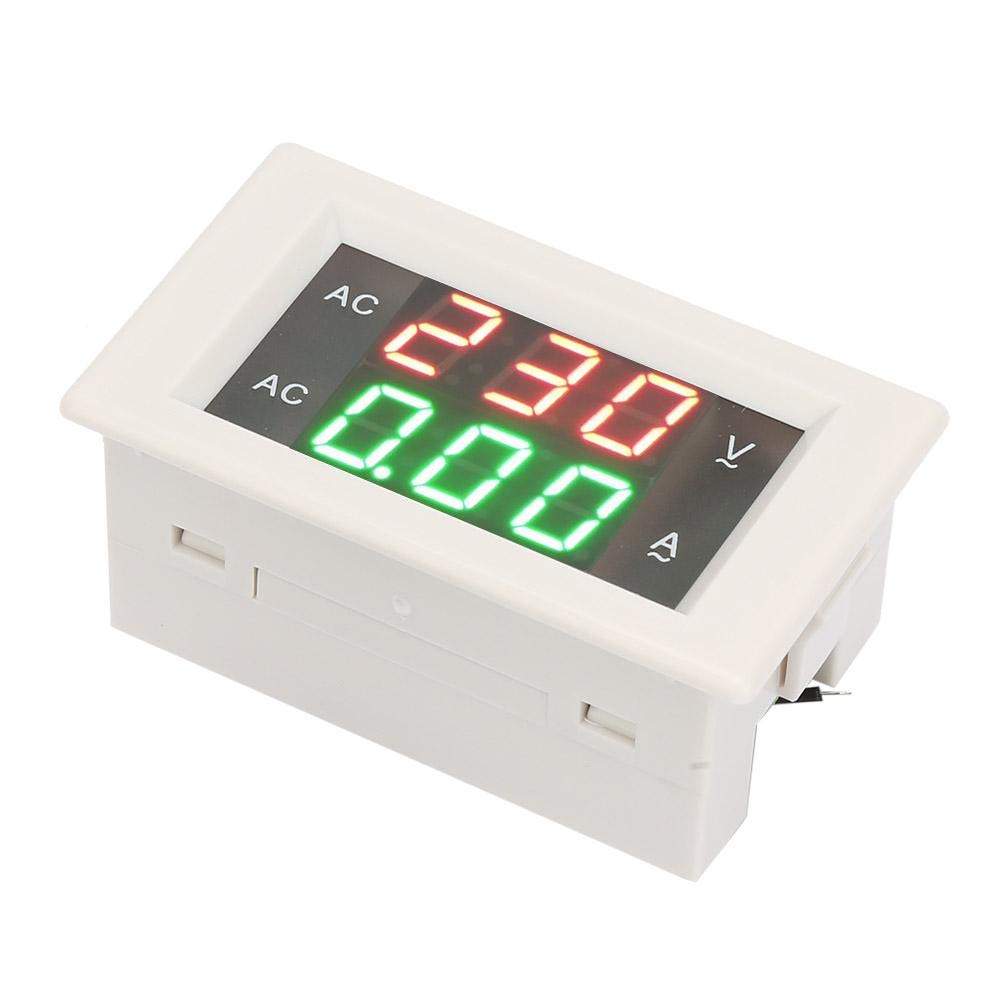

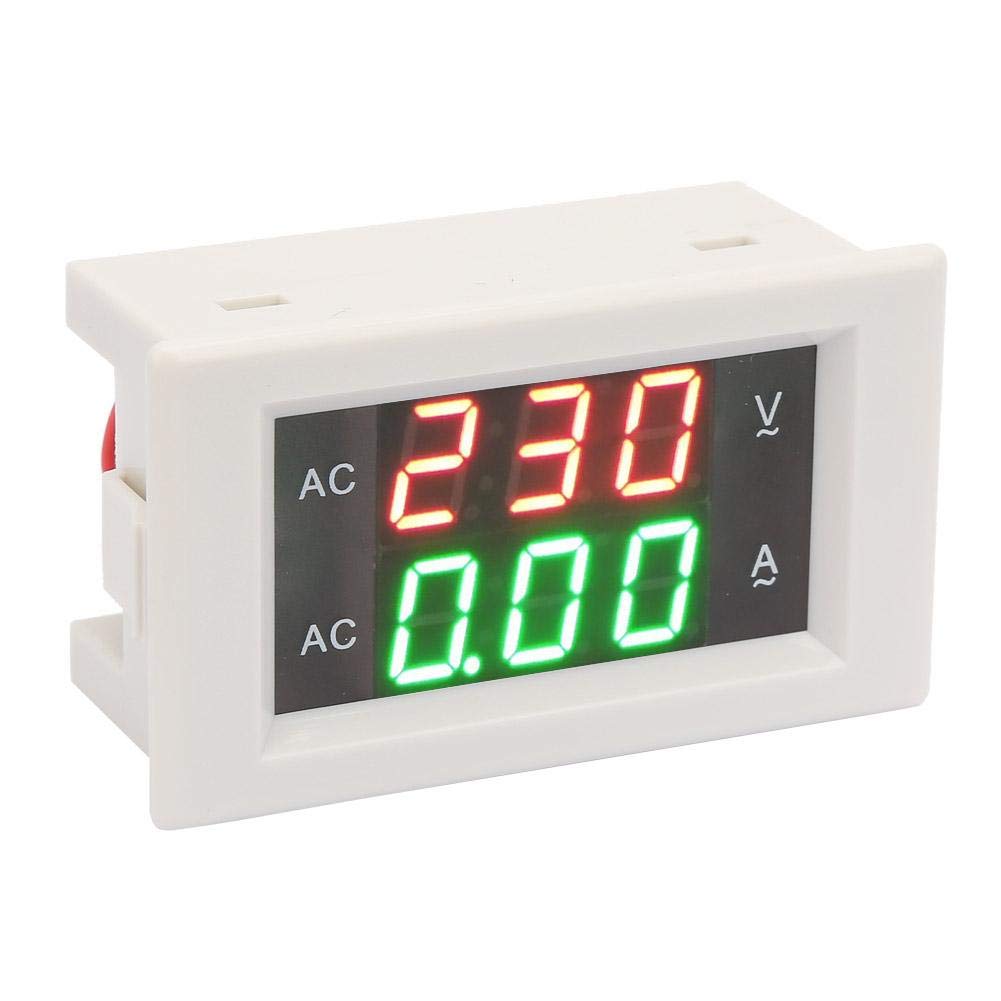

LED Dual Digital Display Voltage Meter YB4835VA 60-300V, AC Voltmeter Ammeter Red Green Current Tester 0-50A
$45.99
- 【CONVENIENCE】 The two-color display data, the numbers are clearly visible and easy to distinguish. The CT of the meter is only connected to the CT socket and does not require grounding or equipment housing.
- 【MATERIAL】 The outer casing is made of high quality ABS material, which has good insulation and is not affected by temperature, humidity and frequency. It can be used in most environments.
- 【DURABLE】 Using SMT technology and large-scale integrated circuit board production, low energy consumption and long service life.
- 【PORTABLE】 Professional and practical design, small size is easy to carry and use. The casing is moisture-proof and dust-proof.
- 【USE】 The meter is used to measure the accuracy of a sine wave circuit. With anti-reverse circuit protection, automatic point shift function, etc.
In stock
Additional information
| Weight | 0.08 kg |
|---|---|
| brand | Hilitand |
| dimensions | 7 x 4 x 3 cm; 70 Grams |
