Legrand 004835Terminal block green 16 x 16 qmm L141 mm Terminal protection with shock protection for rail and manifold mounting, IP 20 conductor (blue) in accordance with IEC 998-2-1; corresponds largely with EN 60998-2-1 = VDE 0613-2-1 for 25 mm2 Cu lines. 100 amps/400 VAC for 16 mm2 Cu cables. 80 Amps/400 VAC supplied with open screws, finger-safe mounting on 12 x 2 mm rail possible, designation options with Duplix labels Specifications:

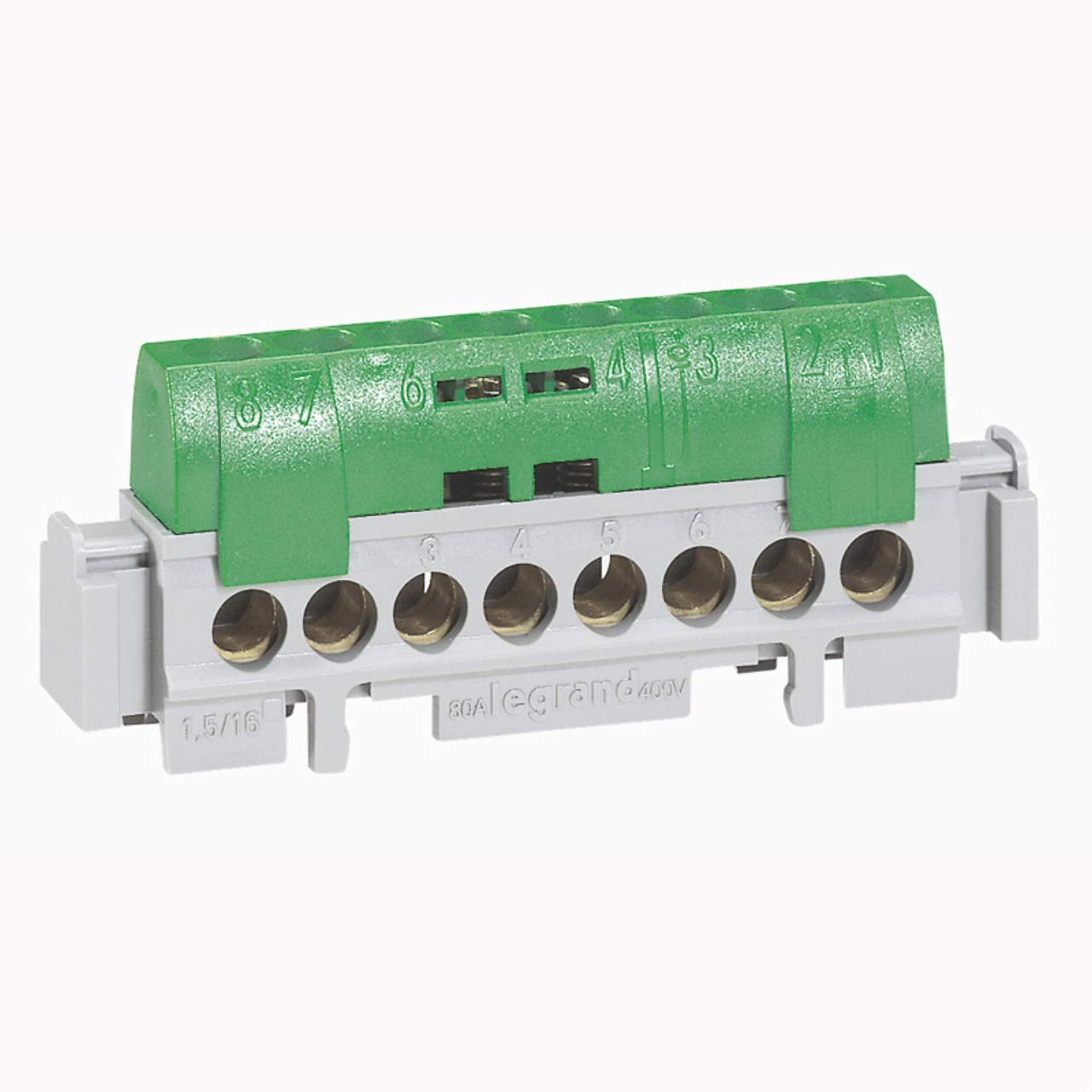

Legrand 004835 Terminal Strip 25Q 16 x 16Q Green
$20.99
- Connections: 1 x 6 to 25 and 16 x 1.5 to 16 mm
- Length : 141 mm
- Earth (green)
- Insulated terminals IP 2X
- Binds to symmetric or asymmetric rail, universal bracket ref. 0 048 11 flat bar or 12 x 2
- Conform to IEC 60998-2-2 standard
- delivered loose screws or cages
In stock
Additional information
| Weight | 0.085 kg |
|---|---|
| brand | Brand: Legrand |
| dimensions | 14.8 x 10.1 x 8.8 cm |
