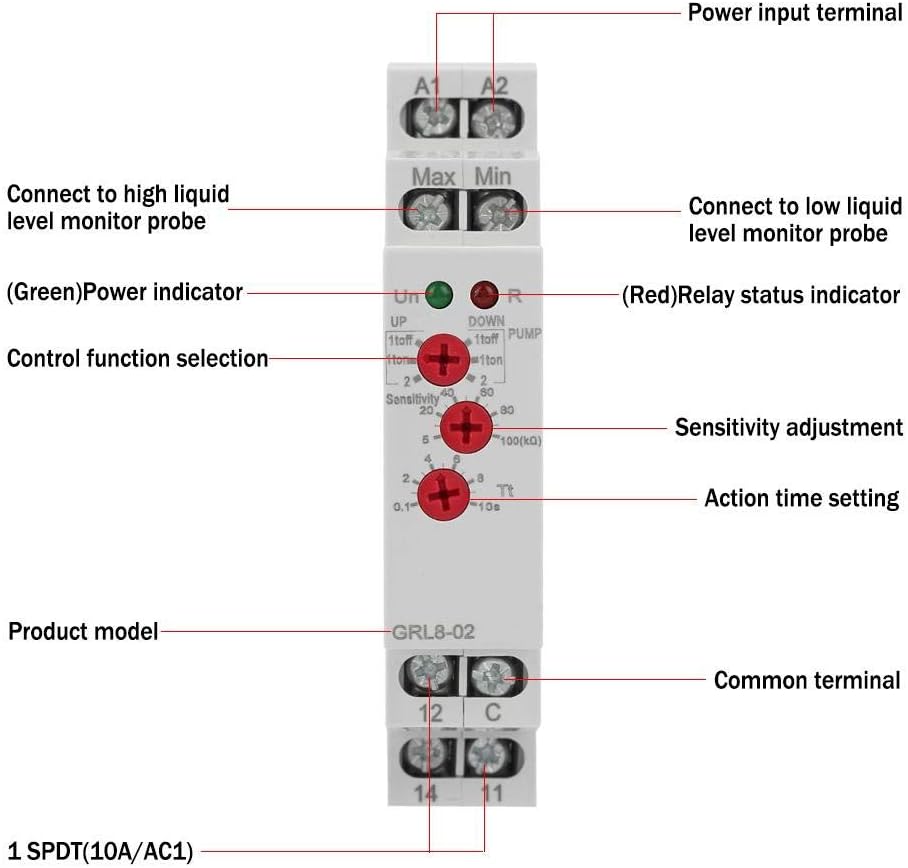

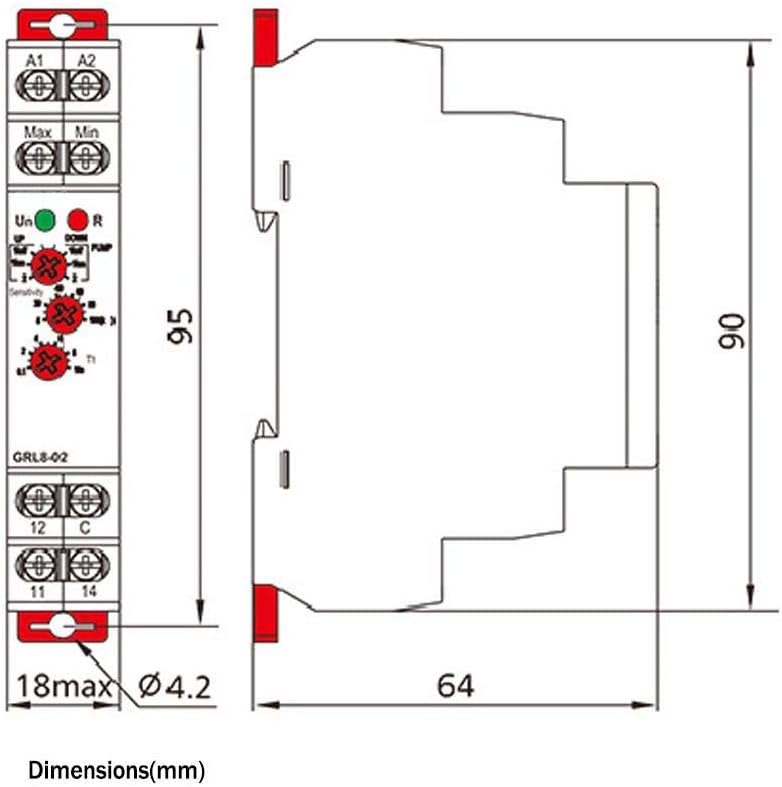

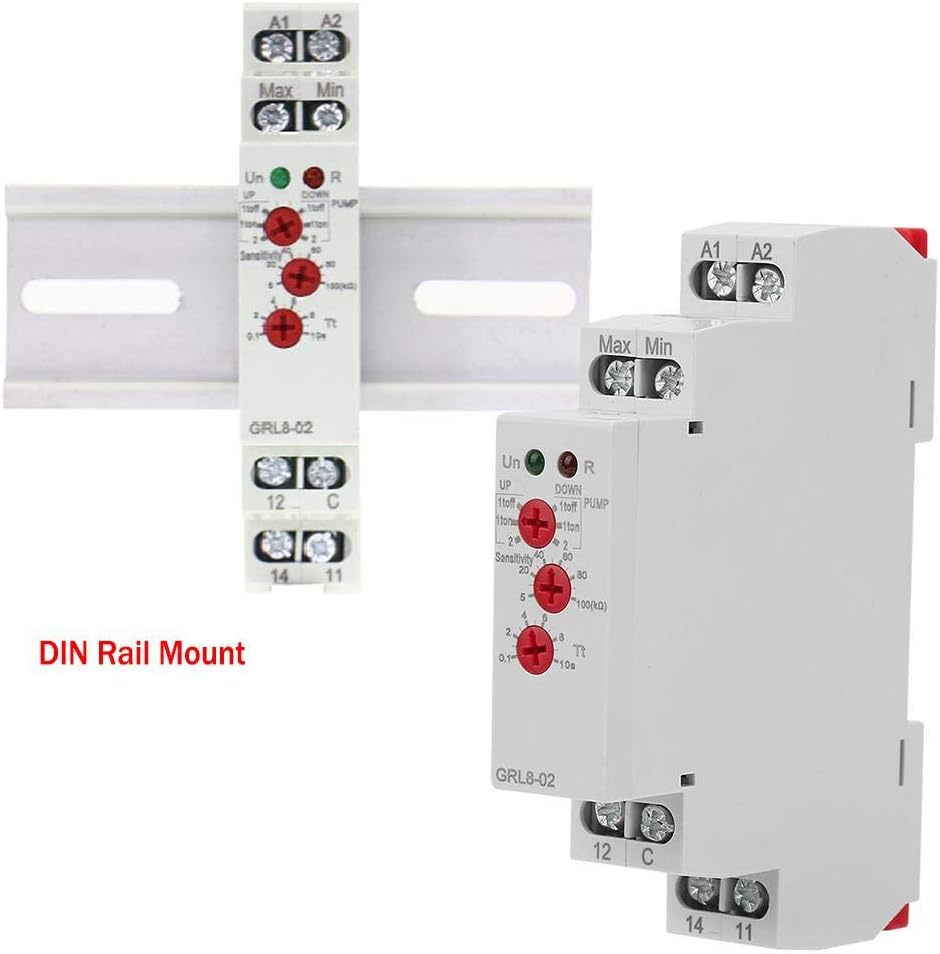

Specification: Model: GRL8-02 Function: 2 or 1 level control mode Power terminal: A1-A2 Rated power supply voltage: AC/DC 24-240V(50-60Hz) Power consumption: Max. 2VA Sensitivity adjustment range: 5-100kΩ Supply voltage tolerance: -15%; +10% Voltage in electrodes: Max. AC 5V Current in electrodes: Max. 0.1mA Response time: Max. 400ms Electrode cable allows distributed capacitance (maximum): 800nF-100nF Electrode cable length: ≤100m Action delay time: 0.1s-10s (adjustable) Setting accuracy: 10% Output contact parameters: 1×SPDT, 10A/AC1, 250VAC/24VDC Minimum switching power: 500mW Power indicator: Green LED Output indication: Red LED Mechanical life: 1×107 Electrical life(resistive load): 1×106 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Wiring capability: 1×2.5mm2 or 2×1.5mm2 Dimensions: 90×18×64mm / 3.54×0.71×2.52in Weight: Approx. 82g/2.9ozPackage List: 1×Liquid Level Control RelayNote: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.
Water Level Relay GRL8-02 Liquid Level Control Water Level Controller 10A AC/DC 24V-240V
$87.99
- Model: GRL8-02;Rated power supply voltage: AC/DC 24-240V(50-60Hz);Power consumption: Max. 2VA
- Function: 2 or 1 level control mode
- Dimensions:3.54×0.71×2.52in;Weight: Approx. 82g
- You can set water draining mode and water supply mode.
- Designed for monitoring liquid level in pool, well, water tower, reservoirs, tanks, etc.
In stock
Additional information
| Weight | 0.02 kg |
|---|---|
| brand | Brand: YWBL-WH |
| dimensions | 10 x 7 x 2 cm; 20 Grams |
