Specification:Model: GA25YN370 Rated power: 3.5 (W) Product type: Brush dc motor Rated voltage: 5-12 (V)
Rated current: 0.06 (A)
Outer diameter: 25 mm/1.0in
Shaft diameter: 3 mm /0.1in Shaft length: 10 mm/0.4in
Weight: 96g/3.4oz Voltage Gear ratio no load load Stall speed Current speed Current toqure Current toqure 12V 1:650 5RPM ≤150MA 3RPM ≤70MA 1150gf ≤2.1A 15.4kgf 12V 1:150 10RPM ≤170MA 7RPM ≤100MA 980gf ≤2.1A 14.8kgf 12V 1:150 30RPM ≤170MA 25RPM ≤100MA 770gf ≤2.1A 12.0kgf 12V 1:200 60RPM ≤170MA 51RPM ≤100MA 750gf ≤2.1A 11.8kgf 12V 1:100 100RPM ≤150MA 73RPM ≤185MA 660gf ≤2.1A 10.5kgf 12V 1:50 200RPM ≤180MA 165RPM ≤105MA 580gf ≤2.1A 8.8kgf 12V 1:30 300RPM ≤190MA 254RPM ≤145MA 180gf ≤2.1A 7.8kgf 12V 1:25 400RPM ≤190MA 344RPM ≤145MA 170gf ≤2.1A 7.7kgf 12V 1:20 500RPM ≤190MA 460RPM ≤145MA 150gf ≤2.1A 7.5kgf 12V 1:10 1000RPM ≤190MA 820RPM ≤145MA 88gf ≤2.1A 7.2kgf
Package list:
1 x gear motor

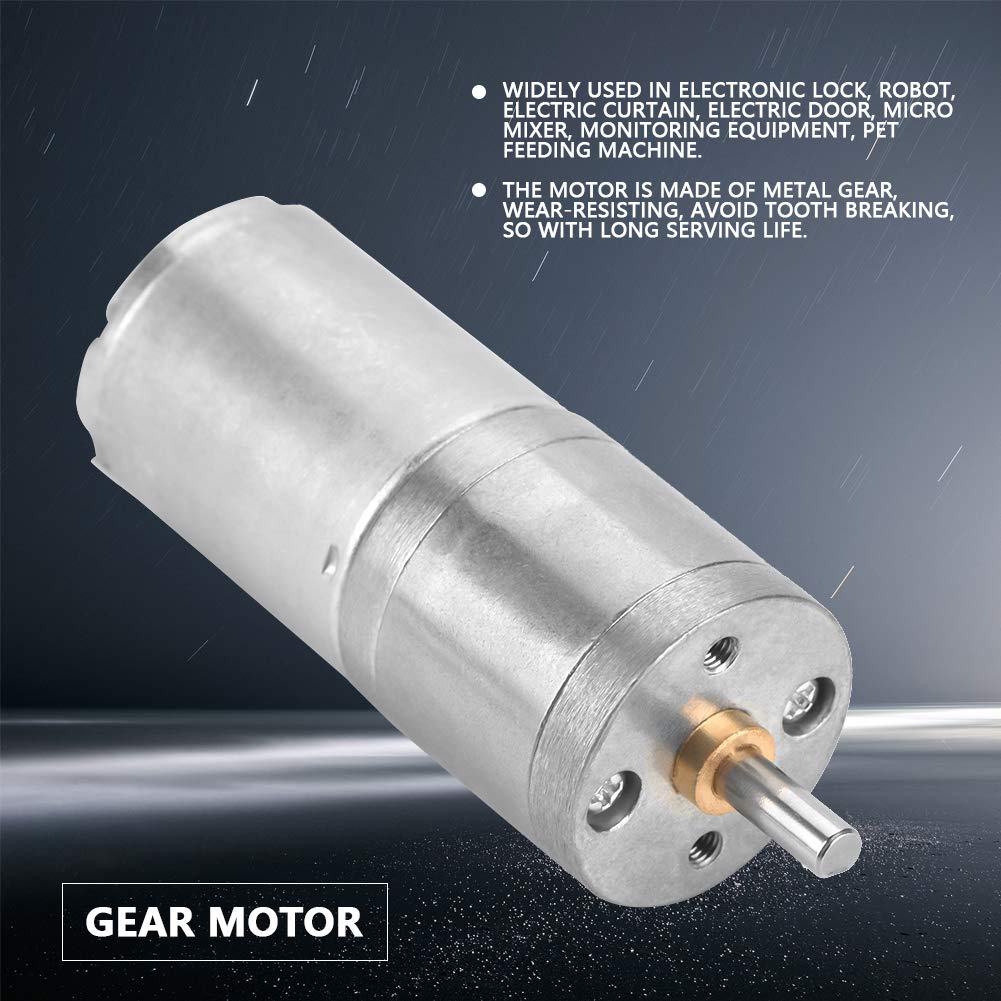

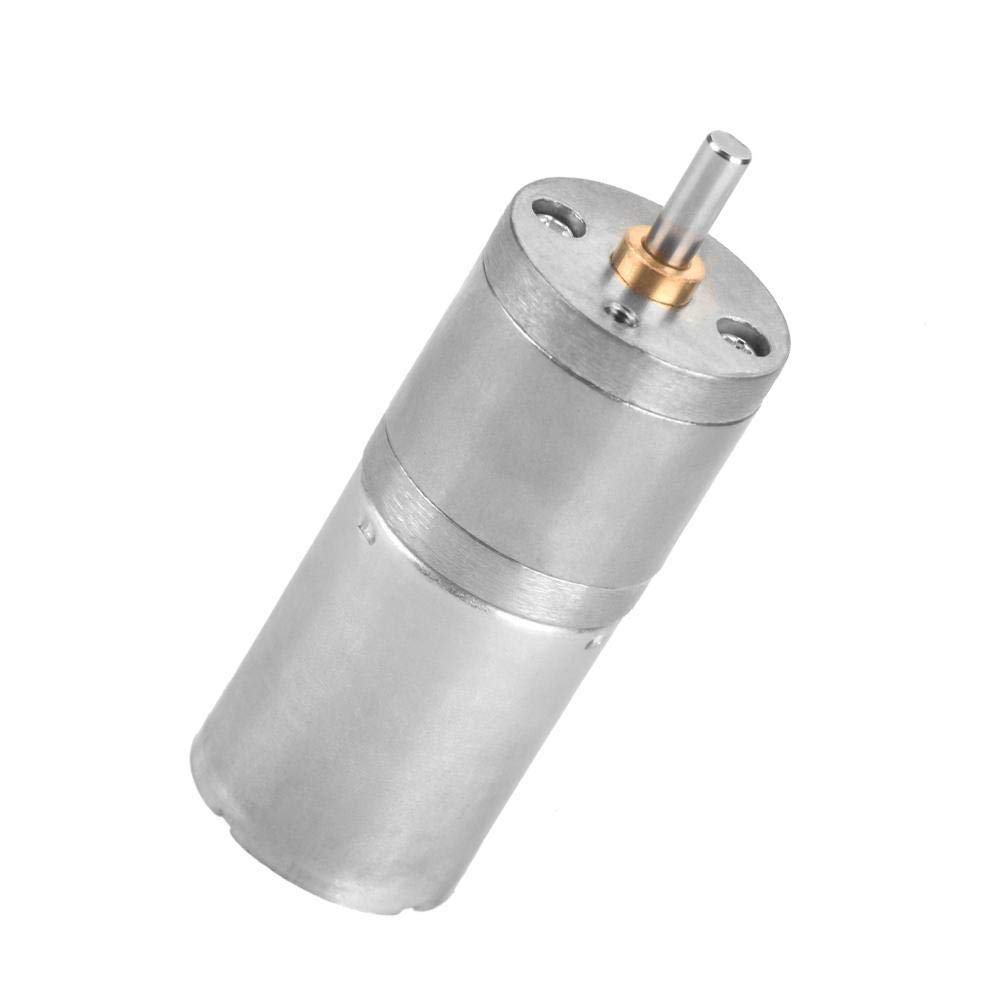

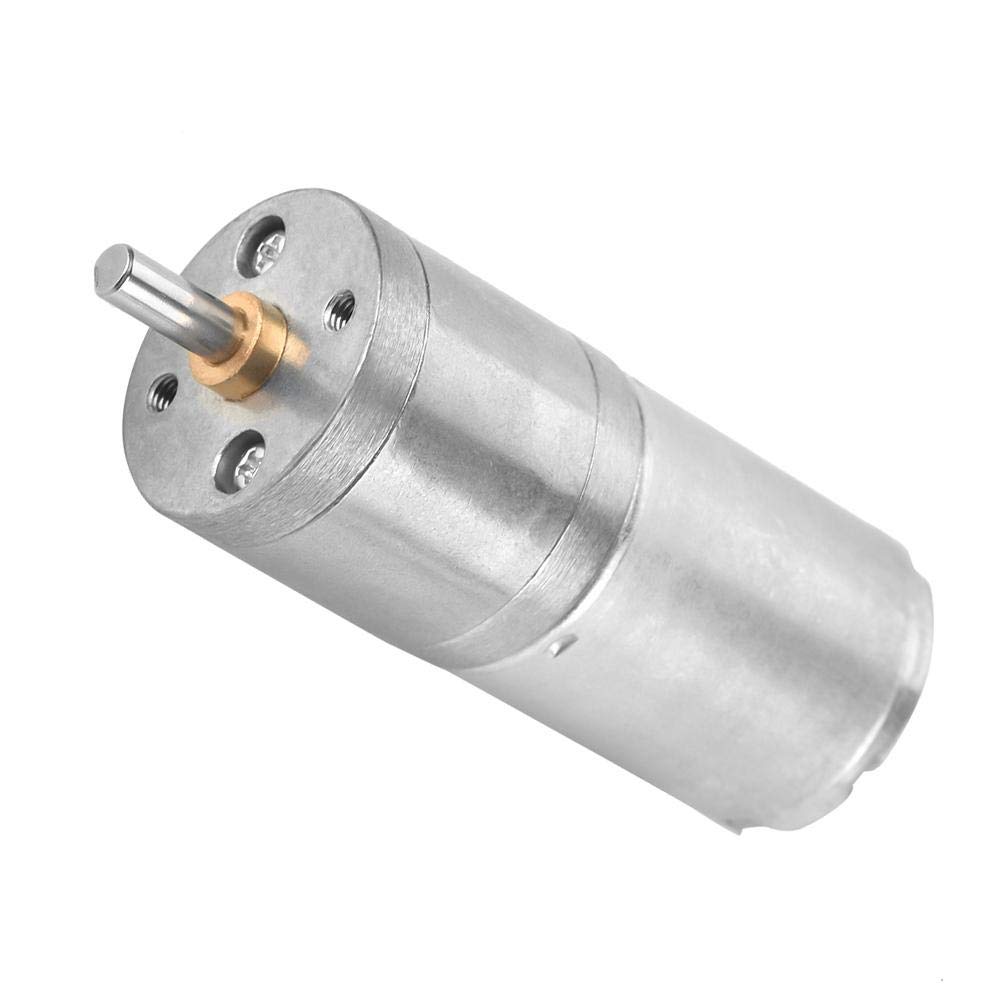

Metal Gear Box Motor,DC 12V 25GA-370 25mm large torque, Low Speed and noise for Electronic Lock, Robot, Electric Curtain, Electric Door, Micro Mixer,etc(12V 500RPM)
₪93.99
- ⭐The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life. High-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body.
- ⭐Rated power: 3.5 (W); Product type: Brush dc motor; Rated voltage: 5-12 (V); Rated current: 0.06 (A); Outer diameter: 25 mm/1.0in; Shaft diameter: 3 mm /0.1in; Shaft length: 10 mm/0.4in.
- ⭐This product is a DC gear motor with high precision metal gear, stable working DC motor features large moment of force, low speed, and low noise motor is adopted of pure copper wire coil, with low heat and low loss.
- ⭐Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine.
- ⭐Policy : We can provide you with a 30-day return refund guarantee, please rest assured to buy can contact us directly if you have any problems and we will respond within 24 business hours.
In stock
Additional information
| Weight | 0.089 kg |
|---|---|
| brand | Yanmis |
| dimensions | 7 x 4 x 4 cm; 89 Grams |
