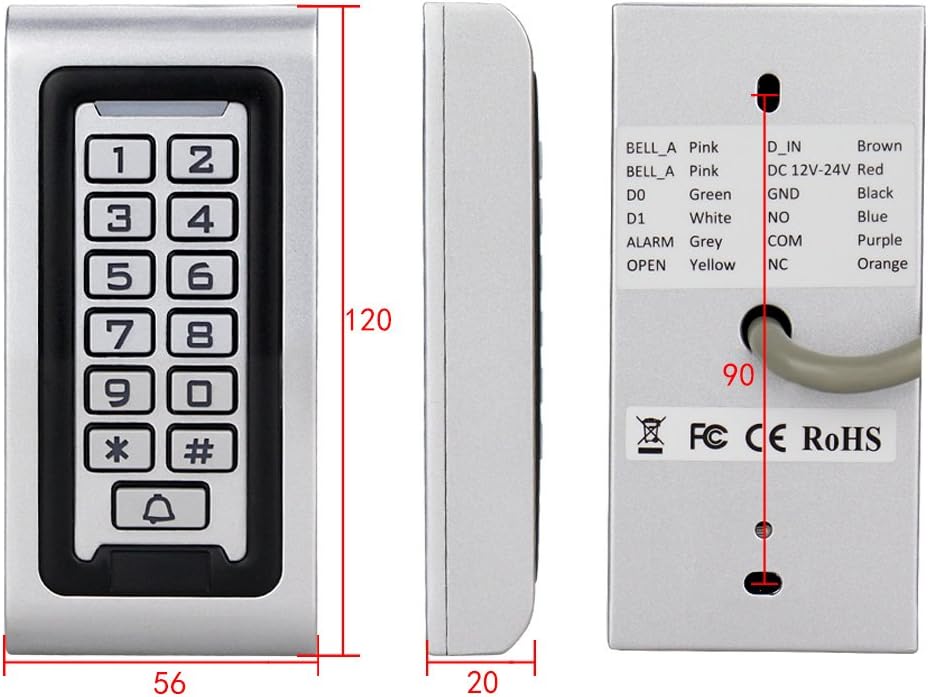

Product SpecificationsRFID Access ControllerUser Capicity: 2000 user cardsWG interface: WG26Working Frequency: 125KHzWorking Voltage: DC12VWorking Temperature: -35 to +60Verification Method: RFID card, Password, RFID card+passwordReading Distance: 0-10cmWaterproof level: IP68Blacklight: blueSize: 120 X 57 X 20mmElectric Drop Bolt LockMaterial: Aluminium AlloyWorking Voltage: DC12VDimension: 150*34*28 mmSecure Mode: NC model/ fail safe model ( Locked when power on, unlocked when power off )Working Current: star-up: 1.2A, operating: 0.25AWiring DiagramIf you want to test the lock, please connect the red cable to “+12v”, black cable to “GND” of the 12VDC power supply you install completed access control system kit set, please connect red cable to “NC”, black cable to “COM” of the power supplyr SupplyMaterial: SteelOutput Power: 36WDurability Test: 500000 timesInput Frequency: 50-60Hz Input Voltage: 110-260VACOutput Voltage: DC12V/3A Working Temperature: -20 to +65Time Delay: 0-15 seconds adjustableDimension: 100*65*32mmRFID KeyfobsYou can read these keys on the access controller keypad to open the door convenient. Working Frequency: 125KHzWith ABS high qualityEach one has unique ID number on itReading Range: 1-10cm Color: BlueQuantity: 10pcsDoor Exit ButtonMaterial: Fireproof plastic/ABSApplication: Home/ Office/ Hotel/ Factory/ Store, etcDurability Test: 500000 times Contact Rating: 3A/36VDCInput: 12VDC Output: NO/NC/COMWorking Temperature: -10 to +55Suitable for Door: Hollow DoorDimension: 86*86*20mmPackage Including1* RFID Keypad1* Electric Drop Bolt lock1* Power supply1* Exit button10* RFID keyfobs
NN99 Door Access Control System RFID Keyboard IP65 Waterproof Keypad + Electric Drop Bolt Lock + Power Supply + 10pcs Keychains
$183.99
- 1. Working with DC12V power supply system. Very easy to install. Don’t need to connect to computer.
- 2. Made of high quality, the access control keypad is IP65 waterproof, can be used outside. Has a WG26 interface and door bell button.
- 3. Support 2000 user capacity. Can open the door with RFID key cards, password, RFID key card+password.
- 4. Suitable for wooden door, metal door single door. Locked when power on, unlocked when power off.
- 5. Package including access control keypad + power supply + electric drop lock + door exit button +10pcs Keyfobs.
In stock
Additional information
| Weight | 1.4 kg |
|---|---|
| brand | NN99 |
| dimensions | 22.4 x 17 x 13.4 cm; 1.4 Kilograms |
