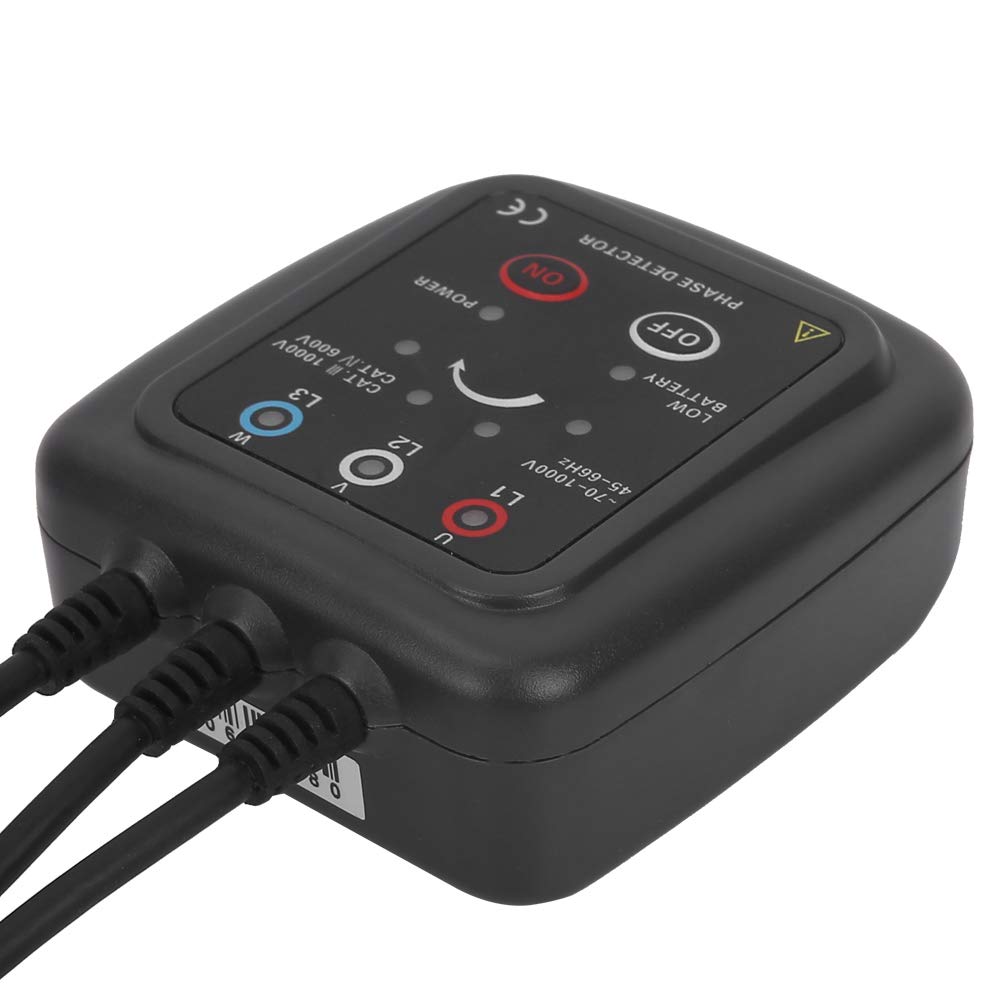

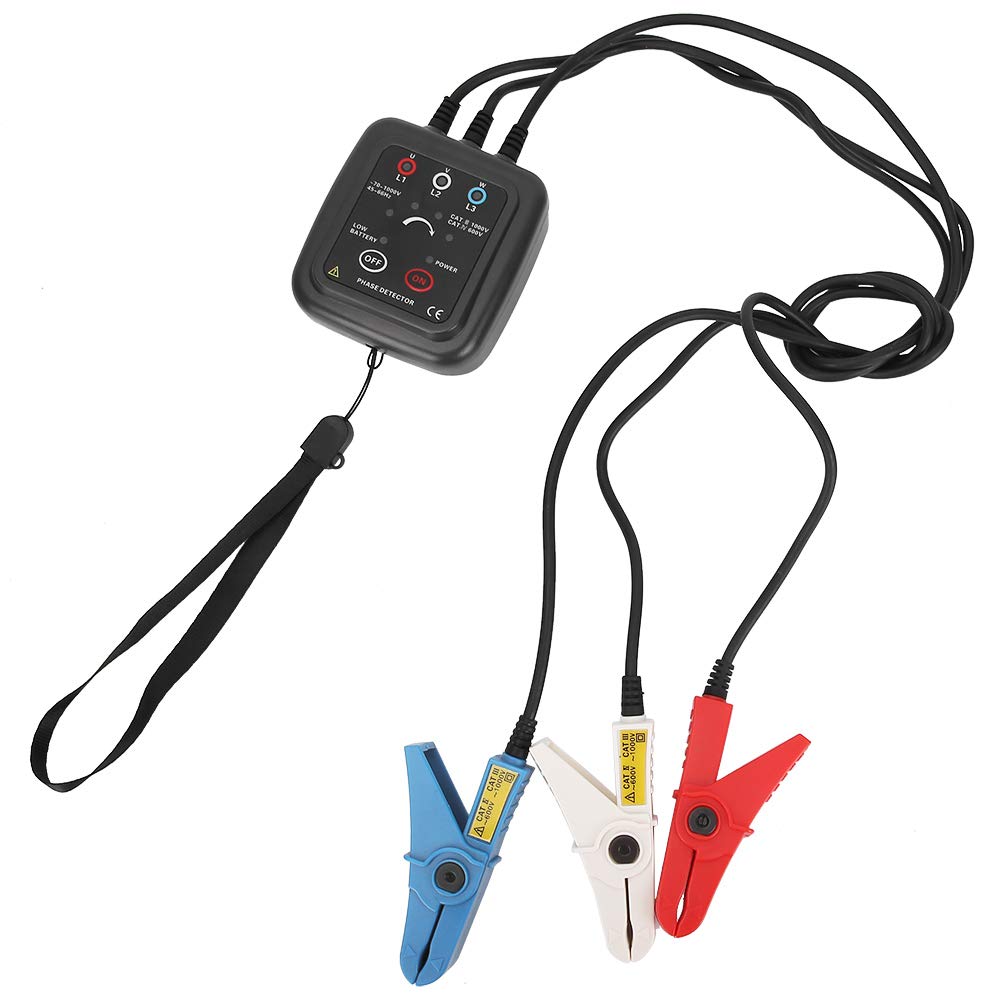

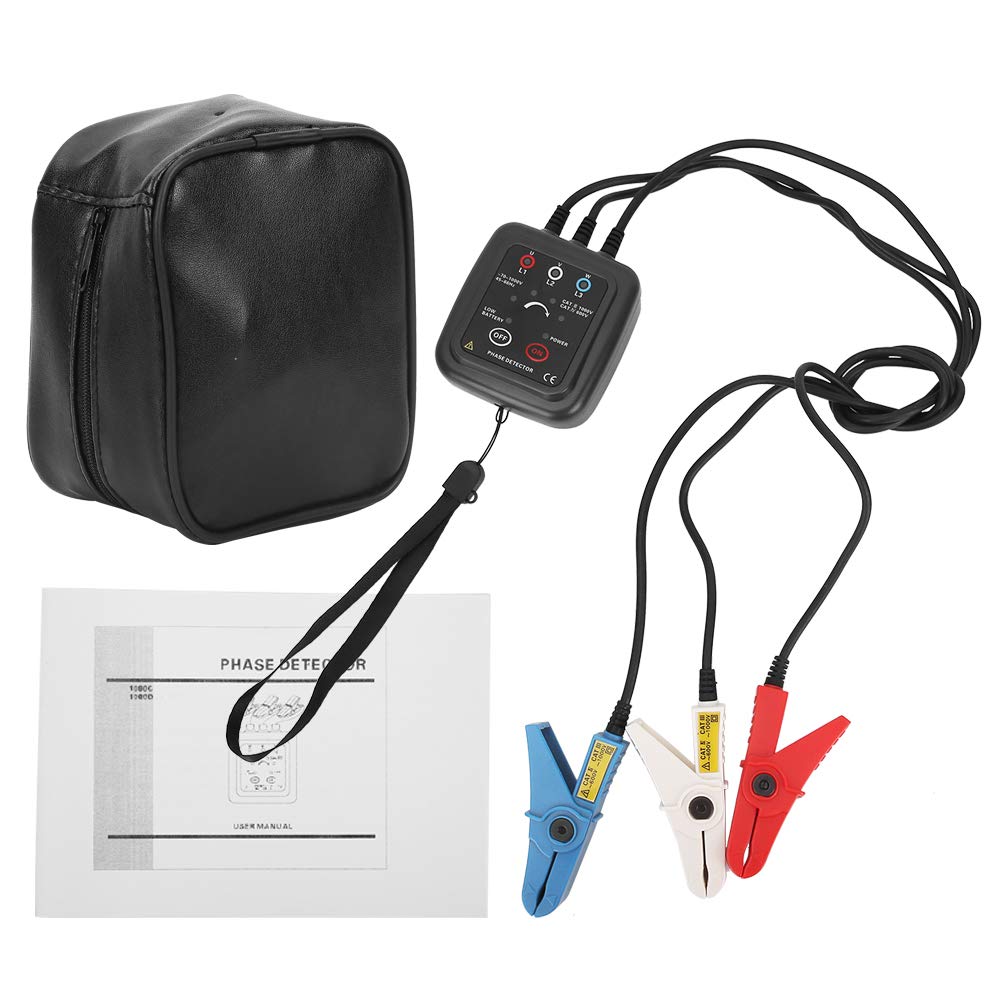

Non-Contact Phase Sequence Detector Rotation Monitor ETCR1000C Meter AC 70-1000V Magnetic Base with 0.6M Clamp Wire Length for Industry

Feature: Phase sequence detection, live line check, simple power check, live wire identification, phase loss judgment, wire break position search, DC line break point detection, line maintenance. Clamp-type non-contact inductive measurement, no need to open the wire, no need to touch the high-voltage exposed fire wire, directly sandwich the three super-inductive high-insulation clamps to the insulation skin of the three-phase live wire to detect the phase sequence. Non-contact inspection for safe and fast productivity. The dynamic sound and light indicates the positive or negative phase of the phase sequence of the three-phase power supply, which is clear at a glance. The bottom plate of the instrument is equipped with 4 magnets, which can be attached to the metal casing of the equipment during testing, and the operation is convenient and convenient. Specification:
Model
ETCR1000C
Functions
Phase detection (Positive phase, reverse phase and phaseloss), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance.
Power Supply
DC 3V2*AA Alkaline dry battery , Continuously working for 70 hours
AC Voltage Range(V)
AC 70 – 1000V, 40/65Hz (Sine Wave Continuous Input)
Clamp Wire Size
External Diameter 1.6-16mm
LED Display
(Positive Phase Sequence)
The four phase-sequence lamps light in order (clockwise).
(Negative Phase Sequence)
The four phase-sequence lamps light in order (c
