FOR FULL SPECIFICATIONS AND DETAILS, PLEASE REVIEW THE PRODUCT PAGE AT NOOELEC
LaNA is a very high performance, wideband LNA module designed for general purpose SDR applications.

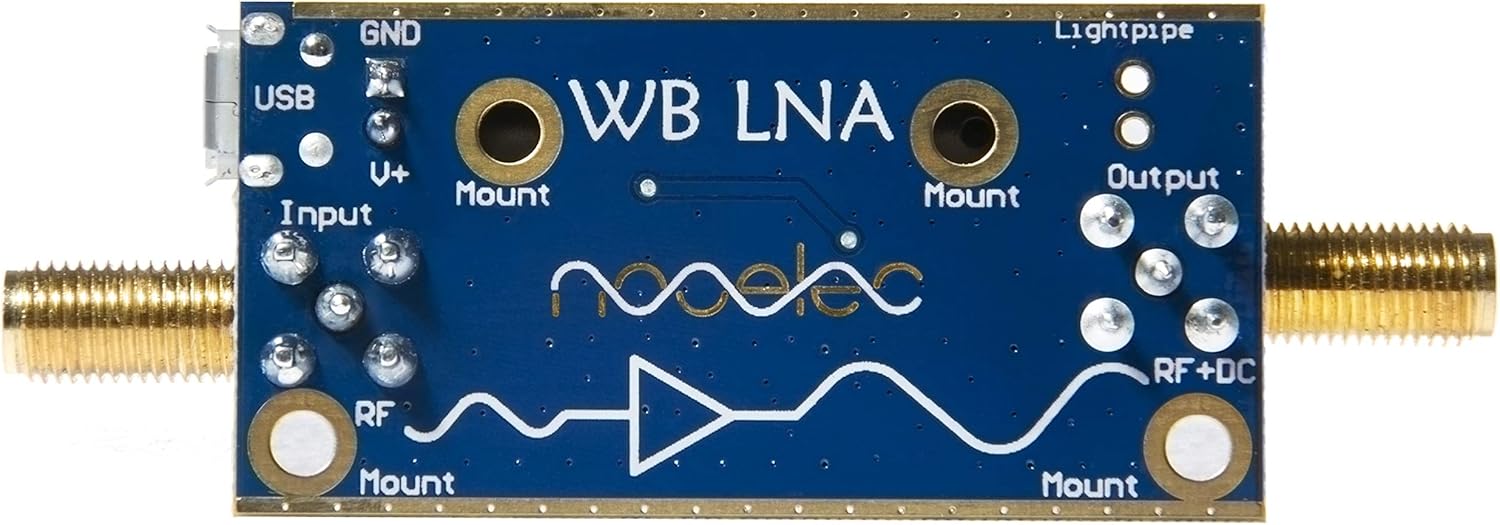

Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 3V-5V DC. Alternatively, if you don’t have a bias-tee capable SDR, you can use the external power options–the microUSB port, or DC barrel connector via the included DC to microUSB adapter. The recommended external power input is 3.3V-5.5V DC.
Though there is protection circuitry on LaNA for overvoltage conditions–and voltages of up to 12V DC should still work and will not damage the device–it is not recommended for long-term usage. Kindly note that damage resulting from overvoltage conditions would not be covered under the standard 2 year warranty.

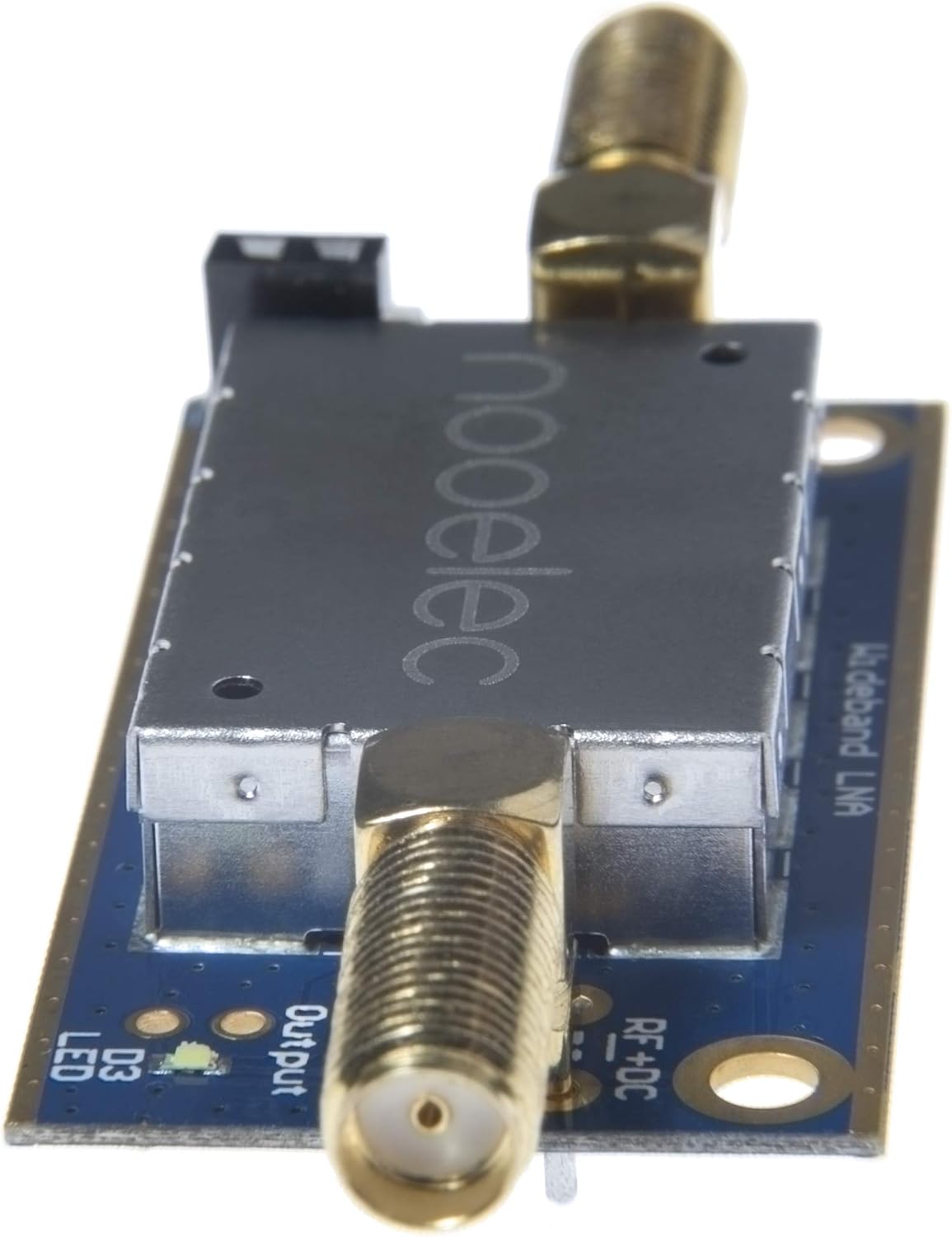

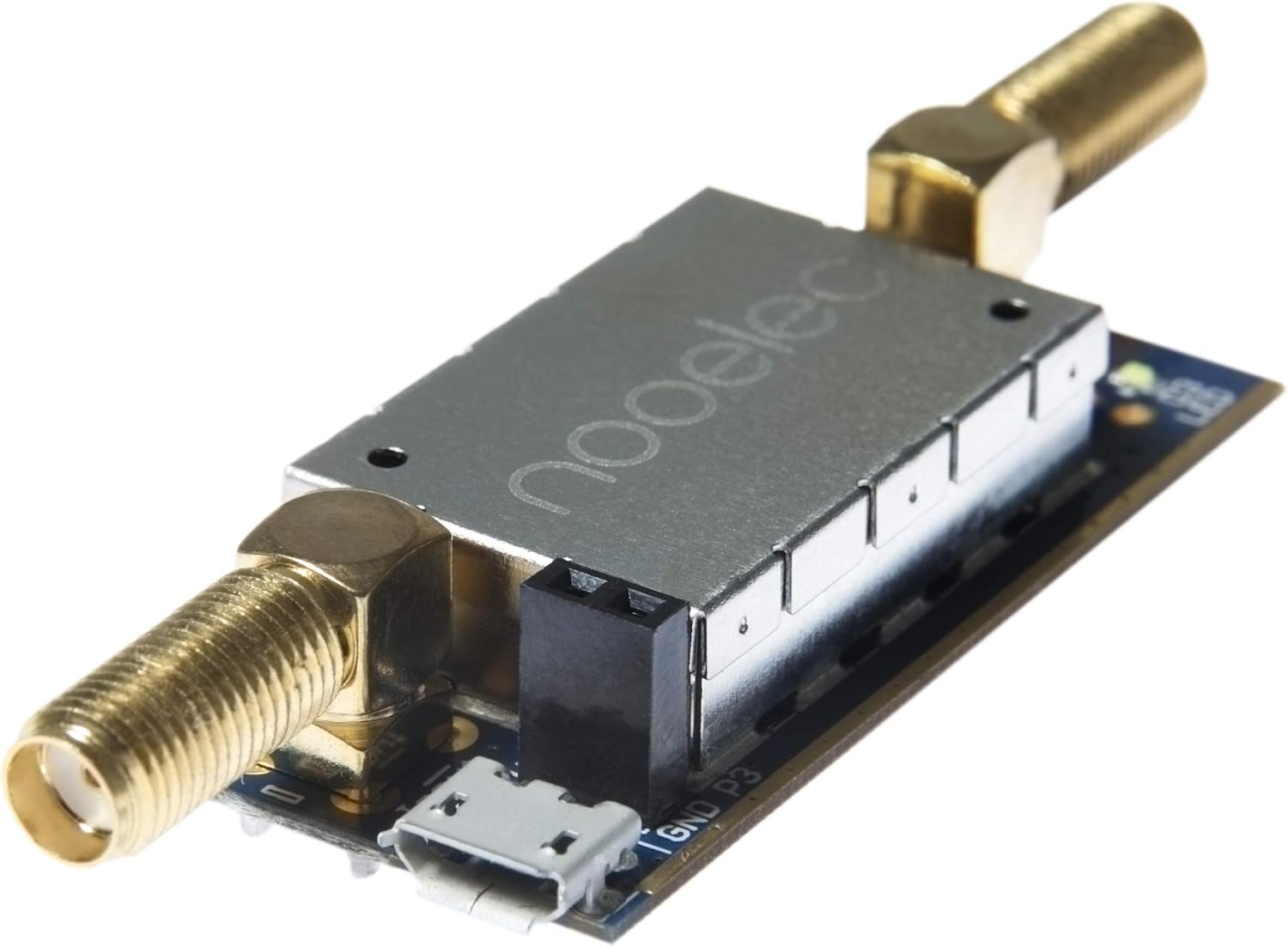

Each LaNA module has an internal EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected.
NooElec LaNA Barebones – Ultra Low-Noise Amplifier (LNA) Module for RF & Software Defined Radio (SDR). Wideband and Linear 20MHz-4000MHz Frequency Capability with Bias Tee & USB Power Options
$89.99
- Make sure this fits by entering your model number.
- A wideband (20MHz – 4GHz), high-performance, general purpose LNA module available at an extremely competitive price
- Higher gain, lower noise figure, lower power consumption and better linearity than modules based on SPF5189Z and similar LNA MMICs
- Can be powered through bias tee (3.3V-5V), USB, or DC power
- Made in North America. 1 year warranty! A retail version with aluminum enclosure is also available, see Amazon product ID B07XNLJ9X2
- NOTE: Some SDRs will require a DC block between the LNA and SDR if utilizing the external power options. For more information review the product page or datasheet: https://wwwlec/datasheets/100802
In stock
Additional information
| Weight | 0.016 kg |
|---|---|
| brand | NooElec |
| dimensions | 7 x 2 x 1 cm; 14 Grams |
