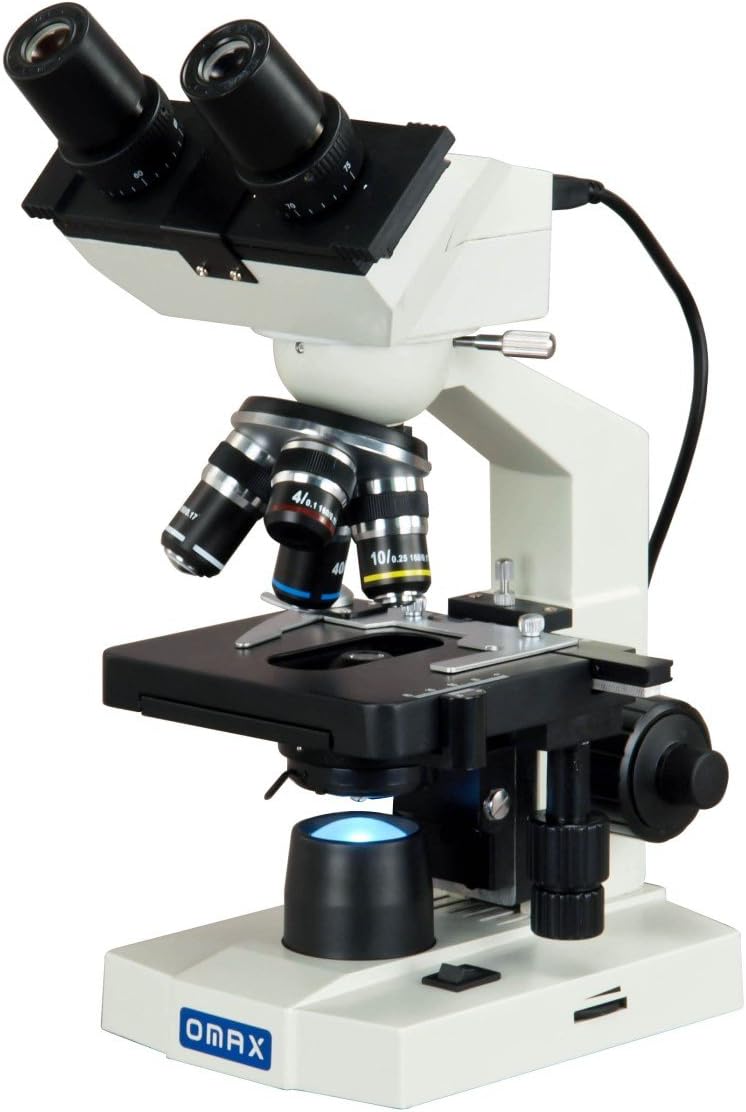

This is an OMAX MD82EZ10 biological compound microscope with built-in 1.3MP digital camera and advanced software. The digital compound microscope comes with a digital binocular viewing head, body frame, revolving quadruple nosepiece, two pairs of widefield eyepieces, four achromatic optics objectives, double layer mechanical stage with scale, Abbe NA1.25 condenser with iris diaphragm and variable intensity LED transmitted illumination system. It offers magnifications 40X-100X-250X-400X-1000X-2500X. The 1280 x1024 pixels USB digital imaging system that captures still microscope images and live video on computer. The included software compatible with Windows can also be used to make measurements. This type of microscopy is perfect for teaching demonstration and clinical examination, laboratories and advanced applications.
OMAX 40X-2500X Built-in 1.3MP Digital Camera LED Binocular Compound Microscope with Mechanical Stage
$714.99
- Make sure this fits by entering your model number.

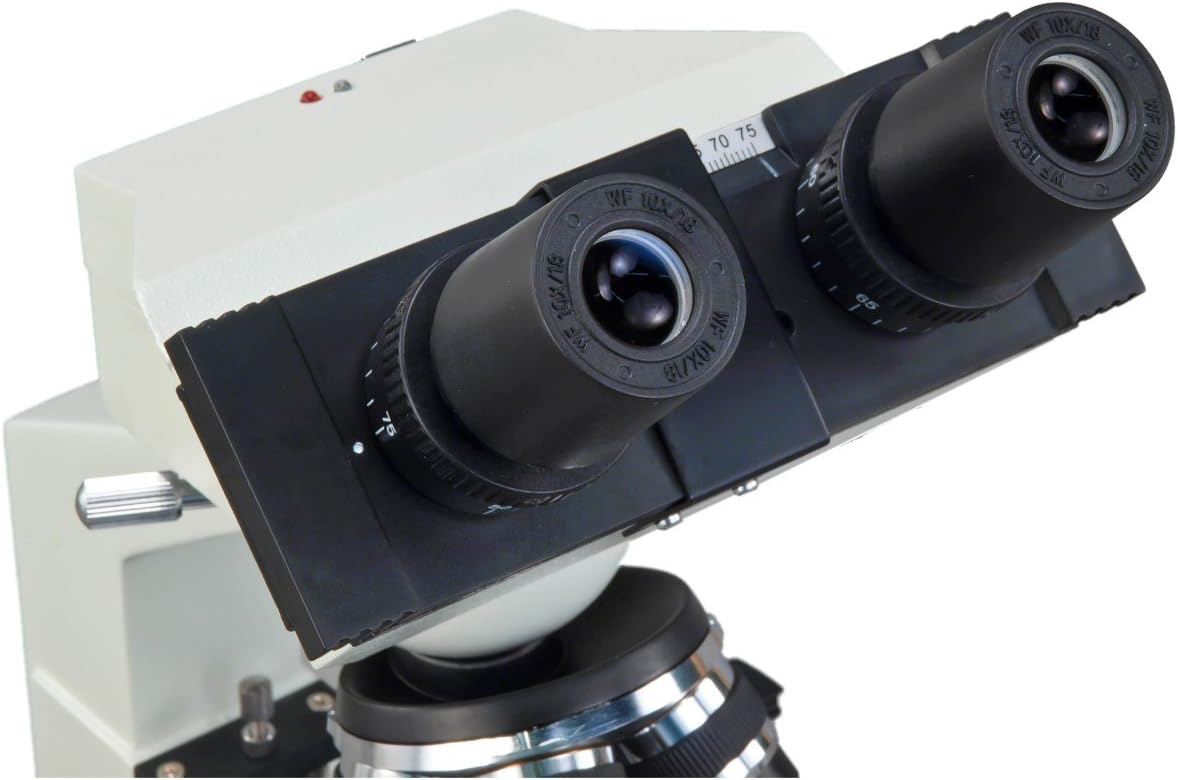

- Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X and WF25X; Objectives: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling digital binocular head; Sliding adjustable interpupillary distance: 2-3/16inch ~ 2-15/16inch(55~75mm); Ocular diopter adjustable on both eyetubes

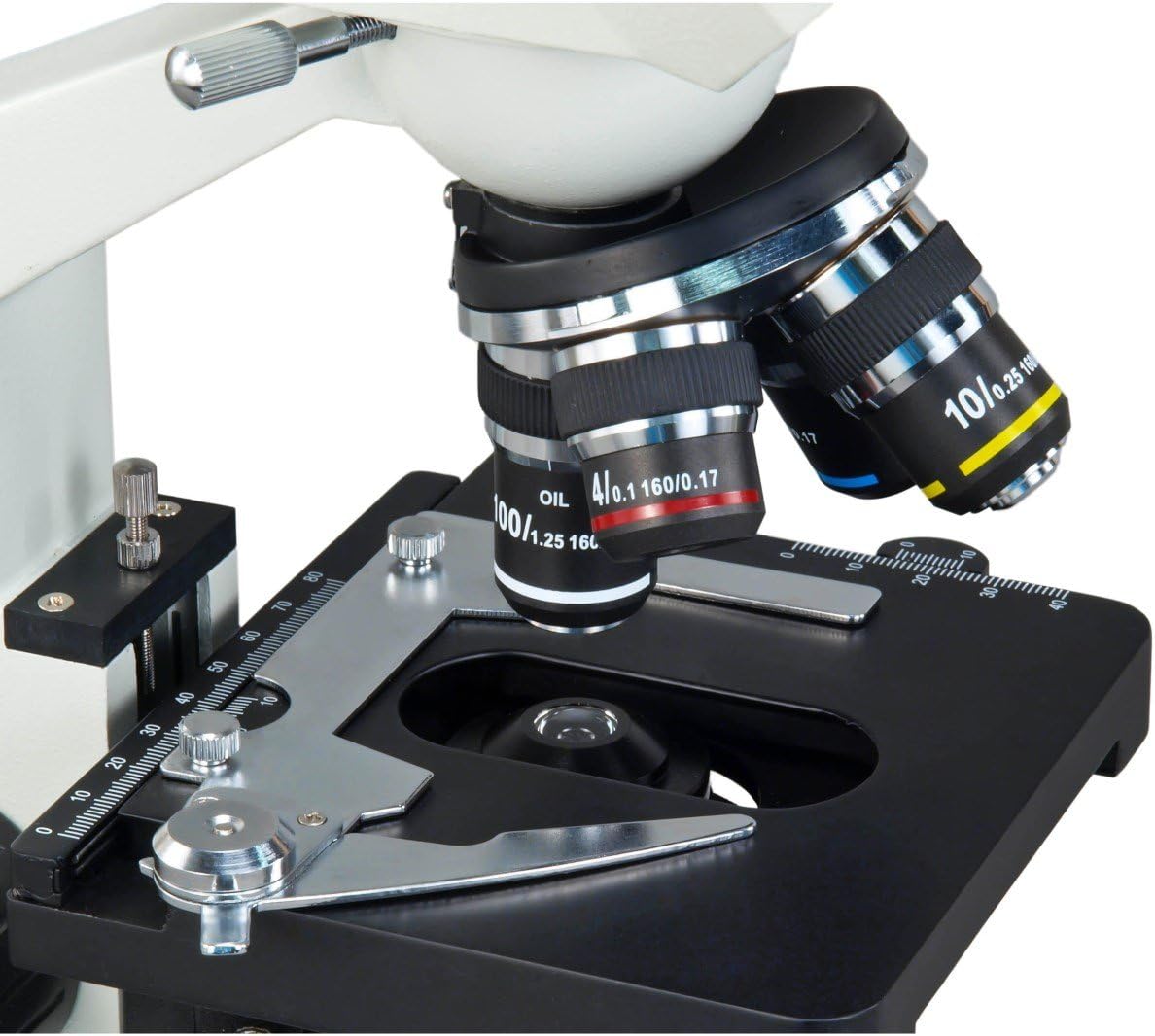

- Nosepiece: revolving quadruple; Stage: double layer X-Y mechanical stage with scales, size: 4-1/2inchx 4-15/16inch (115mm x 125mm); Stage X-Y stroke (travel range): 2-13/16inch x 1-3/16inch (70mm x 30mm); Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm and filter holder,rack and pinion adjustment; Transmitted (lower) illuminator: replaceable LED light, intensity adjustable
- Focus: coaxial coarse and fine knobs on both sides; Stage upward moving lock protects objectives and slides; All metal mechannical components; Power supply: AC/DC adapter, 100-240V
- Built-in digital camera: – Imaging device: 1.3 mega pixels, 1/2.5inch CMOS – Effective pixels: 1280×1024 – Maximum still image resolution: 1280×1024 pixels – Frame rate: 6 frames per second at 1280×1024, 10 frames per second at 1024×768 – Interface: USB2.0 ( 480MB/second) – SNR: >40dB – Software compatible with Windows and Mac OS X (Photo Booth)
- 5-year warranty against manufacturing defects
In stock
Additional information
| Weight | 3.74 kg |
|---|---|
| brand | OMAX |
| dimensions | 42.8 x 27.4 x 19.6 centimetres |
