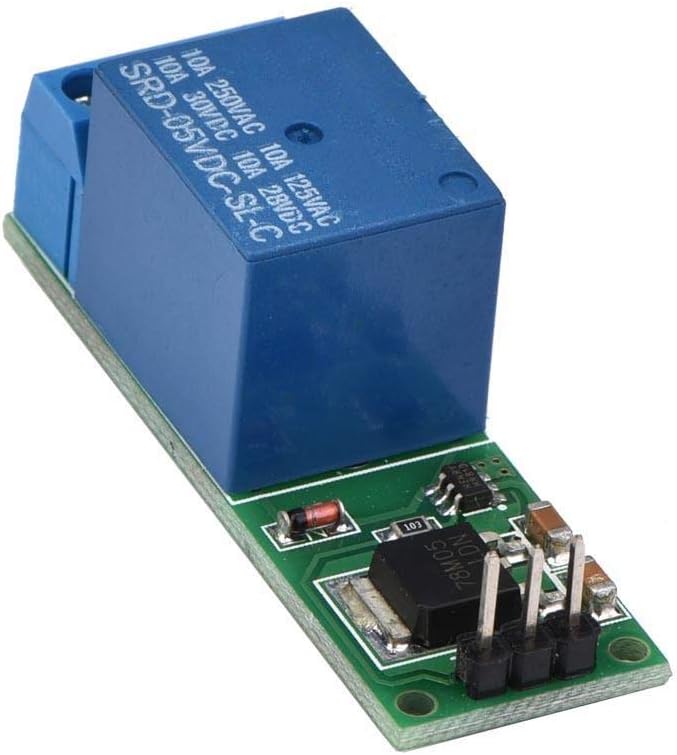

Oumefar Low Pulse Trigger Board, Mini 6-24V Flip-Flop Latch Relay Module Bistable Self Locking Switch

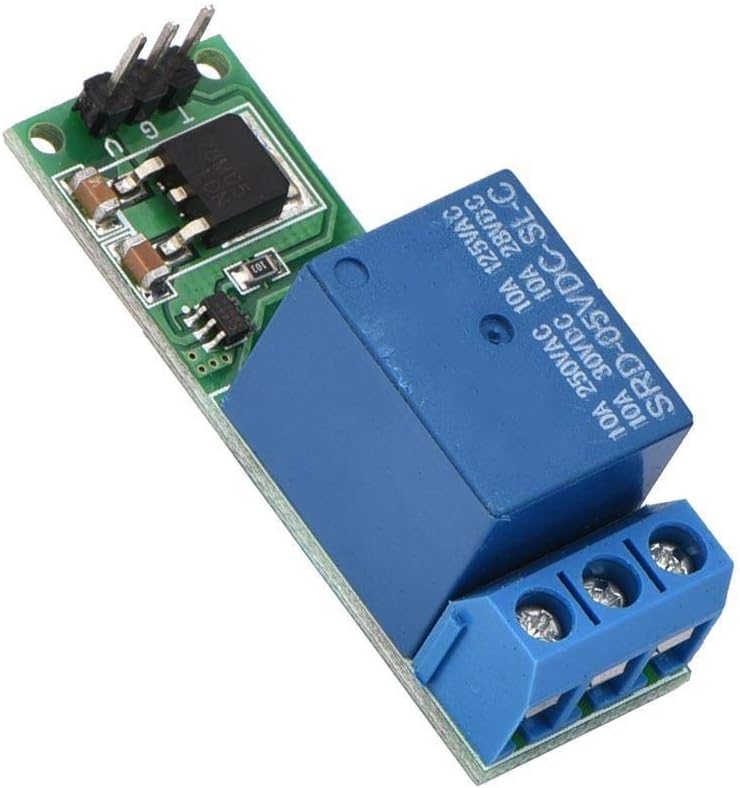

Oumefar Low Pulse Trigger Board, Mini 6-24V Flip-Flop Latch Relay Module Bistable Self Locking Switch - Image 2

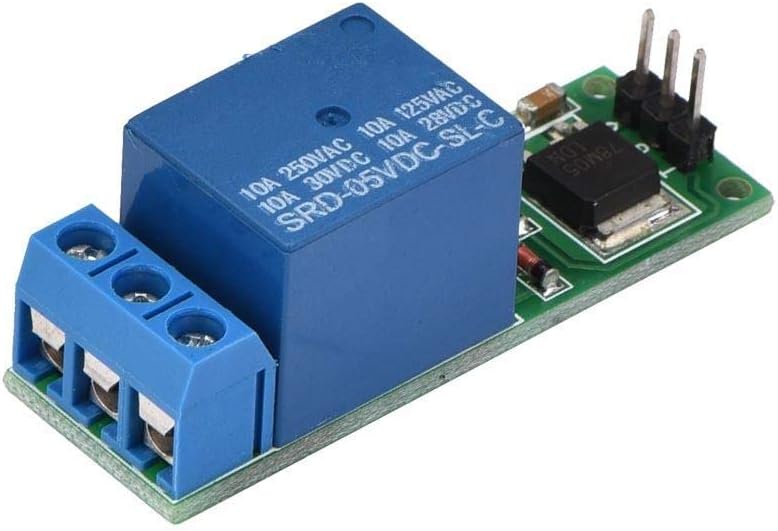

Oumefar Low Pulse Trigger Board, Mini 6-24V Flip-Flop Latch Relay Module Bistable Self Locking Switch - Image 3
Oumefar Low Pulse Trigger Board, Mini 6-24V Flip-Flop Latch Relay Module Bistable Self Locking Switch - Image 4
Oumefar Low Pulse Trigger Board, Mini 6-24V Flip-Flop Latch Relay Module Bistable Self Locking Switch - Image 5

Oumefar Low Pulse Trigger Board, Mini 6-24V Flip-Flop Latch Relay Module Bistable Self Locking Switch

$18.99

  • 【High-quality Trigger Board】: The Low Pulse Trigger Board is 100% brand new and has a high quality.
  • 【Great Durability Relay Module】: The Flip-Flop Latch Relay Module has adopted of high quality electronic components, and precision process, ensure for the durability.
  • 【Self-locking Trigger Board】: This Low Pulse Trigger Board is a bistable (self-locking) relay module that triggers once the relay pulls (and holds); Trigger again, relay release (and hold).
  • 【Operation of Relay Module】: By default, the Flip-Flop Latch Relay Module is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.
  • 【Widely Application Board】: The Low Pulse Trigger Board is widely used for automotive electronics,Industrial equipment,engine, LED,Smart home, Emergency lighting,MCU development board, etc.

In stock

— OR  —

— OR  —

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Features:

Specification:
Working voltage: DC 6-24v
Operating current: 60-70mA
Standby current: 1UA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: low pulse trigger
Weight: Approx.15g/0.5oz

Module interface:
1. VCC: positive power supply (VCC)
2. GND: negative power supply (GND)
3. T : Low pulse trigger
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface

Package list:
1 x Low Pulse Trigger Board

Additional information

Weight 0.014 kg
brand

Oumefar
dimensions

4.7 x 1.6 x 1.8 cm; 14 Grams
SKU: B08DKMMMD5 Category: Tags: ,
