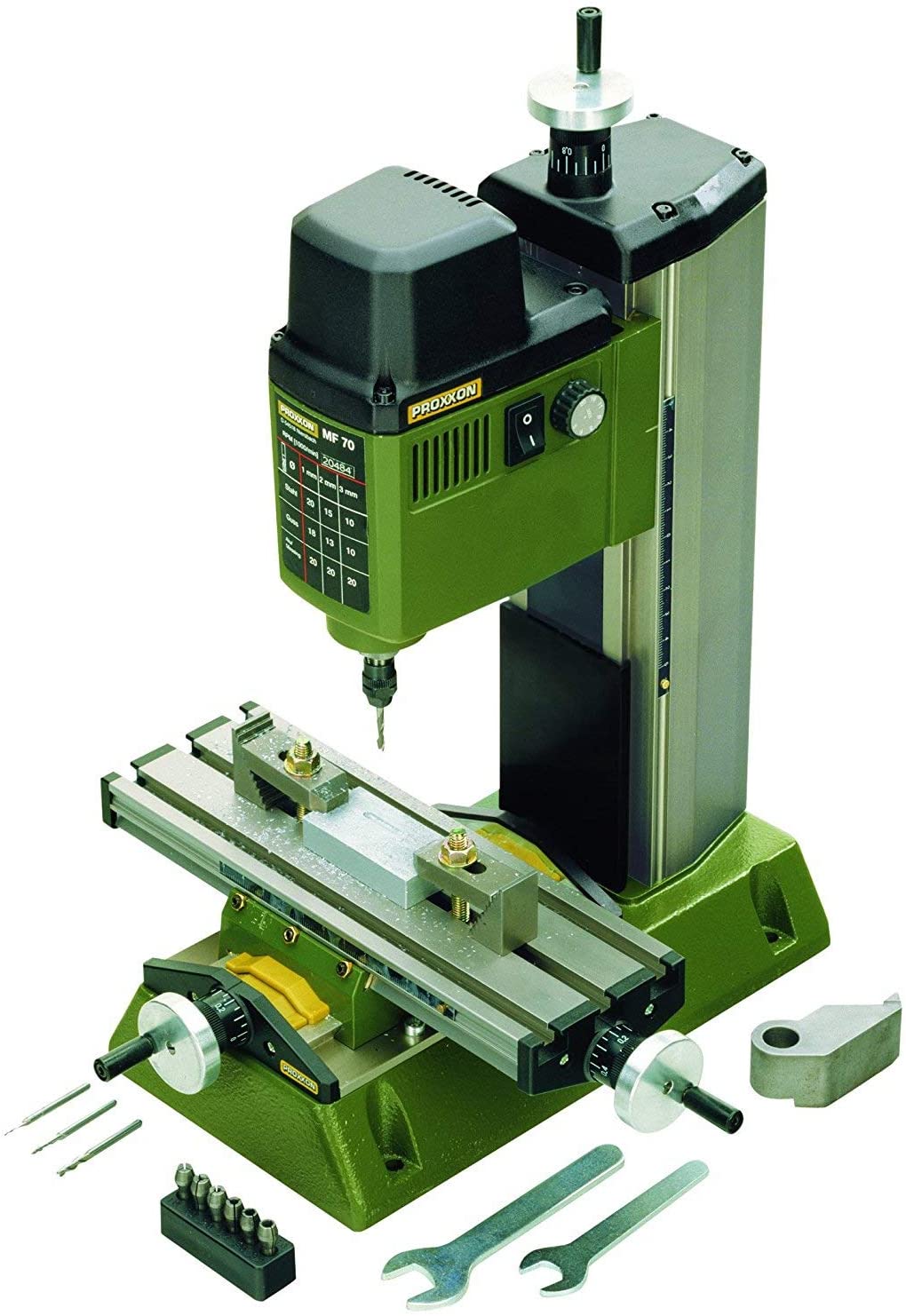

Stable grey-cast iron machine base, vertical guide and compound table. Free from play, readjustable dovetail gib in all axes. Die-cast aluminium arm housing, with 24-pin special motor (balanced). For vibration-free work at high speeds.
The triple slit, hardened steel MICROMOT collets cover 1 – 1.5 – 2 – 2.35 – 3 – 3.2mm. The table is fitted with 3 T-slots of the 12 x 6 x 5mm MICROMOT norm. An adjustable ruler scale eases the positioning of the workpiece.
Technical data:-230V, 100W, 50/60Hz. -Spindle speeds 5,000 – 20,000rpm. -Table 200 x 70mm with X-Y travel of 134 and 46mm respectively, with vertical travel 80mm. -Footprint size 130 x 225mm and overall height 370mm. -Weight approx. 7kg. -The clamping blocks depicted are included too, but not the workpiece! – Supplied complete with stepped clamp blocks of steel. – Table of stable aluminium. Both axes are fitted with adjustable dovetail slides. – Continuously variable speed from 5,000 – 20,000rpm, perfect for even the smallest milling cutter. – Stable cast iron base – MICROMOT steel collets, triple slit and hardened, from 1.0 to 3.2mm
Additional information
| Weight | 8.15 kg |
|---|---|
| brand | Brand: Proxxon Micromot |
