Specification: Condition: 100% Brand New Operating Voltage: 5-30V, support micro USB 5.0V power supply Frequency Range: 1Hz-150KHz Frequency Precision: 2% Signal Load Capacity: Output Current is within 8–30mA Output Range: default 5V V-pp (can be changed by external power) Environment Temperature: -30 ~70℃ Serial Port Control: Communication Standard:9600 bpsData Bit:8Stop Bit:1Verify Bit:noneFlow Control:none Weight: Approx. 9g / 0.3oz Size: Approx. 41 * 28 * 1.6mm / 1.6 * 1.1 * 0.1inParameter Setting: Module has 3-channel key:Set,Up,Down 1. By short press SET key, can shift display 4 parameter values (FR1:PWM1 frequency; dU1:PWM1 duty cycle; FR2:PWM2 frequency; dU2:PWM2 duty cycle); before shifting,there will be corresponding parameter name flashingPackage List: 1 * Wave Rectangle Signal Generator

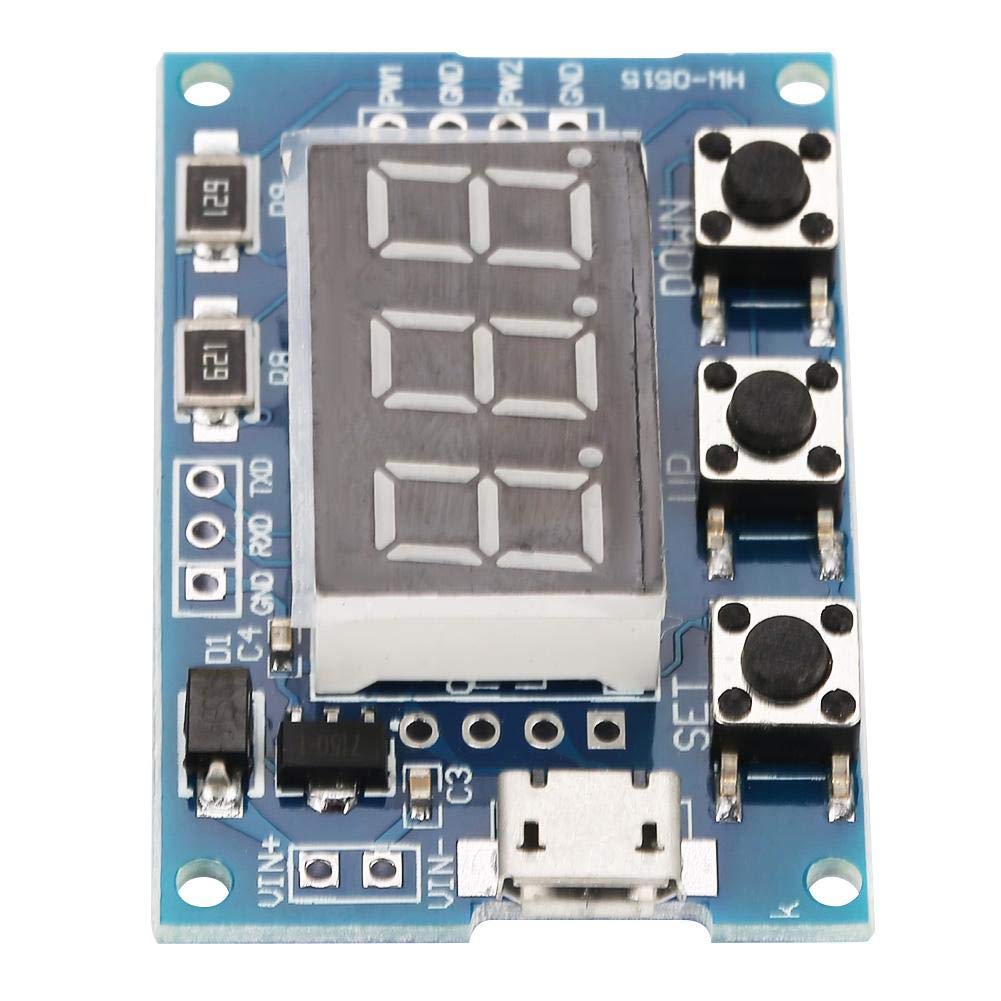

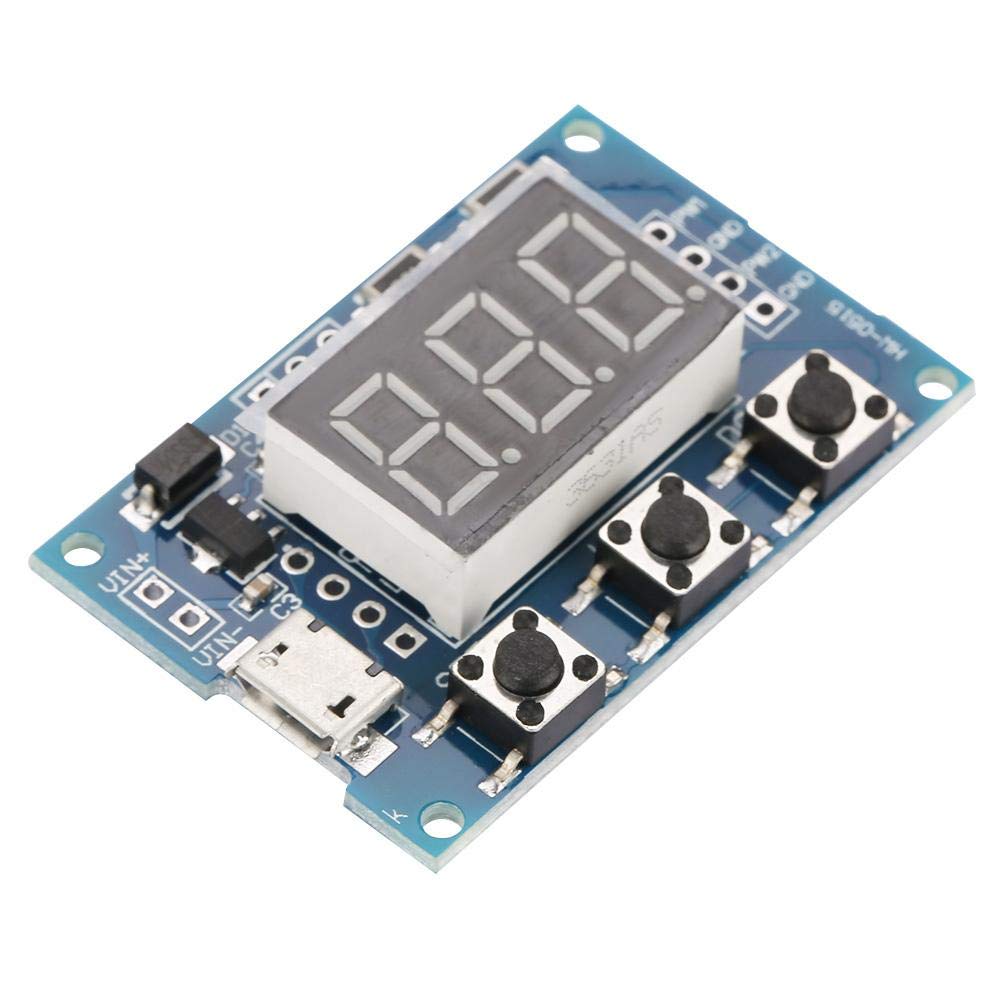

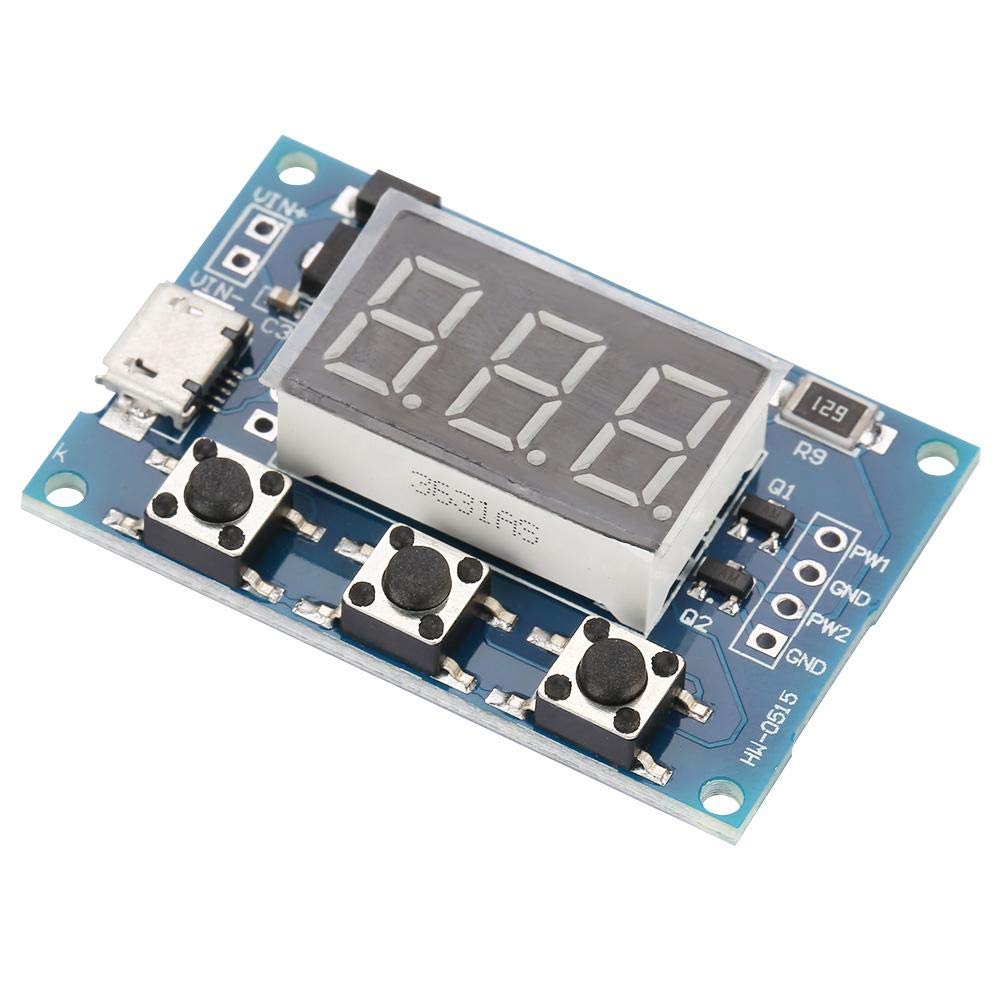

Keenso Wave Rectangle Signal Generator, PWM Generator Module 2 Channel PWM Frequency Duty Cycle Adjustable Wave Rectangle Signal Generator for Stepper Motor Driver
$21.99
- The PWM generator module has two independent PWM outputs that set the frequency and duty cycle.
- The adjustable signal generator has a wide frequency range and high precision.
- The adjustable square wave signal generator can communicate serially.
- A rectangular wave signal generator can be used to generate adjustable pulses and control related circuits.
- The rectangular signal generator uses a microcontroller to generate a pulse to produce an adjustable circuit associated with pulse control
In stock
Additional information
| Weight | 0.01 kg |
|---|---|
| brand | Keenso |
| dimensions | 3 x 4.5 x 1 cm; 10 Grams |
