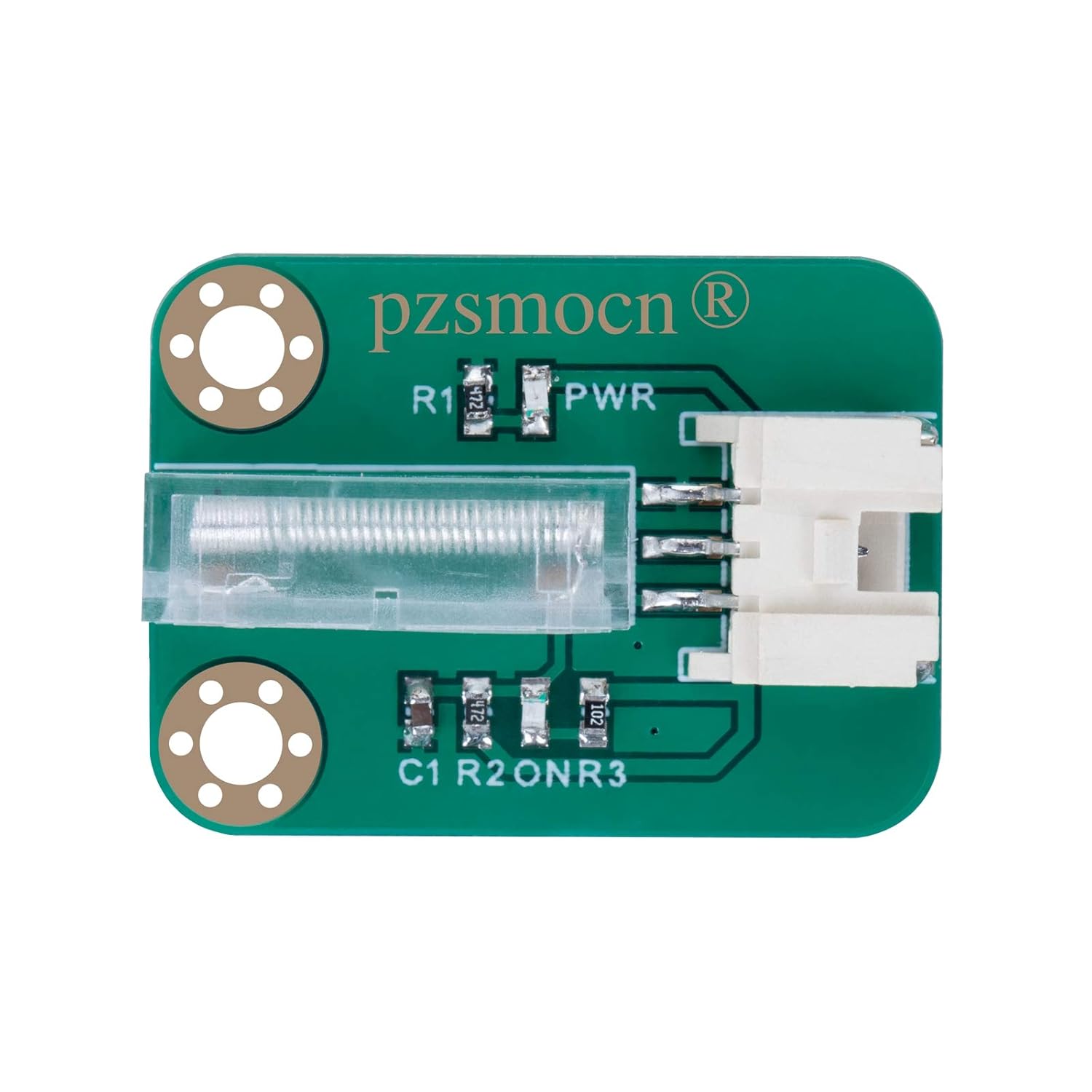

The vibration sensor is a digital sensor that is only sensitive to one-way manual swing. Adopt spring-type vibration switch, output high level when stationary, when the user shakes strongly in the specified direction once, the module outputs a low level pulse, and the onboard indicator light flashes at the same time. Thanks to the unidirectional sensitivity characteristics of the vibration switch and the corresponding filter circuit, medium-strength collisions or vibrations (such as drops, shocks) will not trigger an interrupt signal by mistake, and have strong anti-shock interference capabilities. Just shake and wave, all kinds of switch control are in your hand.
The module comes with a JST PA SMT 3-Pin horizontal sticker and a buckle socket. Also, a JST PA to DuPont female 3-Pin single-head wire is offered to facilitate wiring. Length: 210mm, buckle attached.
FEATURES
– Sensitive in one direction, strong anti-impact interference, preventing false triggering – Compatible with 3.3V/5V controller – Exquisite and compact, easy to install
SPECIFICATIONS

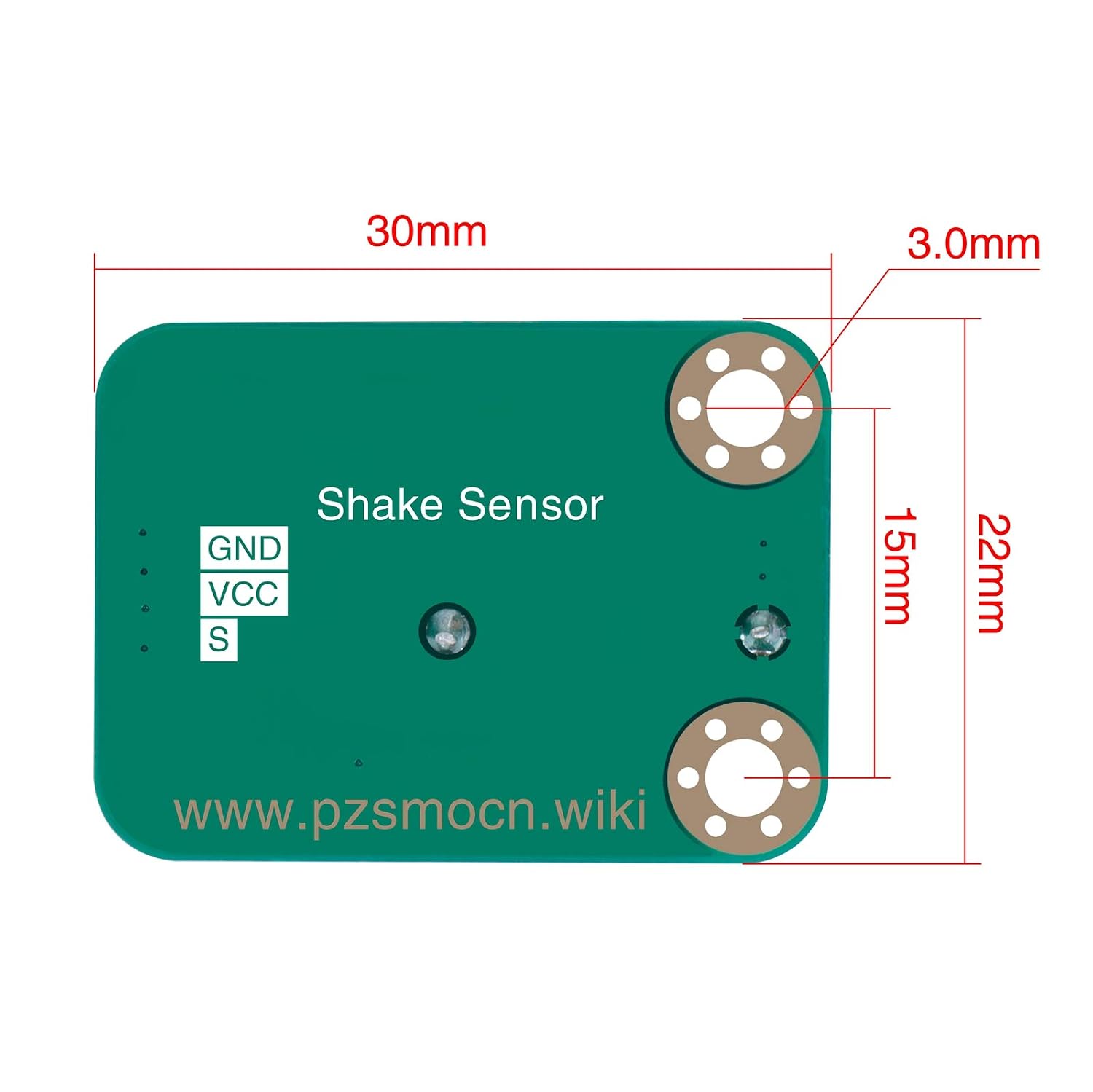

Sensor Specifications: Input Voltage: 3.3V-5.0V Switch Life: more than 200,000 times Communication Interface: JST PA SMT 3-Pin interface Dimensions: 30mm * 22mm Mounting Hole Size: 3mm Installation Hole Spacing: 15mm

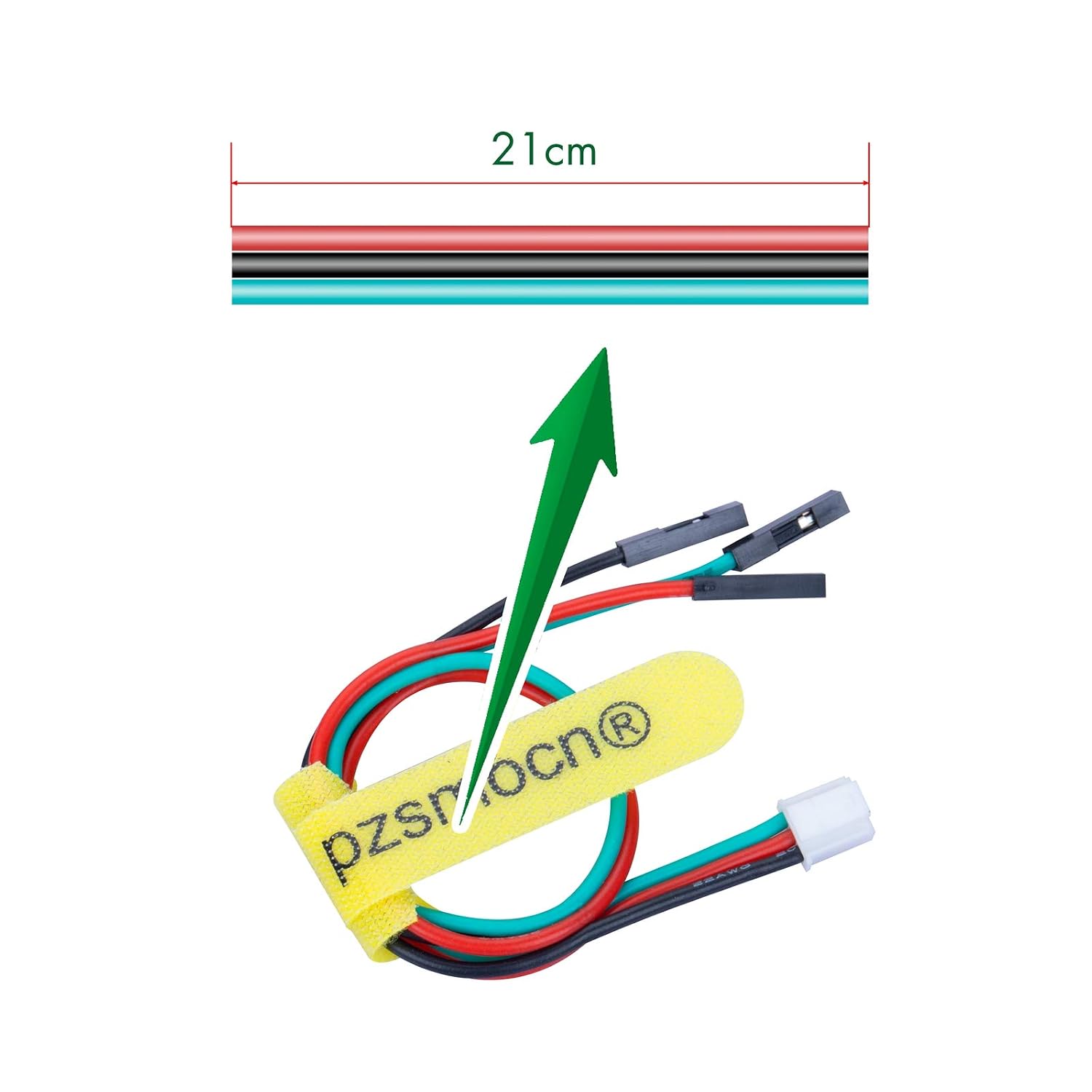

Wire Specifications: Withstand Voltage: less than 50V Withstand Current: less than 1000MA Length: 21CM Wire Sequence: Black-Negative power supply, Red-Positive power supply, Green-Digital signal output (Stand still – High level, Shaking – Low-level pulse)
PACKAGE CONTENT
1 * Digital Shake Sensor 1 * JST-PA to DuPont 3P Wire
Pzsmocn: Digital Shake Sensor, Spring Type Vibration Switch, Compatible with Raspberry Pi and Arduino Board. Suitable for Applications That are Sensitive to One-Way Manual Swing, rarely false trigger.
CAD $46.99
- Adopt spring-type vibration switch, output high level when stationary, shake once in one direction, output a low level pulse, and the onboard indicator light will flash at the same time.
- Unidirectional sensitive characteristics and corresponding filter circuit, medium-strength collision or vibration will not trigger an interrupt signal by mistake, and have strong anti-shock and anti-interference ability.
- Switch life: more than 200,000 times. compatible with 3.3V/5V controllers, suitable for Arduino and Raspberry Pi motherboards and is used for shaking-switching control.
- Onboard snap-on JST-3P socket is easy to plug and unplug, and is equipped with a JST to DuPont female 3-Pin single-head Wire, length: 210mm.
- Wiki:wwwocn/index/Shake_Sensor
In stock
Additional information
| Weight | 0.01 kg |
|---|---|
| brand | pzsmocn |
| dimensions | 7 x 5 x 1.5 cm; 20 Grams |
