RS232 DB9 male to 9Pin quick connect terminal solder-free adapter, quick wiring via 9-pin spring-loaded crimp terminals without the need for special tools, allowing you to take the hassle out of soldering. Suitable for developing input/output configurations for defined serial communication systems. Widely used for various pin connections for computers, plc, modems, barcode machines, CNC machines, industrial control equipment etc. where serial communication is required.
Interface A: RS232 DB9 male
Interface B: 9Pin spring crimp terminal
Design: Solderless Quick wiring
Package: 1*RS232 DB9 male to 9 pin Terminal Connect Adapter
QIANRENON RS232 DB9 Quick Connect Solderless Adapter DB9 Male to 9 Pin Spring Terminal Crimp Connector, for Connection to Serial Communication Interfaces
$32.99
- Free Definition RS232 DB9 to 9 pin quick connect terminal adapter for developing input/output configurations for defined serial communication systems.
- Spring Crimp Solderless RS232 DB9 male solderless adapter with 9-pin spring crimp terminal for fast wiring, no special tools required, saving you from the hassle of soldering.
- ApplicationDB9 RS232 serial adapter solderless module board, widely used in computers, plc, modems, barcode machines, CNC machine tools, industrial control equipment, etc. need to use serial communication of various pin connections.

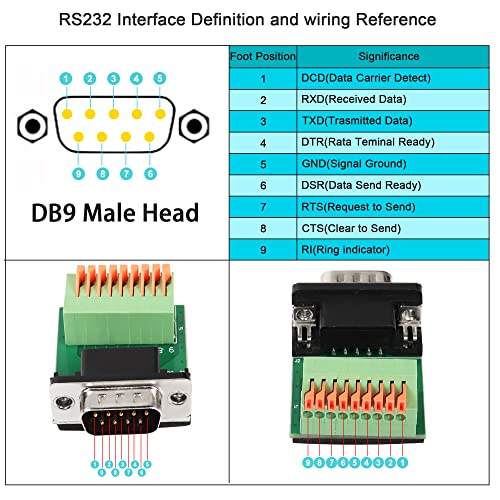

- Clearly marked RS232 DB9 solderless crimp connector, all pins are clearly marked with a numerical serial number on the DB9 male connector and on the PCB. Please check carefully before use.
- Protection RS232 DB9 male to 9Pin pin solderless adapter with UVA foam glued to the bottom to effectively protect the PCB solder joints and avoid damaging the conductivity and insulation of the PCB.
In stock
Additional information
| Weight | 0.01 kg |
|---|---|
| Brand | QIANRENON |
