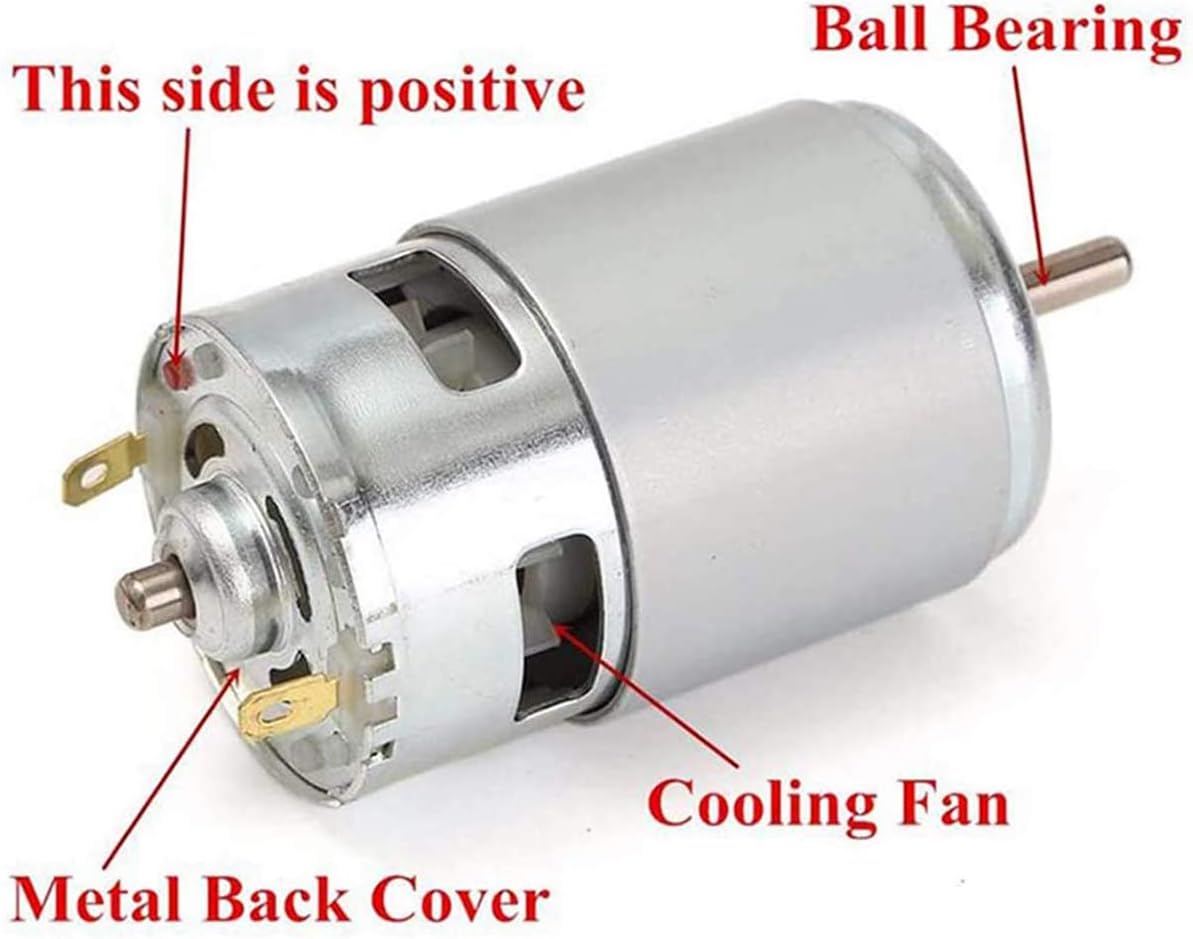

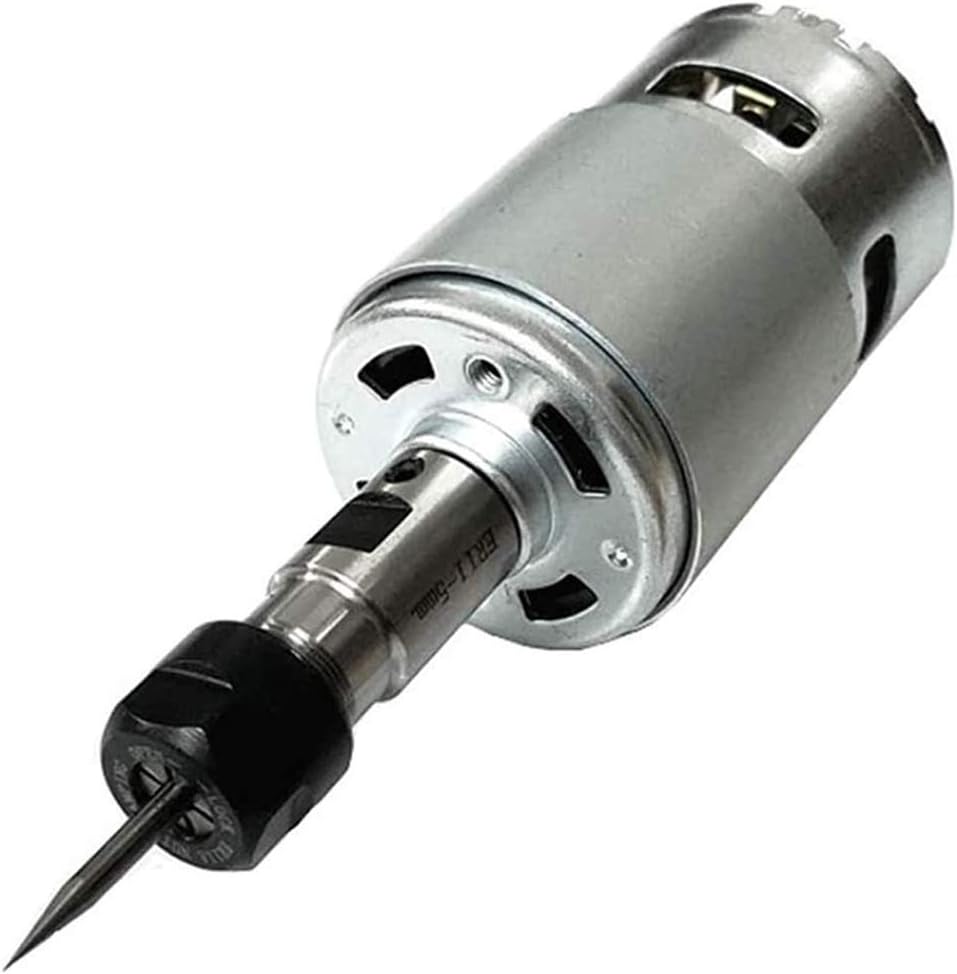

The new 775 motor for electric tools Rated voltage: 12V 12V load current: 5A (starting current :above 10A) Power: 100W No-load power: about 12W Shaft : 5mmMotor step height : 5mm Motor stepped diameter : 17.4mm Axis motor shaft length: 16mm Terminal spacing: about 34mm Mounting hole pitch: about 29mm Installation hole diameter: M4 ER11 Extension rod: Model : C16-ER11-35L Body length : 34mm contain the nut length is 40mm Nut : ER11A type (the Hexagonal nut largest outer diameter is 19mm). Shaft hole : 5mm (-0.02mm) ,when installing need heating expansion. ER11 Collet Material: High-grade 45 carbon steel Total height: about 18.5 mm Outer diameter (Max): about 11.5 mm Inner diameter (Max): 3.175 mm Package Contents: 1 x 775 Spindle motor 1 x ER11 extension rod 1 x ER11 3.175mm Collet 1 x 3.175mm bit

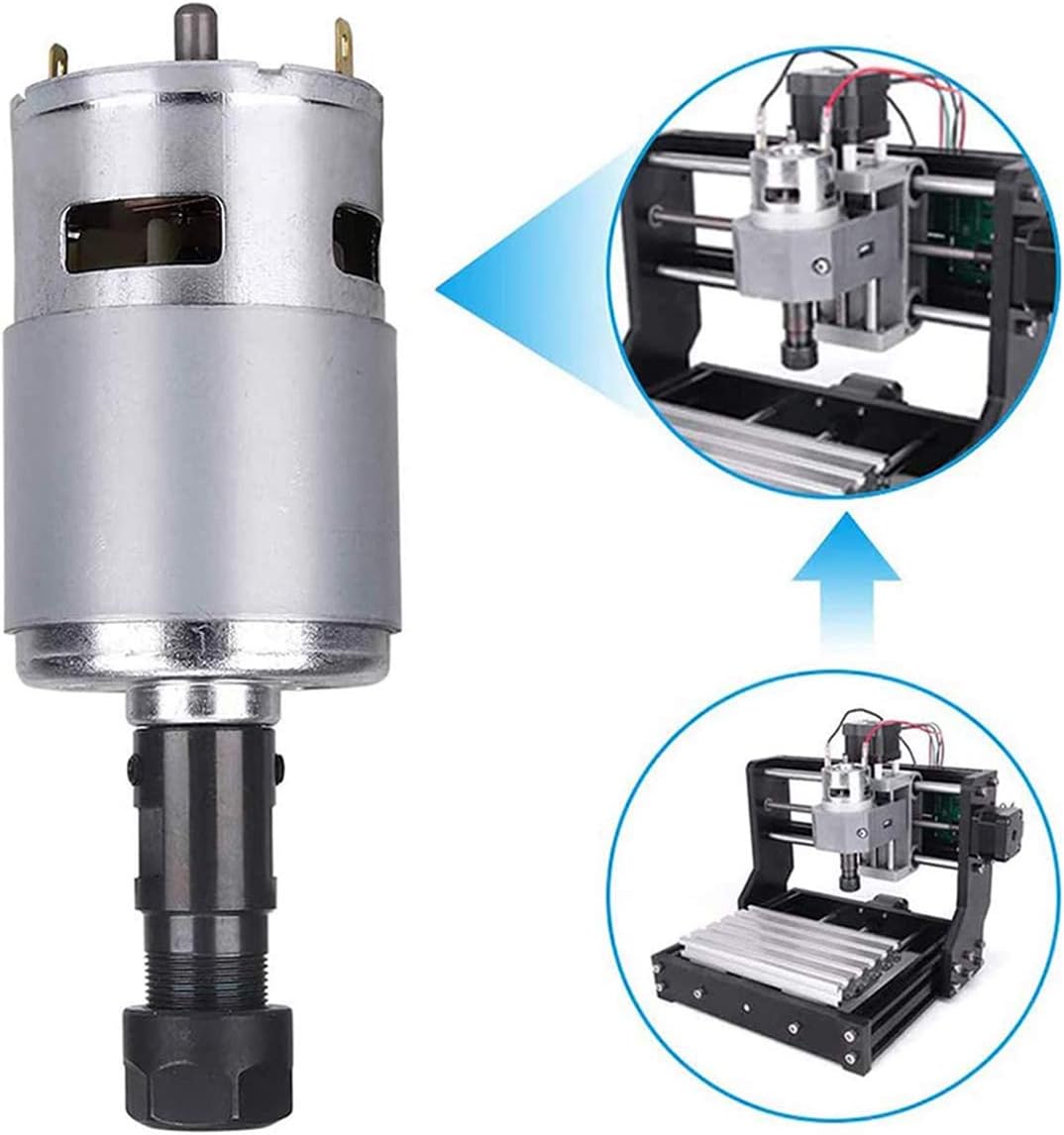

QPX 775 ER Motor High Speed Large Torque DC Motor Engraving Machine Spindle Motor 12V
$66.99
- Input voltage: 12V,Power supply current: above 10A ,Collet specifications: ER11,Speed: about 12000 rev / min.
- Motor length : 67mm (excluding shaft),Motor diameter : 45mm (including housing).
- Shaft hole of the ER11 extension rod : 5mm (-0.02mm) ,when installing need heating expansion.
- Packing Contents : 1pcs 775 Spindle motor + 1pcs ER11 extension rod + 1pcs ER11 3.175mm Collet +1pcs 3.175mm bit.
- Friendly reminder：This is a high precision extension rod. It needs 300°~400° high frequency heating during assembly. The principle of thermal expansion and cold shrinkage will expand the hole. The spindle will be placed in it, the top wire will be locked, and the knife sleeve will be completely fixed after cooling.
In stock
Additional information
| Weight | 0.58 kg |
|---|---|
| brand | QPX |
| dimensions | 17.78 x 11.68 x 9.65 cm; 580 Grams |
