Specification:

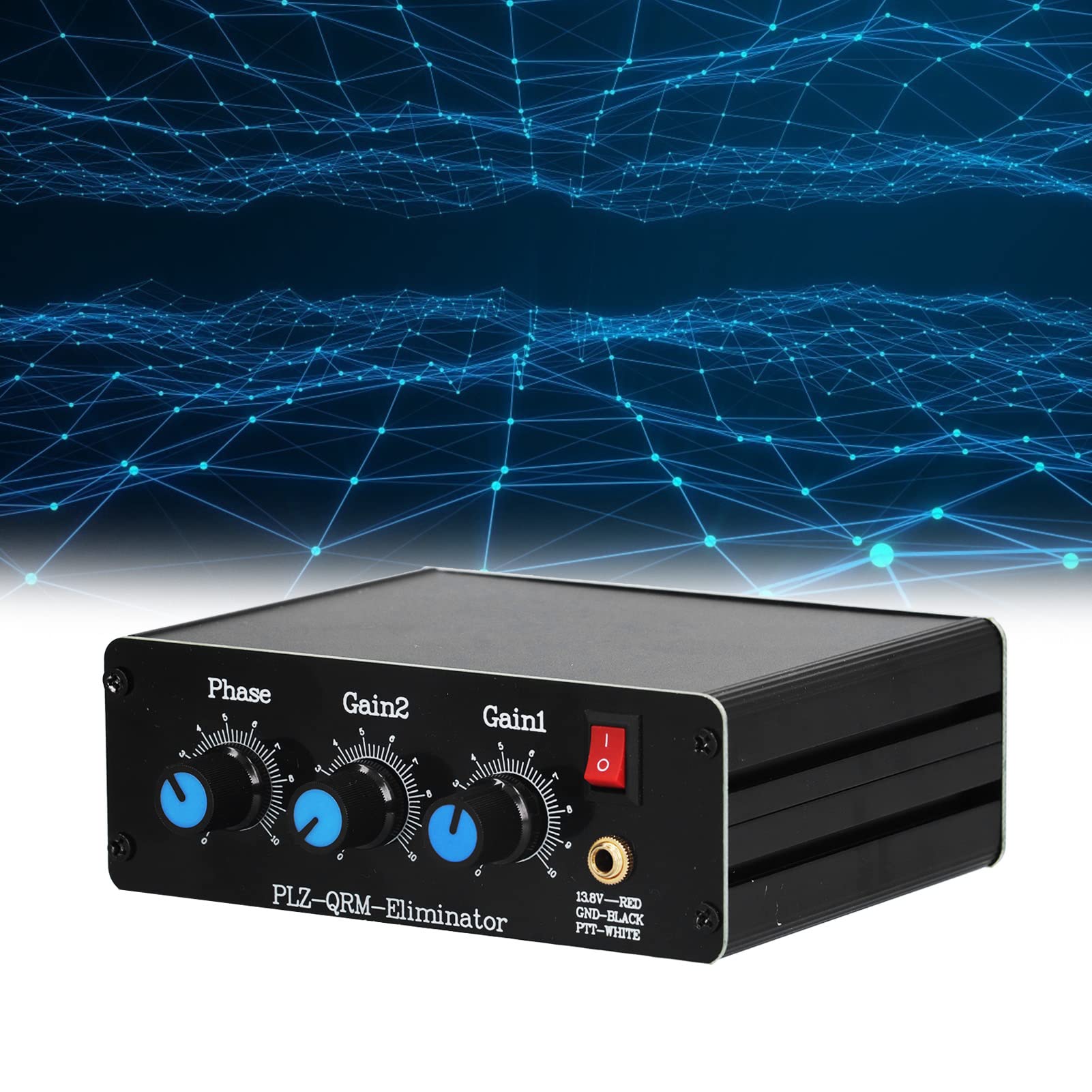

Item Type: QRM Eliminator
Shell Material: Aluminum
Front and Rear Baffles Material: Epoxy Glass Fiber Board FR4
Colour: Black
Frequency Range: 1.8 MHz-30 MHz
Size: Approx. 120 x 95 x 45mm / 4.7 x 3.7 x 1.8in
Connection: 3xBNC is used for main antenna, auxiliary antenna.
RCA Jack for PTT
Power Interface Size: Approx. 5.5 x 2.1 mm / 0.2 x 0.1in Power Supply
Power Required: 13.8V 150mA
Product Description:
Connect:
Transmit the Antenna to “MAIN”
The auxiliary antenna is “AUX”
Almost all antennas are available, and the local QRM can be received with a bad antenna. You can use another HF antenna, or even a 2m antenna, to connect only the center pin or a few meters of wire behind the shelf of the shed. When the GAIN1 knob is turned fully counterclockwise, the best result can be obtained when the noise signal level on the two antennas is the same, if not, try to change move the second antenna. To test the signal, simply connect each antenna directly to the radio, and then insert the QRM Eliminator.
Package List:
1 x Eliminator
1 x Power Cable
1 x English User Manual
Note:
There is a 0.5‑1mm deviation between the dial and the knob pointer
