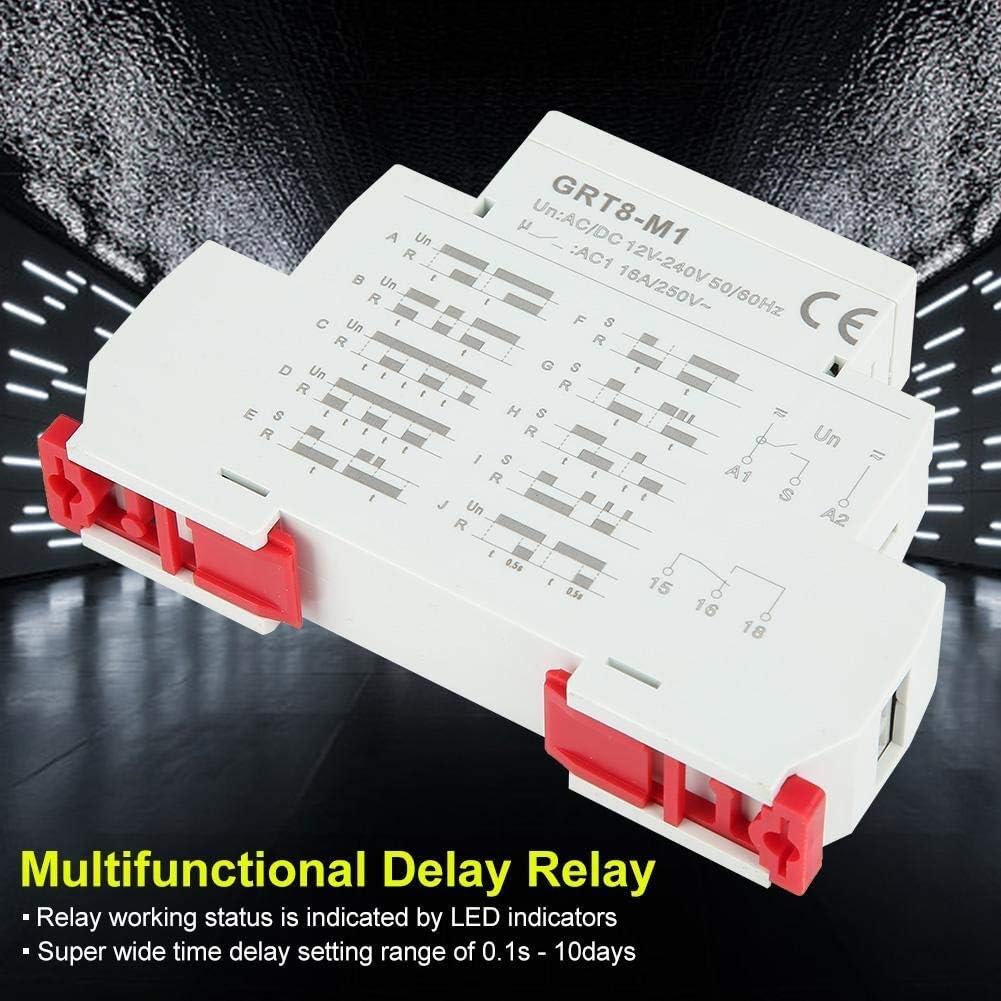

Features:
1. This is a multifunctional time relay and time delay can be set by panel knob.

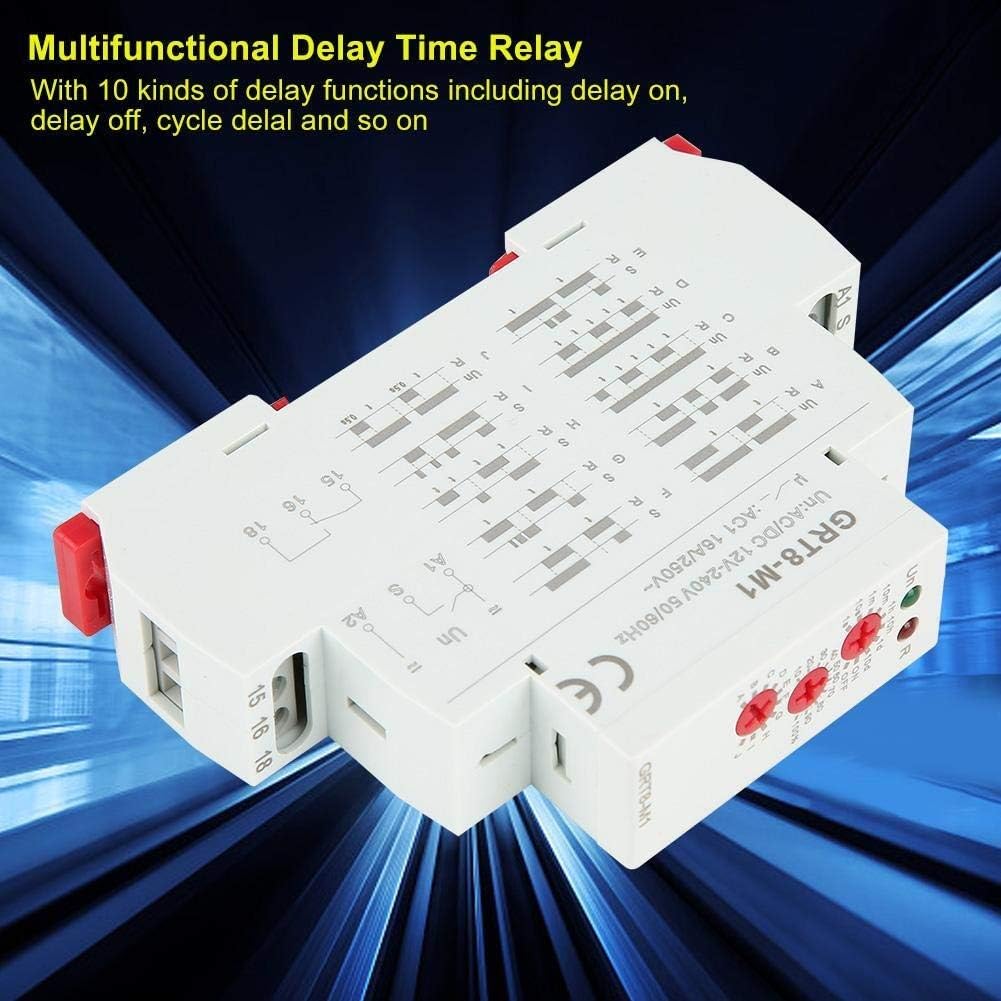

2. With 10 kinds of delay functions including delay on, delay off, cycle delay and so on,Super wide time delay setting range of 0.1s – 10days.
3. Relay working status is indicated by LED indicators,with super small volume, this relay can be mounted on 35mm DIN rail.
4. This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.
5ity assurance, perfect after-sales system, worry-free shopping,if you have any questions, please contact us in time, reply within 24 hours.
Specification:
Rated power supply voltage: AC/DC 12V~240V (50-60Hz)
Power terminal: A1-A2
Power consumption: AC0.09-3VA/DC0.05-1.7W

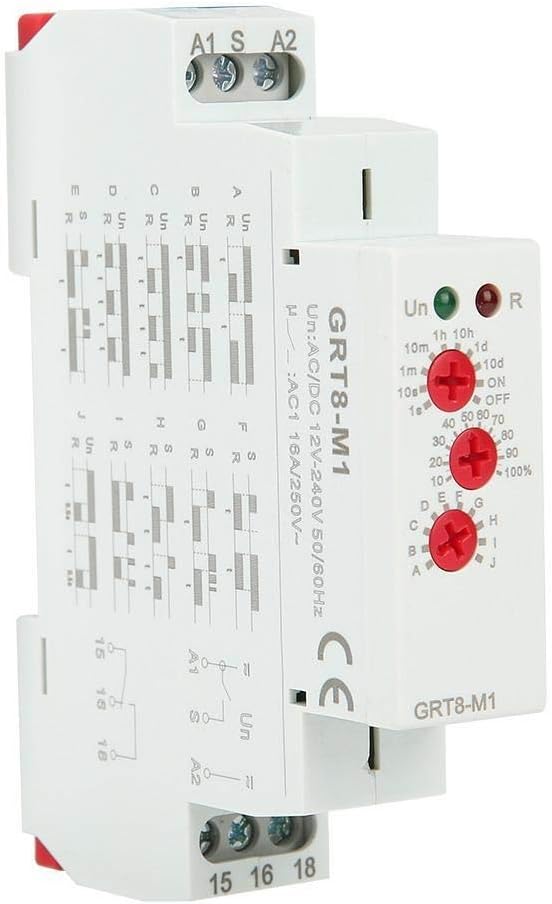

Setting method: knob
Setting accuracy: 10%

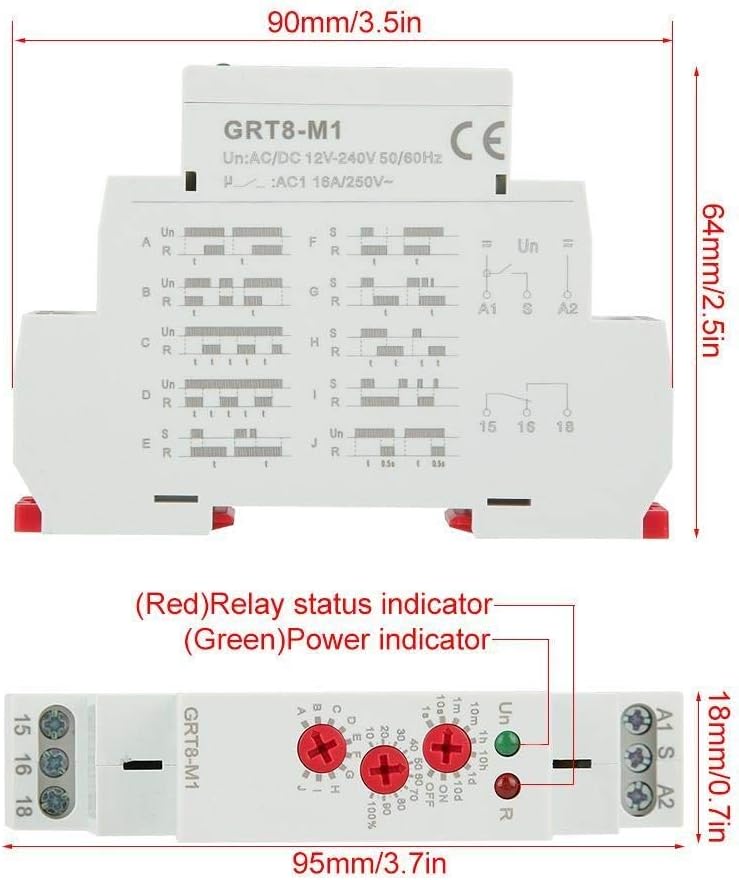

Power indicator: Green LED
Delay range: 0.1s-10 days, normally open, normally closed
Repeated accuracy: 0.2%
Temperature fluctuation error: 0.05%/℃, at = 20℃
Output contact: 1 x SPDT, 250VAC/24VDC
Minimum switching power: 500mW
Output relay indication: red LED
Mechanical life: 1×107
Reset time: Max 200ms
Working temperature: -20℃~55℃
Mounting method: 35mm DIN rail
Mounting altitude: ≤2000m
Weight: Approx. 75g/2.6oz
Package list:
1 * Multifunctional Delay Time Relay
