Notes:
★This product is powered by POE and requires an external 802.3AF standard 48V POE switch.
★This camera defaults to 5MP & H.265, if your NVR does not support 5MP or H.265, you can change our camera to 1080P (2MP) and H.264.

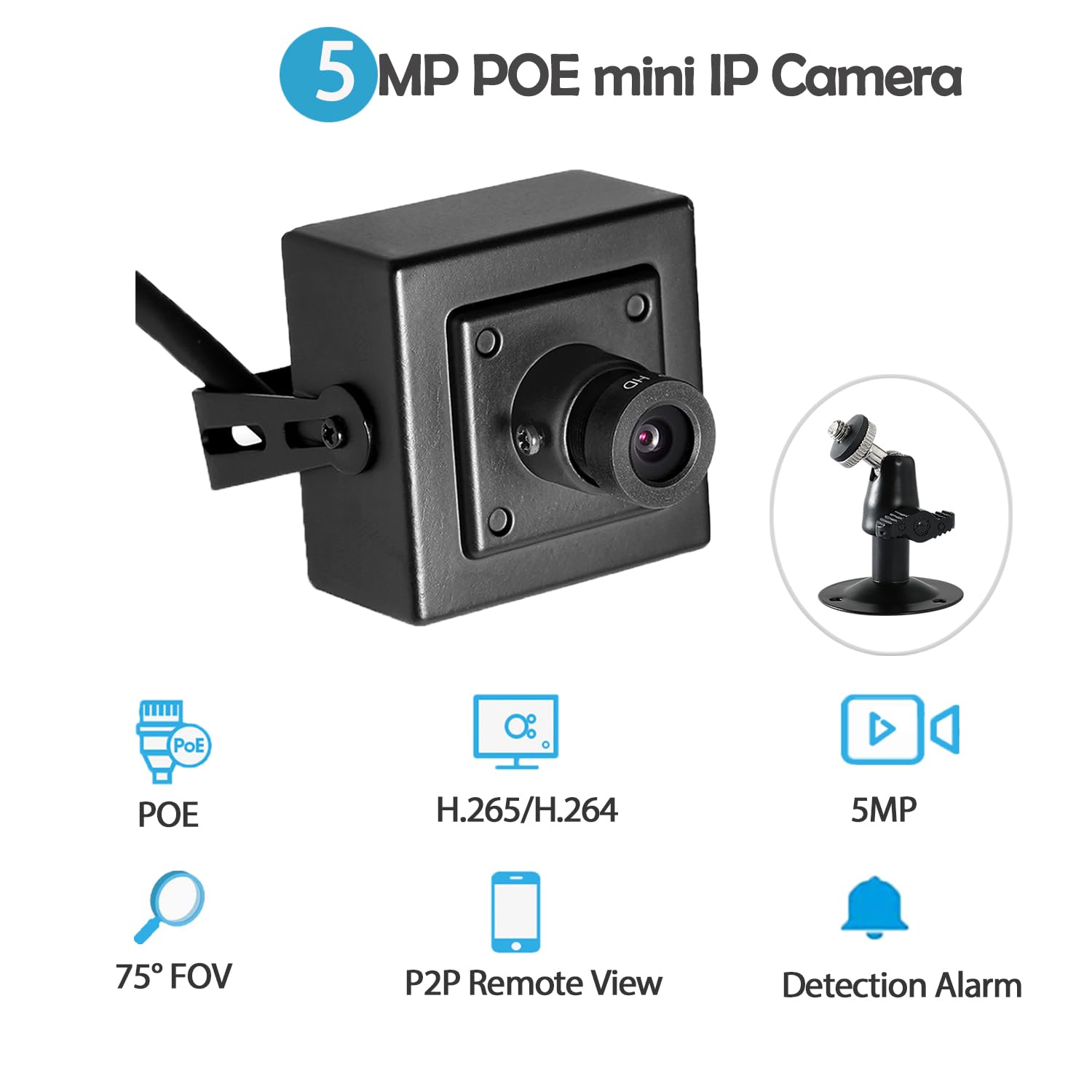

☆ 5MP 2880*1616P resolution 1/3” CMOS Sensor
☆ It also supports H.264 encoding, which can be compatible with both H.264 and H.265 devices
☆ Support iPhone, Android smartphone
☆ Support POE, can also be used as non-POE
☆ With auxiliary power interface, it can be used like a non-POE network camera
☆ Support motion detection and alarm function.
☆ P2P remote viewing
☆ Adjustable Wall Mount Bracket
☆ Support the web interface of IE6.0 and above browsers
☆ Easy to operate
Camera
Model: I706-P-B-HS
Resolution: 2880 x 1616P 5.0 megapixel camera
Sensor: FH8852V200+GC5053
Minimum illumination: 0.01Lux @(F1.2, AGC ON)
Frame rate: 5mp/25fps
Shutter: 1/25 sec – 1/100,000 sec
Lens: 3.6mm
Lens mount type: M12
Compression format: H.264 / H.265
Compression rate output: 128 Kbps~8Mbps
Storage: NVR or PC
IP address: dynamic (default)/static
Intelligent alarm: motion detection, email alarm
Supported protocols: HTTP, TCP/IP, RTSP, RTP, UPNP, SMTP, DHCP, DDNS, DNS, FTP, NTP
Input Protocol: Standard NVR o nviif Port
NVR O NVIIF port: 80
General functions: dual stream, password protection, video hiding
Ethernet: 10M / 100M mbps Ethernet (RJ-45)
general
Operating temperature: -25°C~60°C
Working humidity: 10%~90%
Power supply: POE
Dimensions (cm): 5.3 x 4.5 x 4cm
Weight: 0.2kg
Package Contents:
1* camera
1* user manual
1* Bracket
1* screw set
