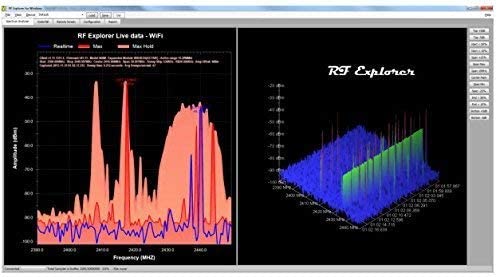

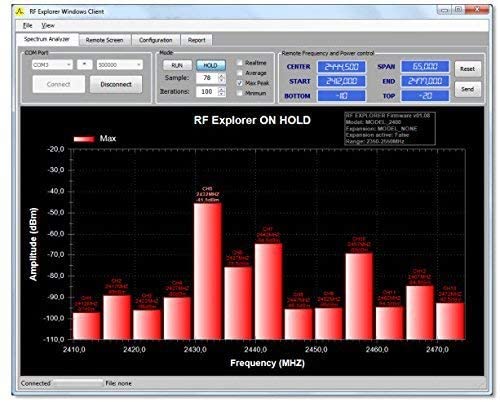

This cost efficient model can measure up to 2485 MHz and all ISM frequency bands. With great LCD graphics this analyzer is sure to meet you needs. Designed for all ISM frequency bands, this highly accurate RF handheld spectrum analyzer fits all of your needs at a low cost. It can be used in and outdoors. It is sturdy and compact and comes with a solid aluminium case, a high capacity LiPo rechargeable battery that lasts for 16 hours, free PC software, different functional modes, and an integrated RF Signal Generator. Weight: 185g Size: 113x70x25 mm.

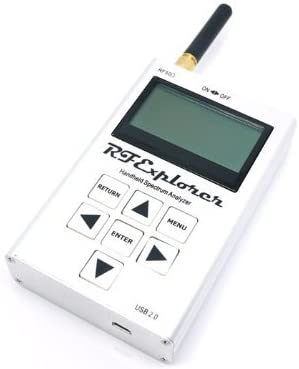

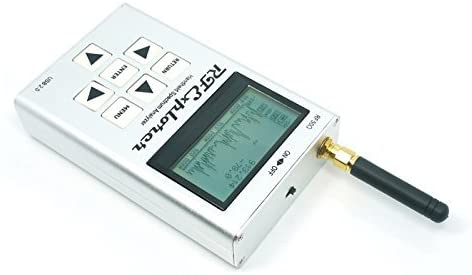

RF Explorer 2.4G Model – Handheld Spectrum Analyzer
$439.99
- Make sure this fits by entering your model number.
- Frequency band: 2400-2485 MHz ; Frequency span: 2-85 Mhz
- Graphics LCD 128×64 pixels, great visibility outdoors ; Frequency resolution: 1Khz
- Standard SMA 50 ohms connector, a matching antenna is included ; Amplitude resolution: 0.5dBm
- Dynamic range: -105dBm to -15dBm ;Absolute Max input power: +5dBm;Avg noise level (typical): -100dBm
- Frequency stability/accuracy (typical): +-10ppm ;Amplitude stability and accuracy (typical): +-3dBm
In stock
