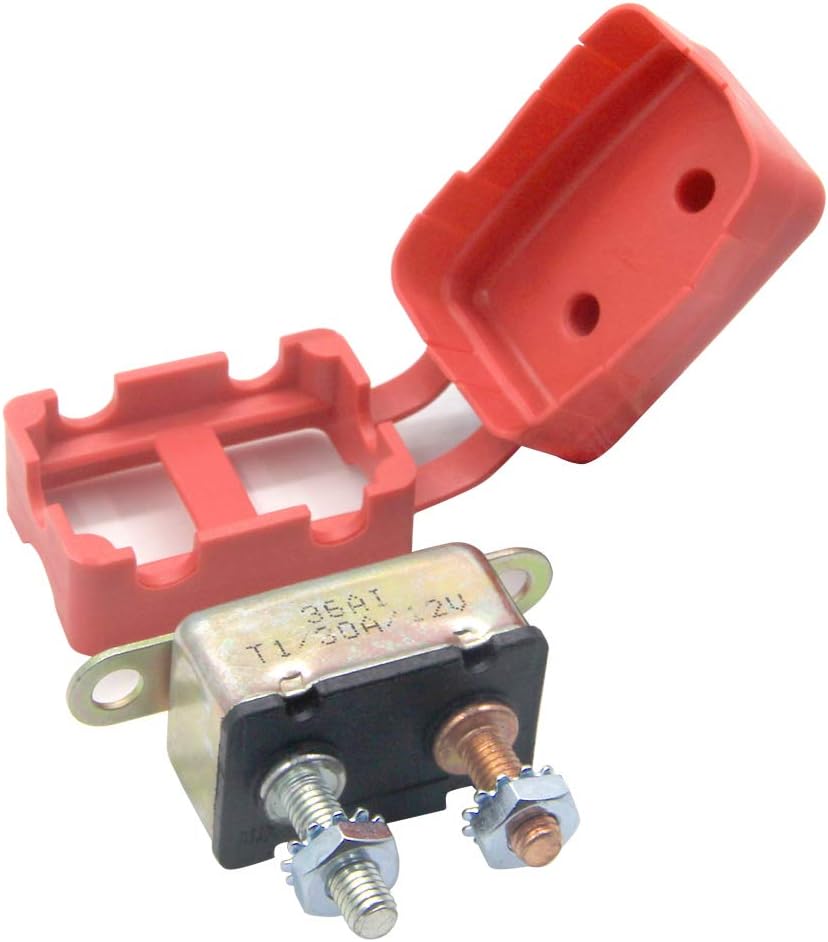

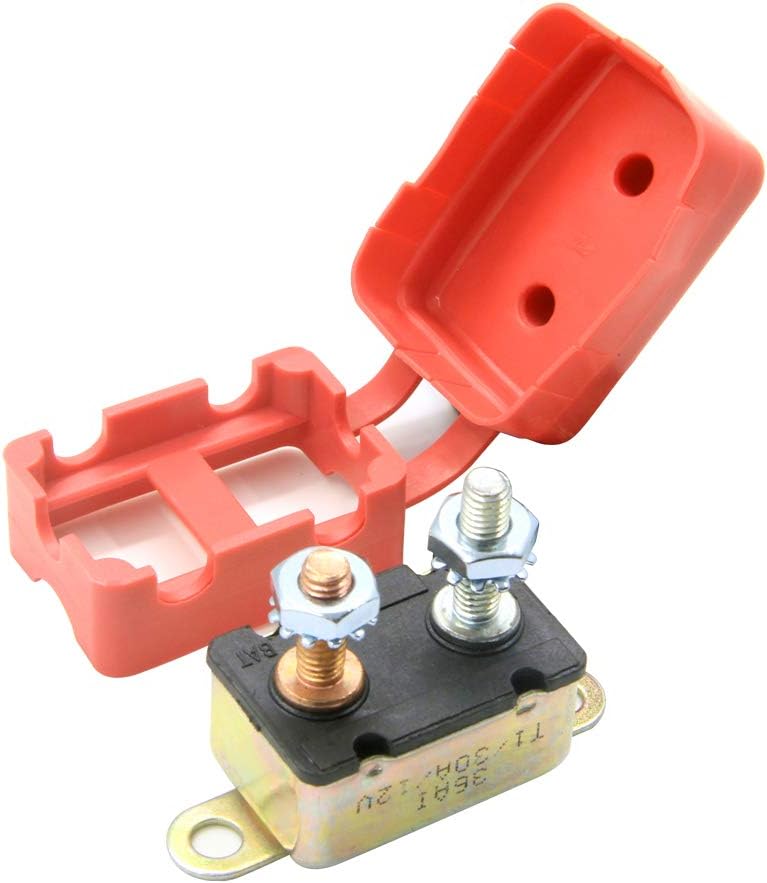

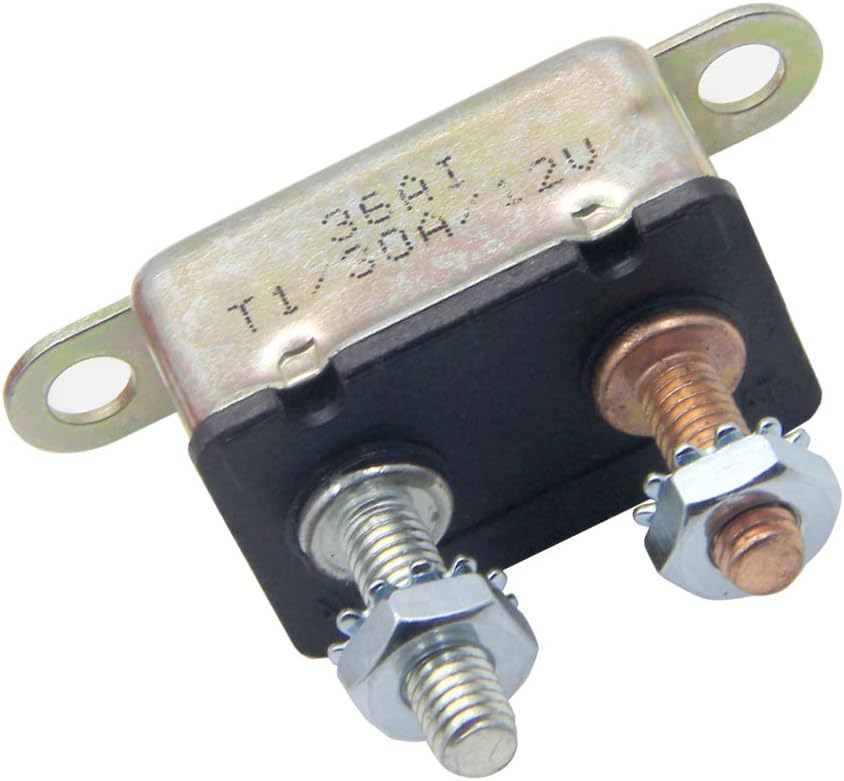

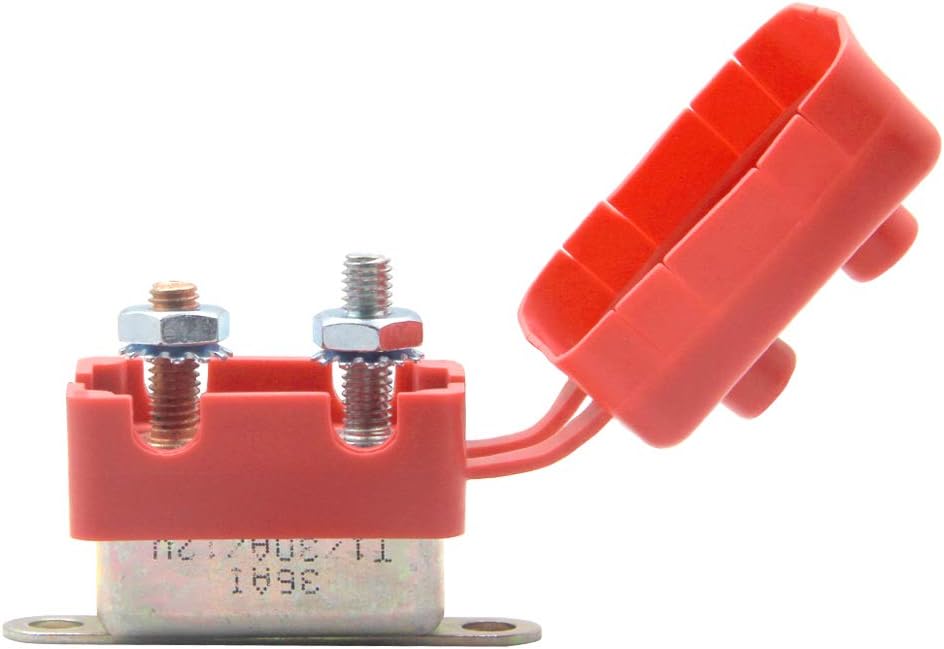

RKURCK 6-28V 30 Amps Circuit Breaker Automatic Reset for Automotive RV Marine Boat with Protective Red Boot Cover 30A

Description: √ Stud Type I Resettable Circuit Breaker 30 Amp √ Mounting Style: In-Line Bracket Heavy-duty housing cover √ Push-to-reset operation only disconnects when tripped √ IP64 water resistant boot protects against dust and splashing water √ For use in electric brake set ups, auto, caravans and more √ One copper post and one plated terminal √ Battery side connects to the copper side and the plated side connects to your accessories generally take the place of a fuse but with the advantage of resetting itself,Ideal in applications where what is being connected could have a short circuit or a momentary short. √ The red circuit breaker boot insulates your circuit from shorting out by protecting it from the elements in power leads and automotive applications. Specifications: – Meterial: metal and plastic – Reset Method: Type I – Automatic – Voltage 6-28V DC – Reset Type T1, Auto Reset – Interrupt Capacity 2.5kA @ 12V DC – Dimension 1.248 x 0.693 x 0.8 inch – Termination #10-32 thread – Body Metal Cabinet – Mounting Parallel (Lengthwise) Mounting Bracket – Operating Temperature -40oC (-40oF) to 85oC (185oF) – Storage Temperature -40oC (-40oF) to 125oC (260oF) – Battery chargers, trucks, buses, RVs, trolling motors, etc – Regulatory Sepcification SAE J553; SAE J1171; UL1500 Package included: 2 x Screw Nuts 1 x Red boot Cover 1 x Automatic Reset Circuit Breaker
