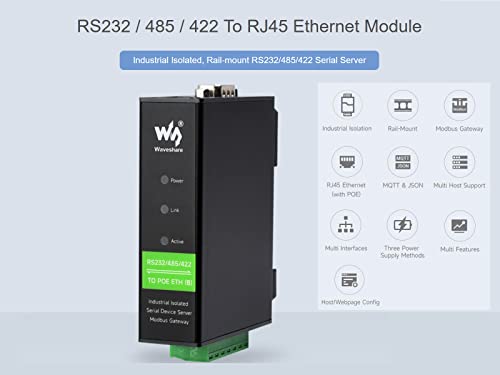

il-Mount Serial Server, RS232/485/422 to RJ45 Ethernet Module, TCP/IP to serial, With POE Function
Specifications
Product type—- Serial server, Modbus Gateway, MQTT Gateway

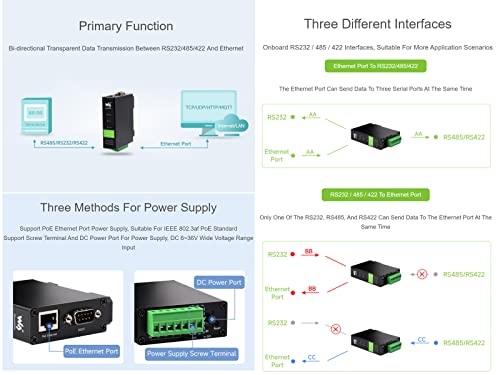

Primary function—- Bi-directional transparent data transmission between RS232/485/422 and Ethernet
Communication interface—- RS232 port × 1; RS485 port × 1; RS422 port × 1; Ethernet port × 1
Power supply—- DC power port, 6 ~ 36V DC screw terminal, or PoE port
Isolation protection—- Power isolation, Signal isolation
Communication interface
Ethernet—- PoE network port, support IEEE 802.3af standard, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port—- Isolated RS232/485/422
Serial parameters
Baud rate—- 300 ~ 115200 bps
Parity bit—- none, odd, even, mark, space
Data bits—- 5 ~ 9 bits
Flow Control—- no flow control
Software
Protocol—- ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration method—- host, web browser, device management functions library
Communication method—- TCP/IP direct communication, VCOM
Operating mode—- TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
Other
Operating temperature—- -40℃ ~ 85℃
Humidity range—-5% ~ 95% relative humidity
Dimensions—- L × W × H: 88.7 × 64.5 × 24.2 mm
Package Content
1. RS232/485/422 TO POE ETH (B) x1
Development Resource
https://www.waveshare.com/wiki/RS232/485/422_TO_POE_ETH_(B)
