Sandvik Coromant 570-SCLCL-20-09 CoroTurn 107 head for turning

Part of the CoroTurn 107 product family. CoroTurn 107 is the first choice for external and internal machining of small, long and slender components. Sharp cutting edges and excellent chip control ensure a soft cutting action and low cutting forces, providing an excellent surface finish to the component. Geometries designed for high pressure coolant are also available. PRODUCT SPECIFICATION: ADINTMS, Adaptive Interface Machine Direction: SL head (screw mounted) -size 20 ; BAMS, Machine Side Body Angle: 0 deg ; BAWS, Workpiece Side Body Angle: 0 deg ; BMC, Body Material Code: Steel ; CNSC, Coolant Entry Style Code: 1: axial concentric entry ; CP, Coolant Pressure: 10 bar ; CP, Coolant Pressure: 145.038 lbf/in2 ; CUTINT_MASTER, Part 2 Of Cutting Item Interface Identifiers: CCMT 09T308 ; CXSC, Coolant Exit Style Code: 3: axial inclined exit ; DCON, Connection Diameter: 20 mm ; DCON, Connection Diameter: 0.787402 inch ; DMIN1, Minimum Bore Diameter: 25 mm ; DMIN1, Minimum Bore Diameter: 0.984252 inch ; DPC, Damping Property: 0 ; GAMO, Orthogonal Rake Angle: 0 deg ; HAND, Hand: L ; HF, Functional Height: 0 mm ; HF, Functional Height: 0 inch ; KAPR, Tool Cutting Edge Angle: 95 deg ; LAMS, Inclination Angle: -8 deg ; LF, Functional Length: 20 mm ; LF, Functional Length: 0.787402 inch ; MIIDM, Master Insert Identification: CCMT 09 T3 08 ; OHX, Maximum Overhang: 20 mm ; OHX, Maximum Overhang: 0.787402 inch ; PSIR, Tool Lead Angle: -5 deg ; RMPX, Maximum Ramping Angle: 0 deg ; TQ, Torque: 3.0 Nm ; TQ, Torque: 2.21269 ft lbs ; WF, Functional Width: 13 mm ; WF, Functional Width: 0.511811 inch ; WT, Weight Of Item: 0.047 kg ; WT, Weight Of Item: 0.1034 lbs ;

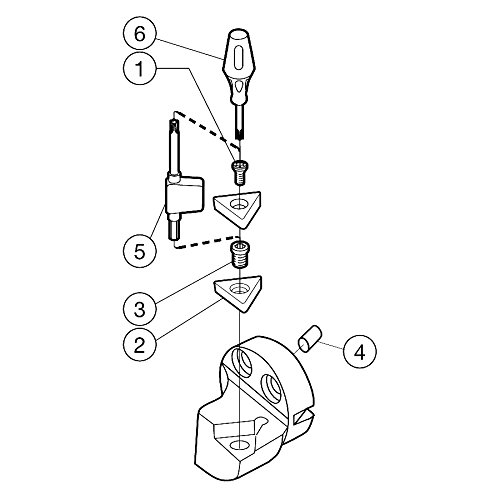

570-SCLCL-20-09 + incl. in box: 5513 020-09, Insert screw, (pcs. = 1, incl.); 5552 058-02, Locating tube, (pcs. = 1, incl.); 5680 049-01, Key, (pcs. = 1, incl.); 5680 046-02, Screwdriver, (pcs. = 1, not incl.);
