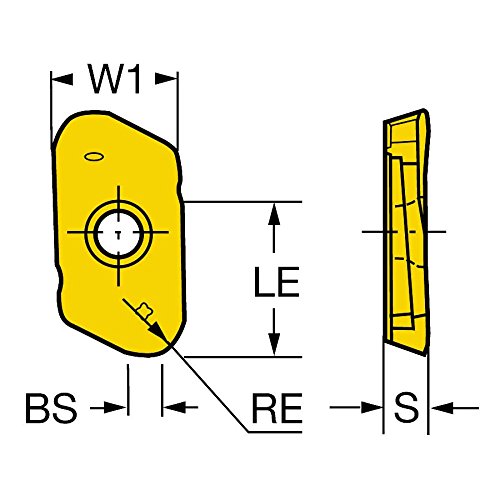

Part of the CoroMill 790 product family. The CoroMill 790 cutter is the first choice for ISO-N materials. To be used in shoulder operations as a “super remover”, it is designed for high security demands and high precision work. PRODUCT SPECIFICATION: Grade: 1130 ; ISO Cutting Tool Material: HC ; Coating Process Type: PVD ; Coating Type: AlTiCrN ; Substrate Type: WC ; BS, Wiper Edge Length: 1.0 mm ; BS, Wiper Edge Length: 0.03937 inch ; CBMD, Chip Breaker Manufacturer’S Designation: PL ; CTPT, Operation Type: Light ; CUTINT_SIZESHAPE, Insert Size And Shape: CoroMill 790 -1604 ; HAND, Hand: R ; KRINS, Major Cutting Edge Angle: 90 deg ; LE, Cutting Edge Effective Length: 12 mm ; LE, Cutting Edge Effective Length: 0.472441 inch ; RE, Corner Radius: 0.8 mm ; RE, Corner Radius: 0.031496 inch ; S, Insert Thickness: 4 mm ; S, Insert Thickness: 0.15748 inch ; W1, Insert Width: 11 mm ; W1, Insert Width: 0.433071 inch ; WT, Weight Of Item: 0.006 kg ; WT, Weight Of Item: 0.0132 lbs ;
