Features : Direct mounting of two 2.5″ SATA III SSd / Hdd on board (SSD not included) Operating System Software can be installed on mounted SSD and booting of the OS from the installed PCIE disk is supported (Your mother board BIOS need to support this feature) Using standard low cost high perfermance 2.5″ SSD instead of the much more expansive mSATA SSD Built in Power circuit, no power connection required. Best for PC / MAC where no extra power connection available Can be used for installion of VMWare ESXI 5.5 as boot disk (need to inject sata-xahci-1.10-1.x86_64 to ESXI installation ISO file) Specifications : PCIE 2 Port SATA III (6G) Port Support direct installation of two standard 2.5″ SATA III SSD PCI Express Specification Rev. 2.0 1-Lane (x1) PCI-Express with transfer rate 5Gb/s Full Duplex channel Compliant with Serial ATA 3.0 Specification,Data transfer rate up to 6.0Gb/s Backward compatible with SATA1.0/SATA2.0 specification Maximum capacity supported : 4T Tested Support NCQ Driver supported Windows98SE /ME/ 2000/XP/Server 2003/Vista/WIN7/Win8/Win 8.1/ Win 10, Mac OS Dimension : 20 x 120 x 230 mm System Requirement : Available PCIE 2.0 1X,2X,4X,8X or 16X slot on PC Supported OS Package Content : PCIE SATA III SSD adapter Driver CD 8 x Hdd mounting screw (SSD / HDD in photo is not included) 1 x screw driver

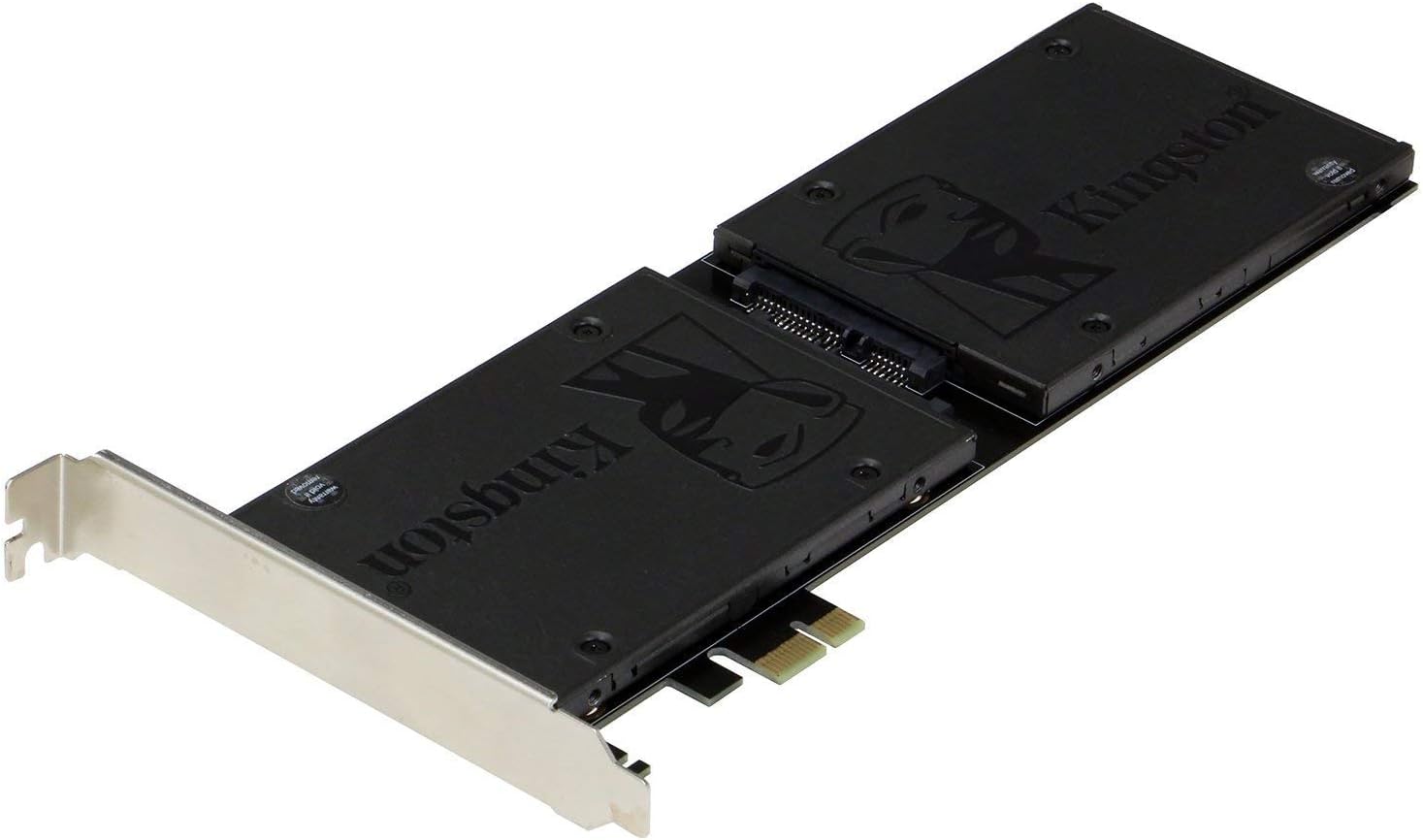

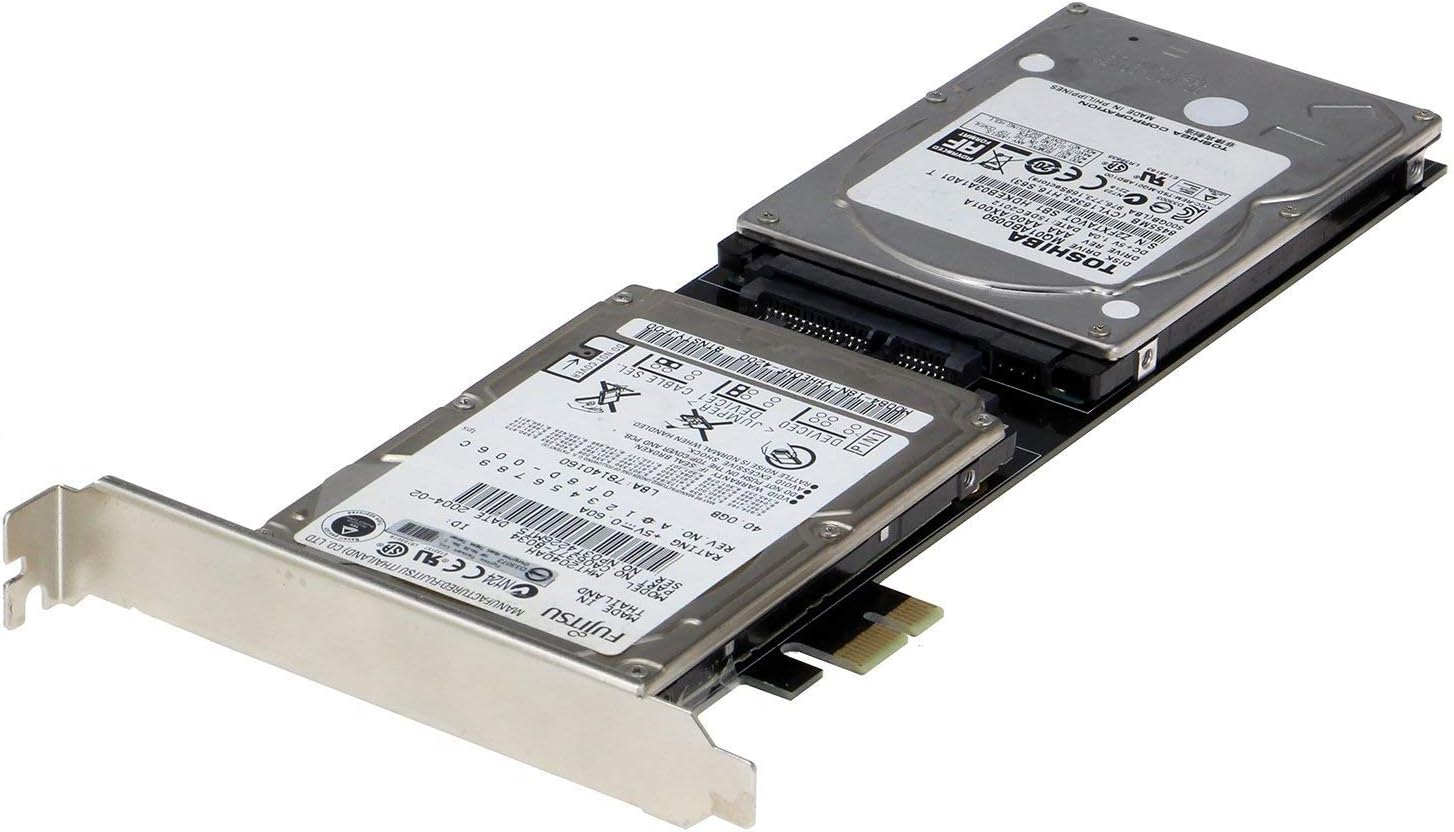

Sedna SE-PCIE-SSDX2-SATA6G Dual 2.5 Inch SATA III (6G) SSD Adapter
$169.99
- Make sure this fits by entering your model number.
- Direct mounting of two 2.5″ SATA III SSd / Hdd on board
- Built in Power circuit, best for PC / MAC where no power connector available
- Operating System Software can be installed on mounted SSD and booting of the OS from the installed PCIE disk is supported ( Your mother board BIOS need to support this feature )
- Maximum capacity supported : 4T Tested
- No hardware RAID support
In stock
Additional information
| Weight | 0.17 kg |
|---|---|
| brand | Sedna |
| mpn | SE-PCIE-SSDX2-SATA6G |
| dimensions | 26.6 x 15.4 x 4.2 cm |
