-2Port POE Repeater
Specification:
1. PoE input: 1 RJ45 port
2. PoE output: 2 RJ45 ports
Input Power: 30W max
Output power: 15W max
Transmission rate: 10/100/1000Mbps
Network medium: Cat5, Cat5e, Cat6, Cat6e, UTP cable (less than 120m)

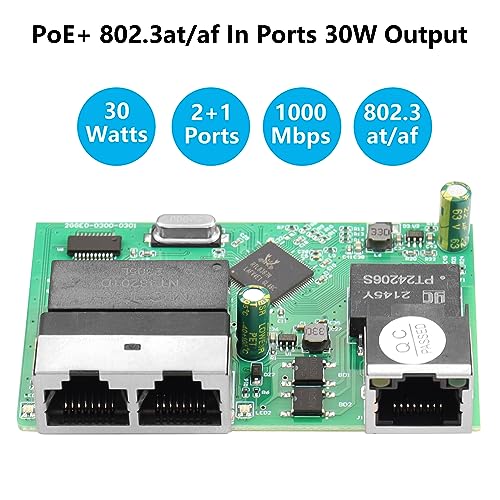

Chip solution: RTL8367N-CG +SD4923E
Standard/protocol: IEEE 802.1Q, IEEE 802.1x, IEEE 802.1w, IEEE 802.3af/at
Network medium: 10BASE-T: unshielded category 3, category 4, category 5 twisted pair (maximum 100m)
100BASE-TX/100BASE-T: unshielded category 5, twisted pair above category 5 (maximum 100m) 1000BASE-TX/1000BASE-T: Category 6 or above twisted pair (maximum 100m)
Interface: 1 10/100M /1000M RJ45 port (Auto Negotiation/Auto MDI/MDIX)
Cascading: the output port is cascaded Switching capacity: 6Gbps
feature:

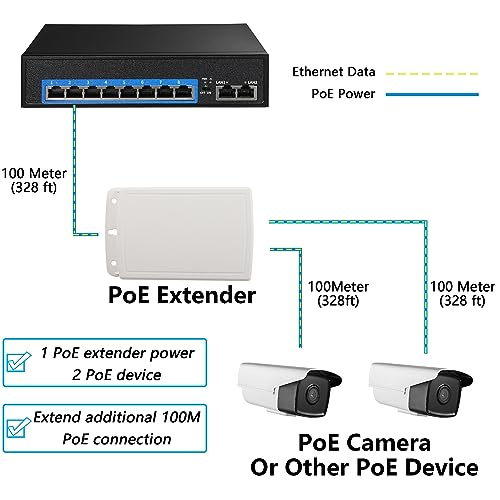

1. This PoE extender is not a PoE switch, it must be connected to a PoE switch/PoE injector to work
2. This is a high-performance, low-power 10/100/1000Mbps trunk extension repeater, which is the primary choice for small and medium-sized LANs. It provides two 10/100/1000Mbps ports, plus one 10/100/1000Mbps UP LINK port, which can be used to connect upstream devices with higher bandwidth.
3. Support standard POE and non-standard input. Store and forward technology is used to ensure that the bandwidth is effectively allocated to each port. Full wire-speed Gigabit connection to a workgroup or server,
4. Plug and play, this kind of flexible non-blocking architecture, users can use it without being limited by bandwidth and media network.
5. The expander supports half-duplex and full-duplex working modes. Each switch port supports self-adaptive function. The port adopts store-and-forward mode. networking solutions
SinLoon 30W Gigabit PoE Extender, PoE Adapter,IEEE 802.3af/at PoE+ Standard 100/1000Mbps RJ45 1 to 2 Wall Mounted POE Injector
$60.99
- 1 to 2 gigabit high speed: RJ45 supports 10 100 1000Mbps Ethernet connection, note: the access terminal must be a device with its own POE before it can be used, and ordinary network access without POE devices will not work
- Long-distance transmission: The transmission distance can reach 100 meters (328 feet), beautiful appearance design, compact size, easy installation, support for outdoor use, windproof and rainproof, the shell is made of UV sunscreen and anti-corrosion materials, and the product has a longer service life.
- IEEE802.3 af/at power supply: support this standard PoE, input/output maximum 30W. PoE input pins 1/2, 4/5 (+), 3/6, 7/8 (-), input and output ports support 4-core/8-core power supply, POE power supply or non-standard power supply, with overload protection and output short circuit Protection and other functions
- Plug and Play: This PoE extender has an automatic detection function, it will automatically detect the terminal device and supply power and network, no need to set up, LED display, support wall and desktop installation, small size and save space, suitable for more locations
- Wide range of applications: ear-mounted and wall-mounted plastic enclosures, can be connected to PoE cameras, APs, etc., widely used in PoE areas such as private residences, enterprises, shops, private networks, etc.
In stock
Additional information
| Weight | 0.03 kg |
|---|---|
| Brand | mandyyan |
