Additional information
| Weight | 7.0 kg |
|---|---|
| brand | SKYSHL |
| dimensions | 16.5 x 14 x 13.5 cm; 1.7 Kilograms |

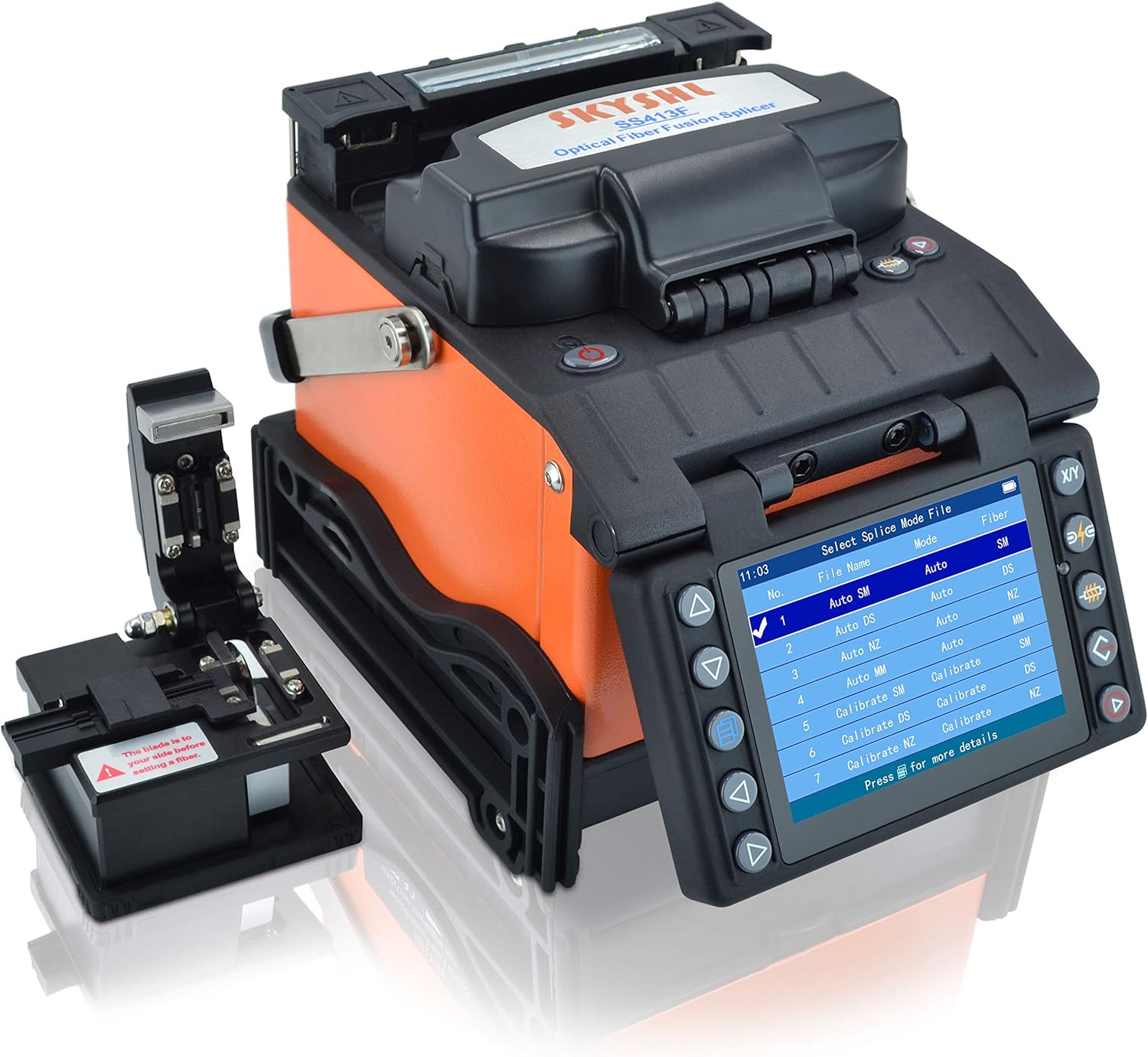

SKYSHL Core Alignment Optical Fiber Fusion Splicer (With 4pairs Electrodes) Single Fiber FTTH Auto Fiber Splicing Machine for SM MM DS NZDS (SS413F)
$1,357.99
- Make sure this fits by entering your model number.

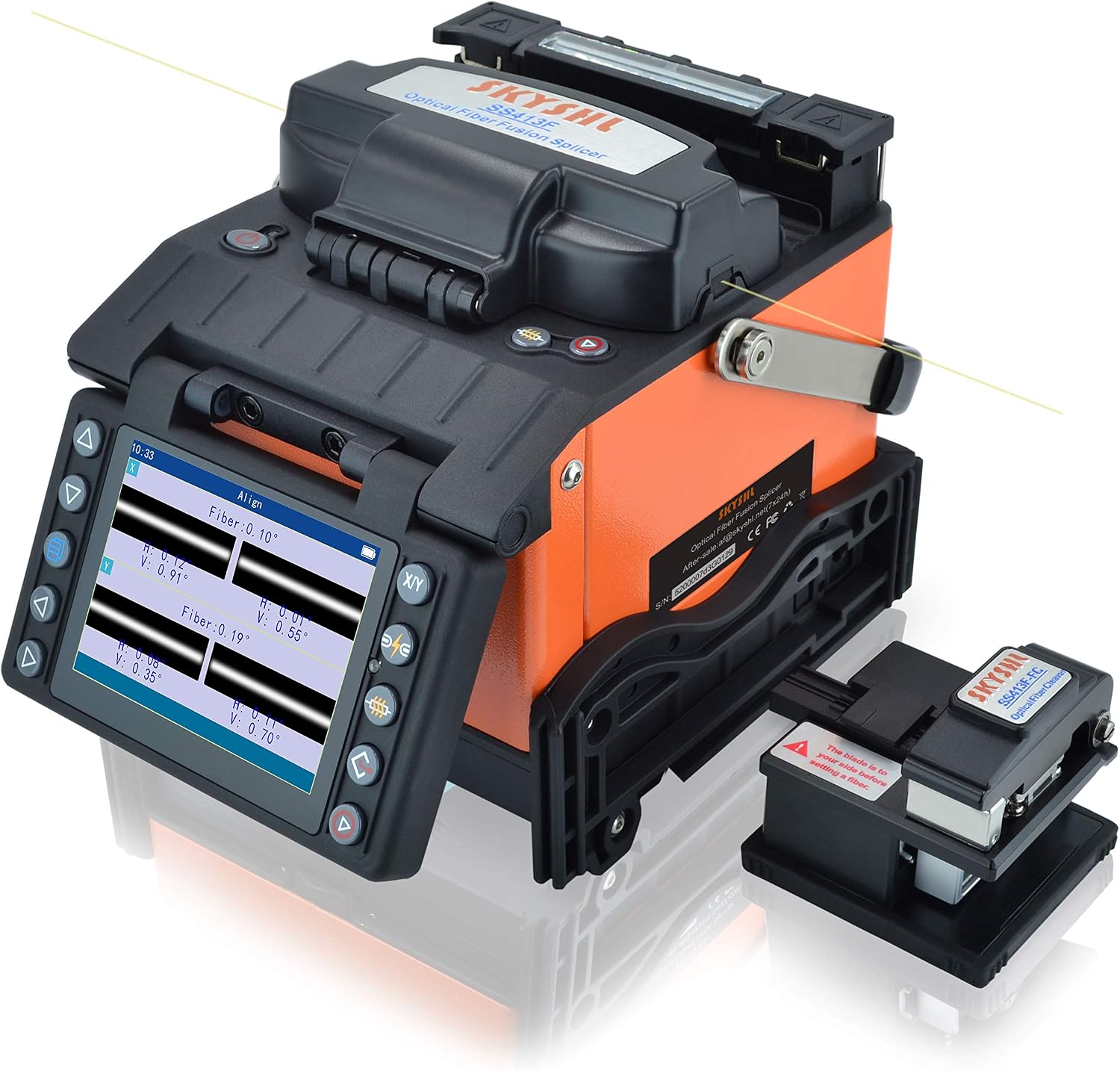

- ★Core Alignment Fusion Splicer★–The SKYSHL SS413F is a advanced single fiber core alignment fusion splicers which possesses advanced image processing technology,meanwhile, it has high precision CMOS camera, lenses and servos which provide accurate core to core alignment regardless of core-cladding concentricity error[Actual average splice loss:0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)].
- ★Faster Splicing and Heating★– The SKYSHL SS413F fusion splicing machine uses a powerful high-speed motor and advanced CPU power allow fast 6 second splice time and 16 second heat time (60mm heat shrinkable tube), and it saving engineers time, meanwhile, A powerful, high propulsion motor helps ensure stable splicing for the most rigid indoor and drop fiber.
- ★Automatic Fiber Identification★—The SKYSHL SS413F is widely compatible and automatically recognizes SM (ITU-T G.652, G.657A1 and G.657A2), MM (ITU-T G.651), DSF (ITU-T G.653), Cut-off Shifted Fiber (ITU-T G.654, Large Area type), NZD (ITU-T G.655) and BIF/UBIF (Bend Insensitive Fiber ITU-T G.657B3), the SS413F Fusion Splicer is highly effective for use in data centers, long-haul operations, Metro, LAN, and FTTx fiber.

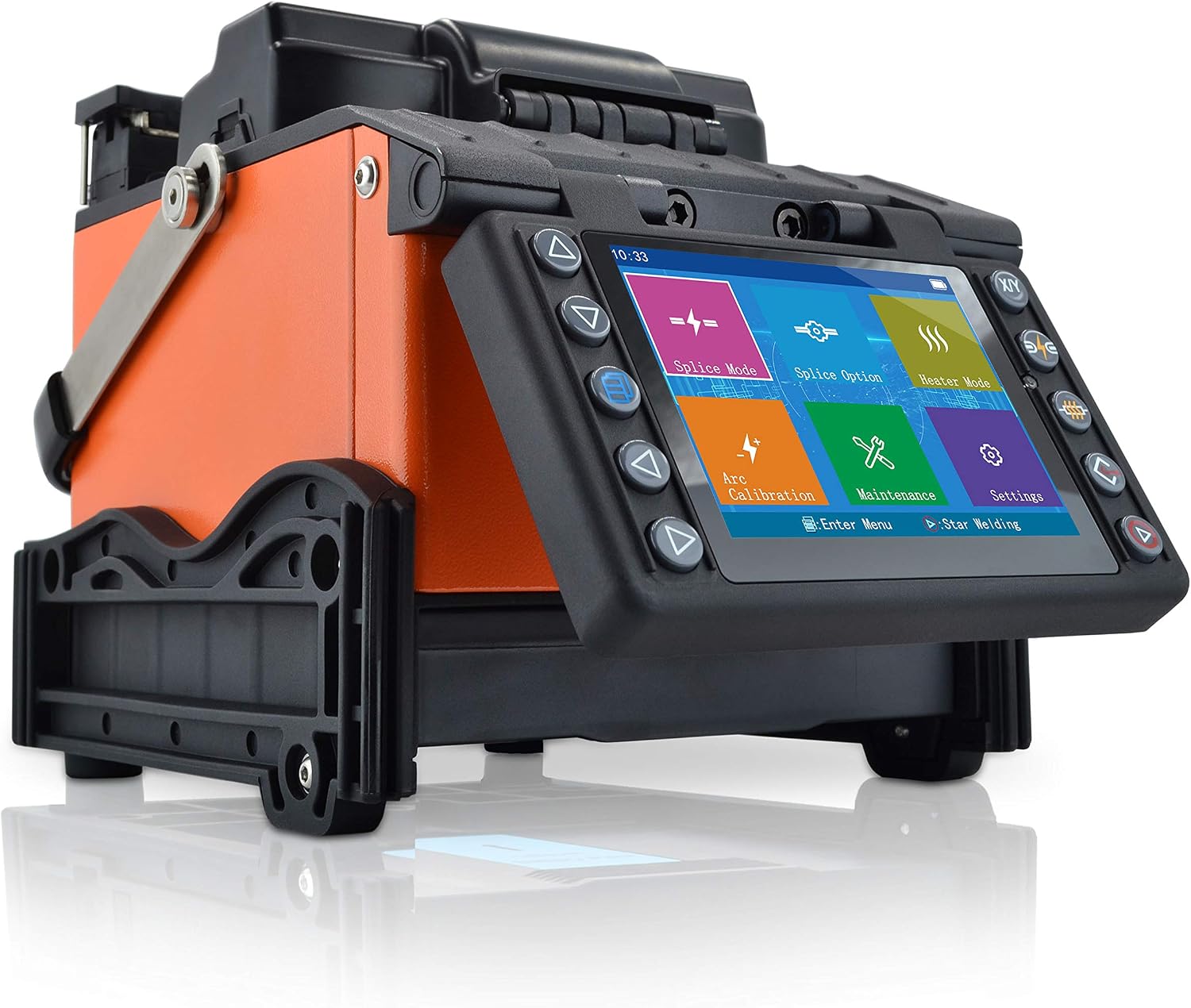

- ★Friendly and Durable Design★– While a 3.5-inch wide LCD screen easy and intuitive operation, For improved visibility in low-light conditions, 4 LED lights illuminate the entire splicing chamber. The SS413F Fusion Splicer is also designed to meet the rigors of use in the field. While a substantially lower profile and lighter weight enhance portability, SS413F splicer’s canopy design and ruggedized body provide resistance to shock, water and dust exposure.
- ★Rich Functions and Accessories★– SKYSHL SS413 has a lot of intelligent functions such as auto focusing, auto splicing, auto heating, auto calibrating, etc., Work when you get it; meanwhile, we provide users with a wealth of accessories, including 4 pairs of electrodes can achieve 4*5500 splicing operations, 10.8V 5200mah rechargeable lithium battery can work continuously for 15 hours, 16 points tungsten blade can cut 48,000 times.
In stock
