European machine builders looking for a range of high performance ISO 21287 compliant compact actuators need look no further thanks to the latest development from world leaders, SMC Pneumatics with the launch of their new generation Series C55, double acting, single rod, air operated cylinders. Designed to meet a broad range of automation machine applications, Series C55 achieves outstanding load performance thanks to its unique rubber bumpers, piston wear ring and rod bushing which are used throughout the complete range. Therefore, European machine builders looking for an ISO compact cylinder with stroke lengths of up to150mm including the benefits of standardised mounting dimensions, now have the perfect solution. Available in standard bore sizes of: 20, 25, 32, 40, 50 and 63mm with piston speeds of between 50 500mm/sec, these cylinders are designed to operate using relatively low air pressure of between 0.05 1.0 MPa and at ambient and fluid temperatures of between minus 10C to plus 70C standardised mounting options conforming both ISO 21287 and 6431, this new cylinder range effectively complete SMCs comprehensive line up of ISO/VDMA compliant cylinders.

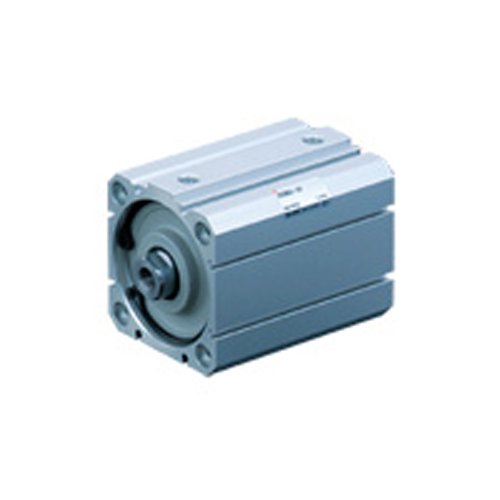

SMC C55B20-150 Compact Cylinder, ISO Standard 21287
$39.99
- Conforms with the ISO 21287 standard
- Bore sizes of 20, 25, 32, 40, 50, 63, 80 & 100mm
- Large stroke range from 5 mm up to 150 mm
- Construction is similar to the current CQ2 lateral load resistant specification
- Snap ring construction allows easy and quicker maintenance
In stock
