Swing with your friend.. Tarzan in the jungle: with this cable this would not be impossible as it supports all tortures such as pulling, pressure and bending – an advantage for wiring on often sharp light sleepers. The SC-BINARY 234 is an excellent conductor for transmitting digital signals in 110 Ohms AES/EBU and DMX mode. Constructed of an aluminium fleece and a copper coil winding for 100% coverage, its shielding ensures high protection against electrical disturbance. This cable ensures perfect transmission of digital signals up to a distance of 1000 metres. These cabling are ideal for transferring digital signals in 110 Ohm AES/EBU 2 DMX512 mode. Important: Using a standard microphone cable is not recommended, due to the many data and information losses caused by Kelvin effect.

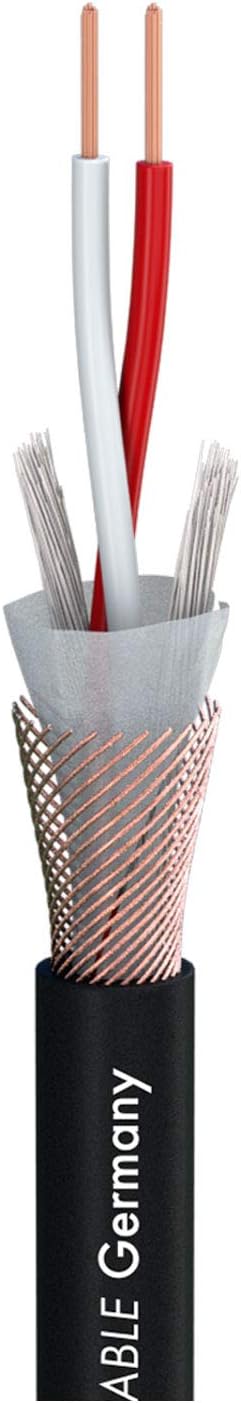

Technical details: Constitution : (2LI2Y0.34mm2)(ST)DY Envelope; Diameter: PVC/PUR: 6.2 mm; Inner conductor: 2 x 0.34 mm2 (AWG22) Copper strands per core: 19 x 0.15 mm Conductor insulation: Foam/Skin-PE 1.50 mm Protection: Copper coil winding + Aluminium fleece 100% optical coating ELECTRIC FEATURES Metric capacity cond./cond. Metric capacity: 115 pF Odometer resistance, cond. : 53 ohms Odometer resistance, shielding: 28 ohms Resistant. Odometer, insulation: > 1 GB. Characteristic impedance: 110 ohms
Sommer Cable AES/EBU DMX512 110 Ohms SC-Binary 234 MKII XLR Male 3 Point Neutrik NC3MXX / XLR Female 3 Point Neutrik NC3FXX, Black (50 m)
$290.99
- Make sure this fits by entering your model number.
- AES/EBU and DMX compliance, high flexibility, indoor and outdoor installation
- Excellent protection against interference (aluminium fleece and copper coil)
- Very robust thanks to its special heavy duty sheath
- Interconnection of scanners and lighting equipment, digital mixers, etc.
- Interconnection of digital audio amplifiers, DAT recorders, etc.
In stock
Additional information
| Weight | 2.48 kg |
|---|---|
| brand | Brand: Sommer Cable |
| dimensions |
