This Power inverter will convert 12 V DC voltage to 220V-240V AC voltage. To provide AC power to operate up to 1500 watts AC voltage 220V, 230V,240V
INVERTER SPECIFICATION
Model No.: SP15-12
Continuous Output Power: 1500W
Max Output Power: 3000W
DC Input Voltage: DC 12V
AC Output Voltage: 190-240V AC(for 220V/230V/240V)
Frequency: 50Hz
Efficiency: 88%
No Load current Draw: 0.5A (voltage dependant)
Output Wave Form: Pure Sine Wave
Inversion Efficiency: 90%
Operation Temperature range: (-20℃-40℃)
DC Low Voltage Shutoff: 10-10.5Vdc
Over voltage shutoff: 15-15.5Vdc
Output Short: Automatically shut off
Overload Protection: Shutdown
Net weight: 5.5kg
Size: 37×19.2×9.8cm
Certification: CE, EMC, LVD
Input low voltage protection, overload protection, over temperature protection
Reverse polarity
Automatic voltage regulation(AVR)
Intelligent power management (IPM)
Intelligent Fan Control (IFC)
Make sure you buy inverter which is rated 20% below inverter constant power rating (for resistive loads eg, lights electric heaters) and 20-40% below inverter constant power rated for inductive loads (drills, microwave etc)
CONTENTS IN BOX
1x Power inverter
1x pair of cable with terminal rings
1x manual
Please note:Inductive loads can have startup power which is 3 to 5 times their rated power. for example power drill rated 500W will need 1500W to 2500W just to start up. If you use low rated inverter there is posibilty that you will damage the inverter were it will emit smoke due to damage.

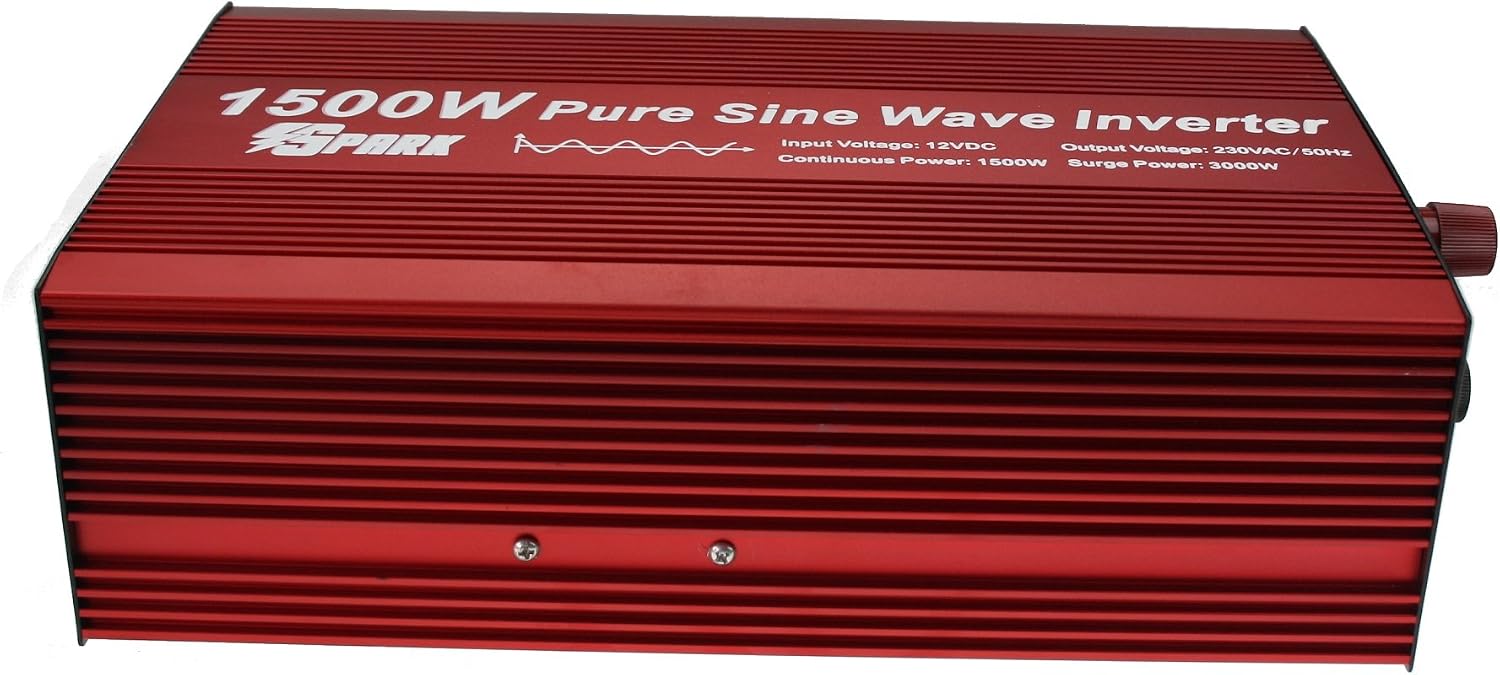

Spark 1500 watt pure sine wave power inverter 12v 3000W peak
AUD $713.99
- 12V Pure sine wave inverter Constant power rated 1500W peak 3000W
- Suitable for Caravans, Motorhome, Camping,, Boat Trip, Working on the way and everywhere, where there is no electricity! Simply connect the Power Inverter with a Battery and then connect to electrical appliances

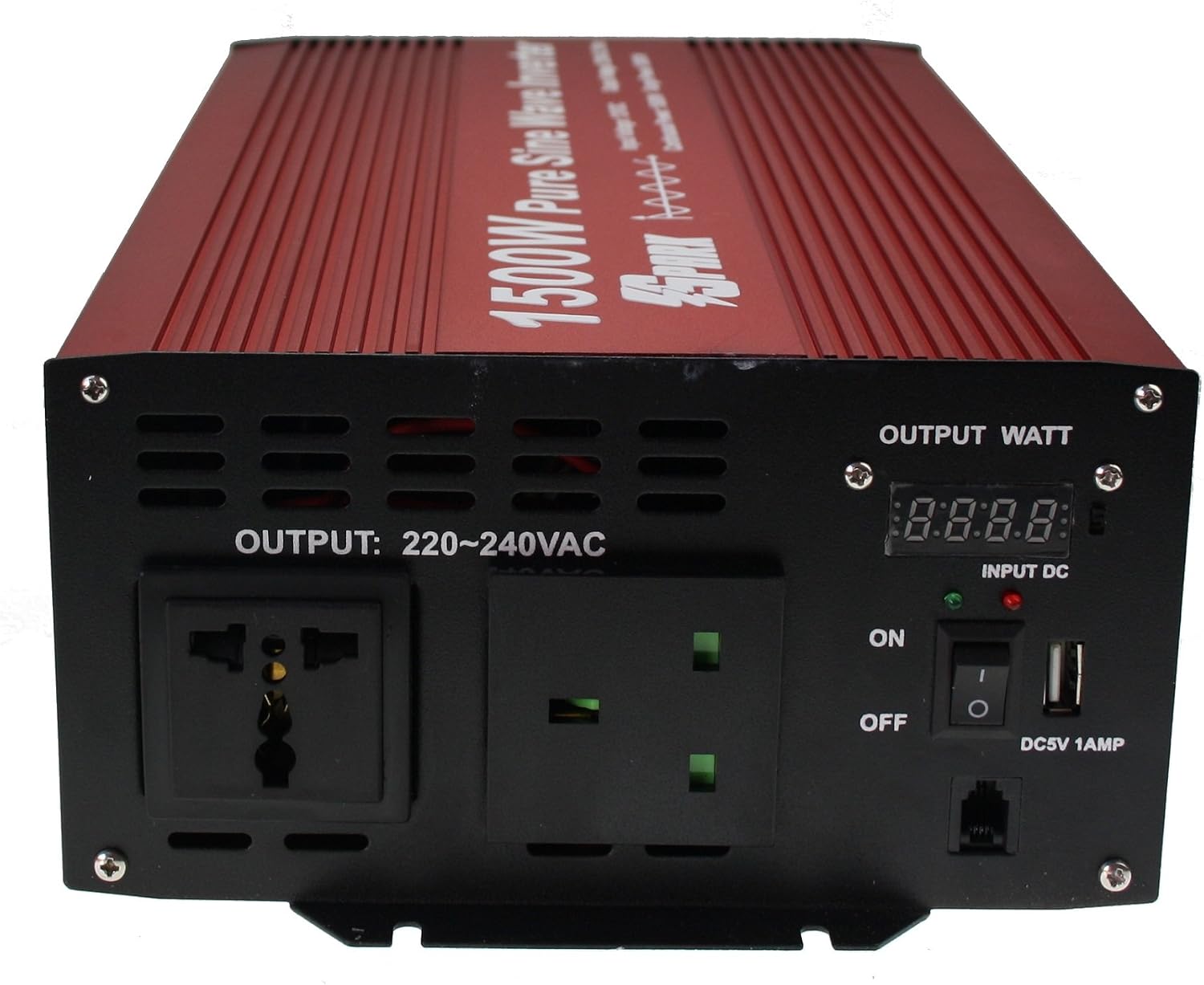

- 2x AC sockets, One is universal which can accept any plug one is BS 3 pin.
- COMPLETE PROTECTION:Overload shut off : 1600W, Low voltage shut off,Over voltage shut off,Output short: automatically shut off, Over temperature shut off: 65-70 Celsius degree
- Soft Start function, Temperature and Load control cooling, 1 year Warranty
In stock
Additional information
Weight | 5.01 kg |
---|---|
brand | Spark |
dimensions | 46 x 27 x 19 cm |
