The Starrett 18C heavy-duty automatic centre punch with adjustable stroke is 5-1/4″ long with a 11/16″ (17 mm) diameter for creating a starter dimple without the need for a hammer. This heavy-duty model is capable of striking a heavier blow than the Starrett 18A and 18AA automatic centre punches. It has an adjustable stroke, which can be set by turning the knurled cap and is regulated by spring tension for uniform dimple size at every setting. The punch is made from hardened and tempered steel components that provide wear resistance and strength. It has a round handle that is knurled for grip. The point can be removed for replacement or sharpening. Centre punches make small dimple marks in a workpiece to help guide a drill bit. Manual centre punches have a metal shank with a point and are typically tapped with a ball-peen hammer to mark the material. Automatic centre punches have an internal spring mechanism that enables them to mark the material without using a hammer, leaving one hand free for steadying the work. The L.S. Starrett Company manufactures precision measuring tools, metrology and testing equipment and saw blade products. The company, founded in 1880, is headquartered in Athol, MA.
1 x Automatic Centre Punch

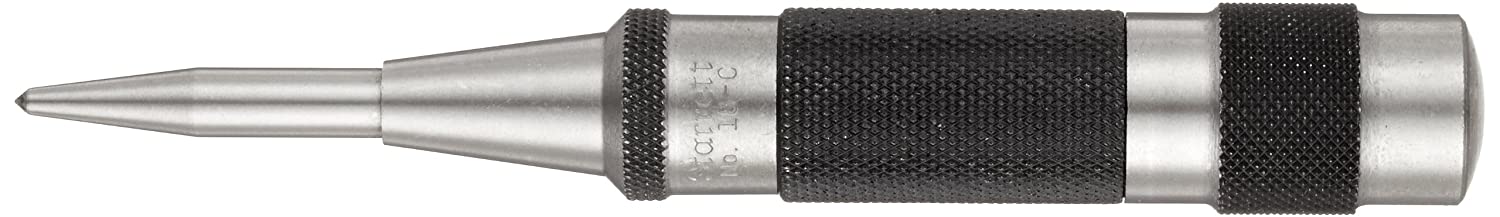

Starrett 18C Automatic Centre Punch with Adjustable Stroke
$75.99
- Heavy-duty automatic centre punch with 5-1/4″ length and 11/16″ diameter punches a starter dimple without the need for a hammer
- Capable of striking a heavier blow than standard automatic centre punch
- Stroke impact can be set by turning knurled cap
- Spring tension is constant for uniform depth and dimple size at each setting
- Hardened and tempered steel components provide wear resistance and strength
- Rugged automatic punch with all-steel handle and parts

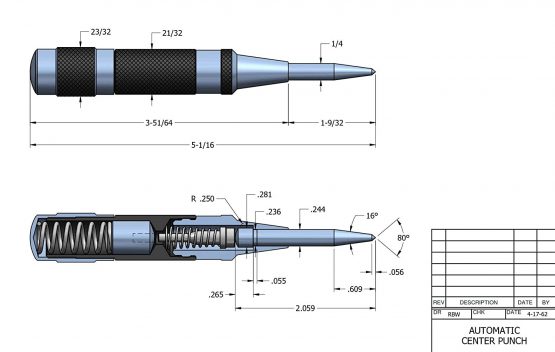

- Internal mechanism strikes a blow when downward pressure is applied
In stock
Additional information
| Weight | 0.14 kg |
|---|---|
| brand | Starrett |
| dimensions | 13.7 x 2.8 x 1 cm |
