Size:NPN NO，Model number: LJ18A3-8 series External dimensions: M18x60 Installation type: Shielded Detection distance: 8mm Setting distance: 0-7 mm Supply voltage: 6-36Vdc Output current: DC type: 300mA max; AC Type: 400mA Standard detected object: Mild steel (18x18x1mm) Sensing object: Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) Response frequency: 500Hz Output indication: Red LED Short-circuit protection: NO Reverse connection protection: Yes Insulation resistance: 50MΩ min (between charging part and housing) Dielectric strength: 1000Vac, 1min (between charging part and housing) IP Rating: IP65 Operating temperature: 25 to 70 °C (13 to 158 °F) Cable length: 1.2m, PVC cable Material: Case: Brass-nickel plated; Sensing surface: ABS

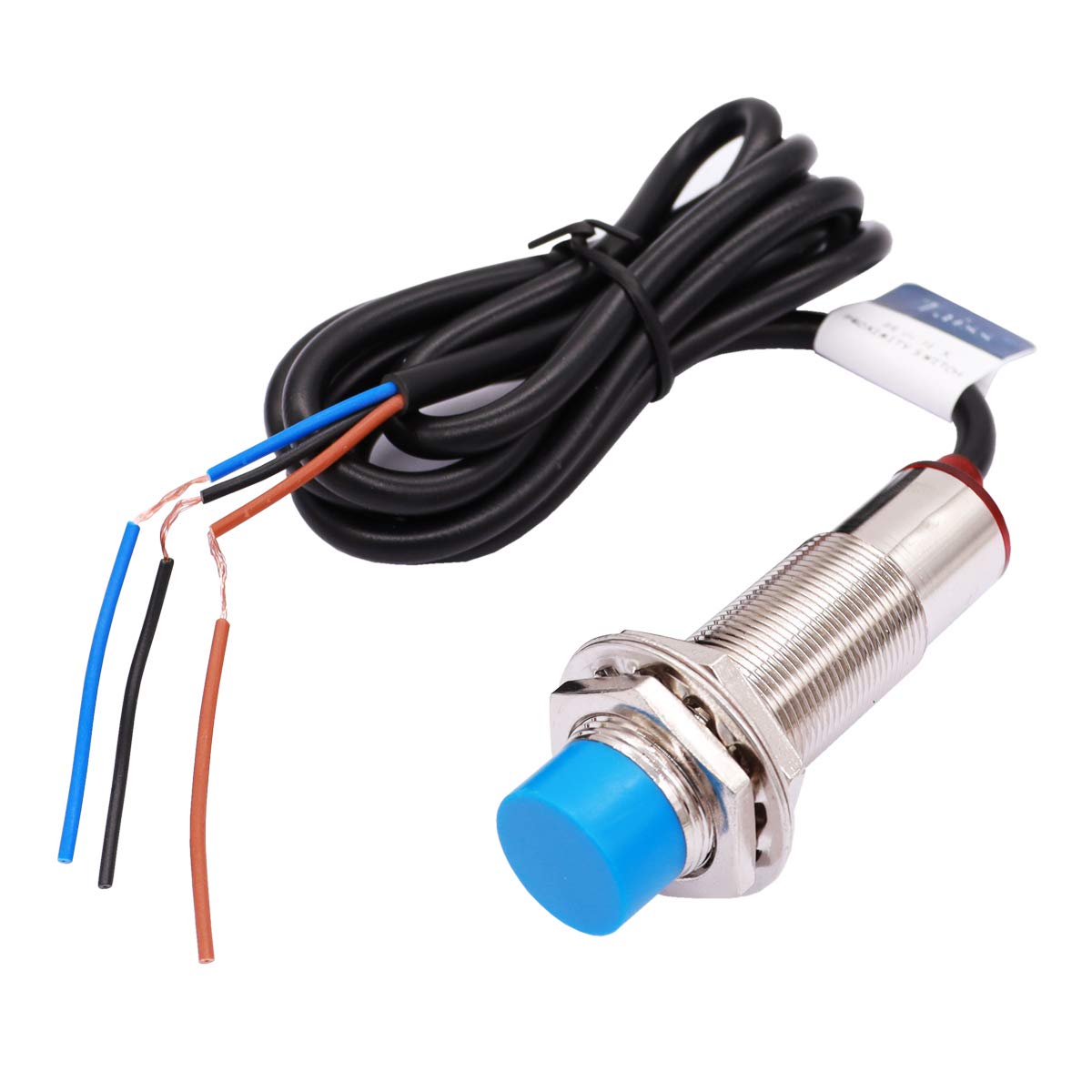

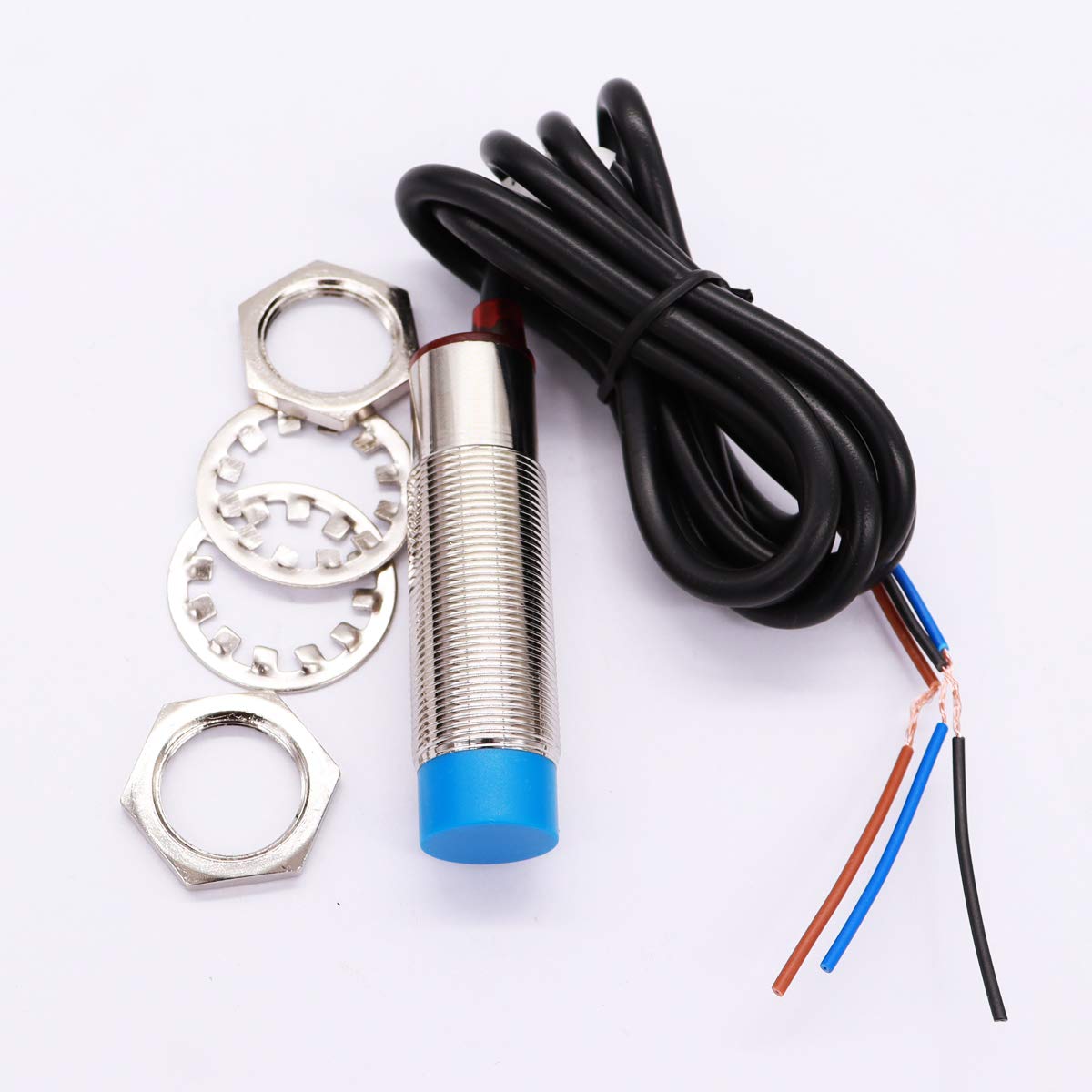

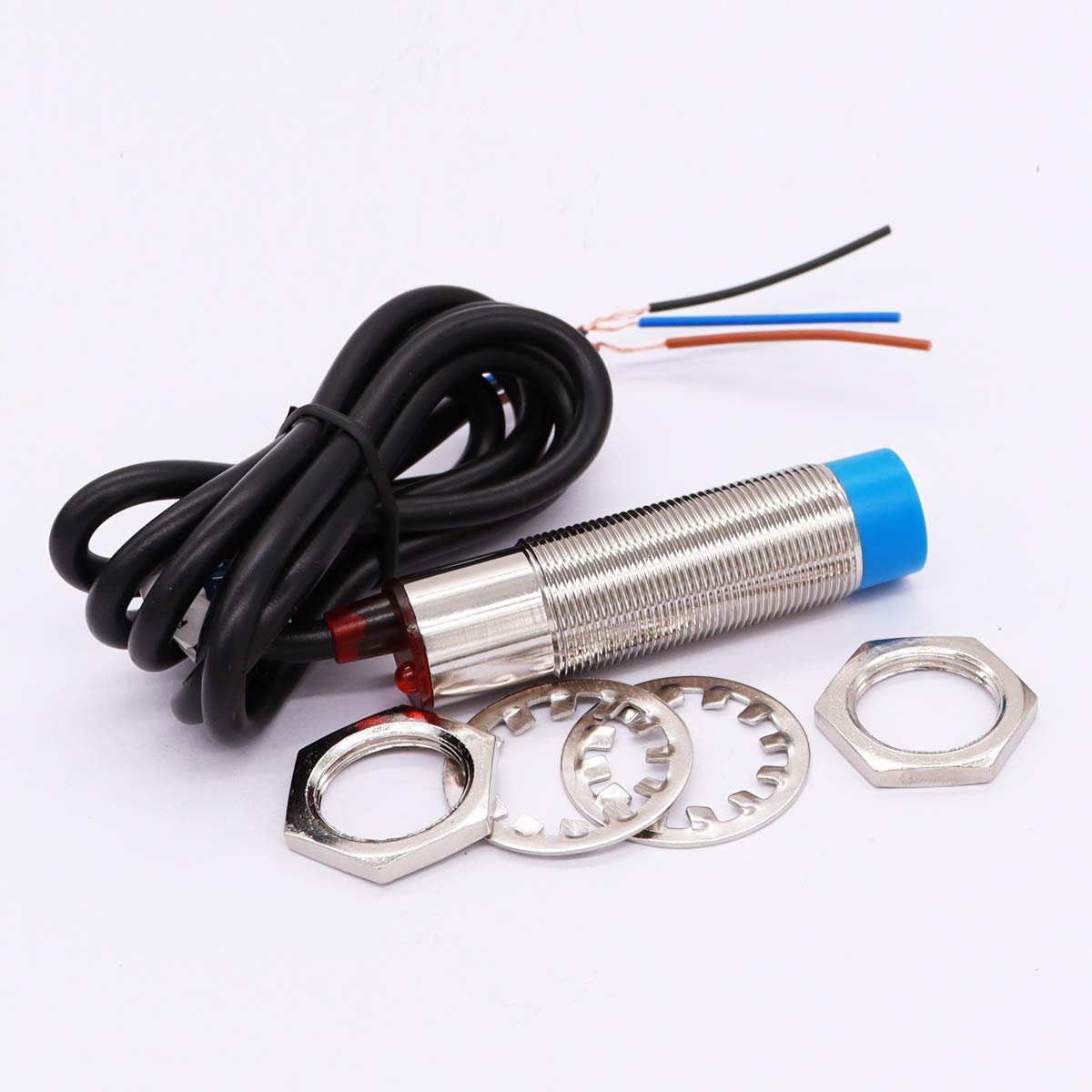

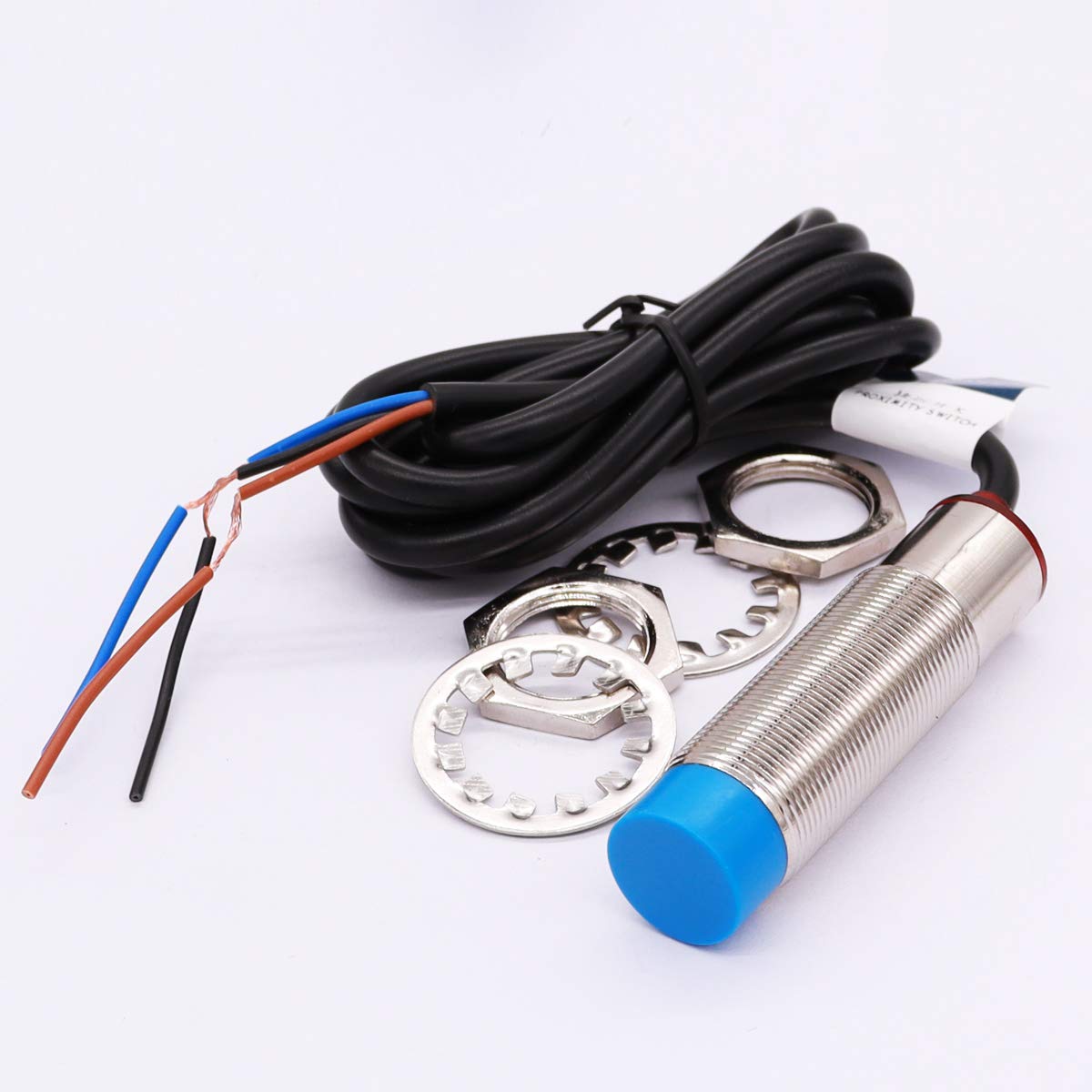

Taiss/1pcs M18 Proximity Sensor NPN No（Normally Open） 6-36VDC 8mm Detective Approach Sensor Inductive Proximity Switch LJ18A3-8-Z/BX
$38.99
- Product Name : Inductive Proximity Switch;Model : LJ18A3-8-Z/BX;Wire Type : DC 3 Wire Type (Black, Brown, Blue);Switch Appearance Type : Cylinder Type
- Theory : Inductive Sensor;Output Type: NPN NO(Normal Open);Thread diameter: 18mm : 18mm;Detecting Distance : 8mm
- Supply Voltage : DC 6-36V;Current Output : 300mA;Detect Object : Iron
- Operating Temperature : -25C to +55C (Non-freezing Condition);Size : 7 x 3cm/2.8” x 1.2” (L*Max. Dia);Cable Length : 103cm / 40.55″
- Net Weight :100g;Color : Blue Tone, Black ;Package Content : 1 x Inductive Proximity Switch
In stock
