Features:
– Spring test probes are necessary parts for PCB testing to access components on printed circuit assemblies.
– There are total 100 pcs spring test probes in one set that you can use for a long time.
– Spear tip head can be used for testing through-hole components.
– Widely used for testing PCB gold fingers(edge connectors) and -pads.
– They are great replacement probes if you need to change broken or old test probes.
Model:
P50-B1 – 16mm
Pin Centre: 0.68mm
Min test distance: 1.27mm
Spring Pressure: 75g
Full Stroke: 2.65mm
Current Rating: 3A
Current Resistance: 50mm
Plunger: Heat Treated Beryllium Copper
Barrel: Phosphor Bronze . Gold Plated
Spring: stainless steel
Package Includes:

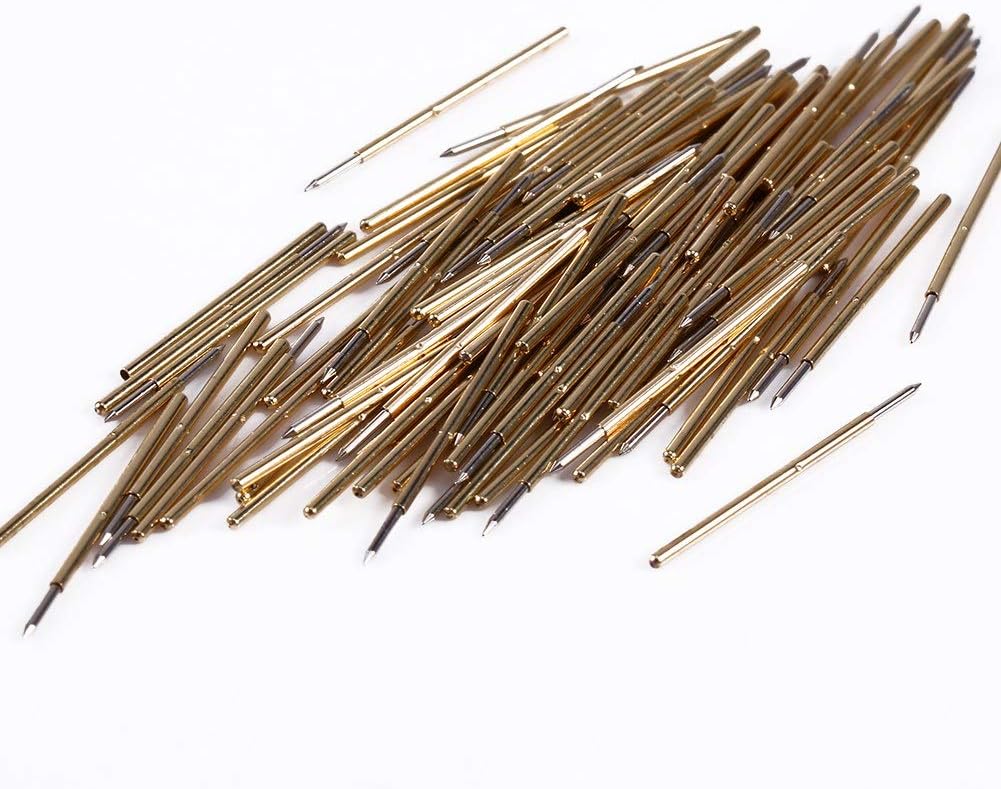

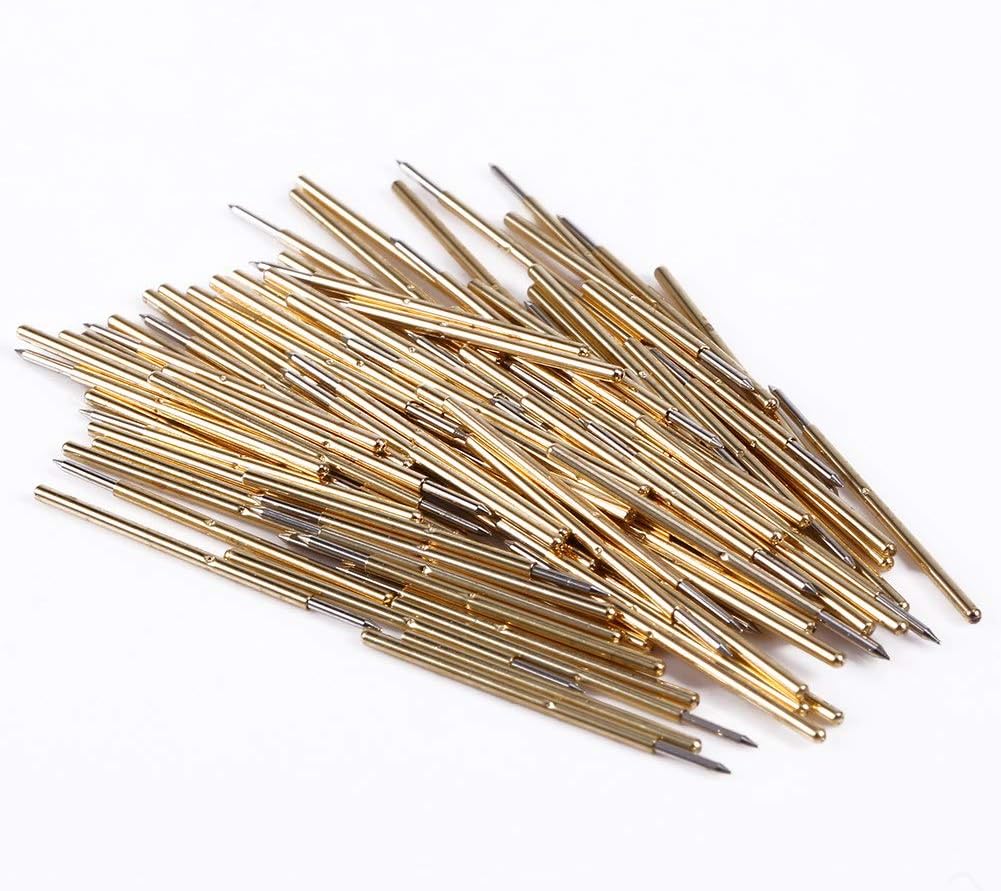

100 x Test Probes Pins

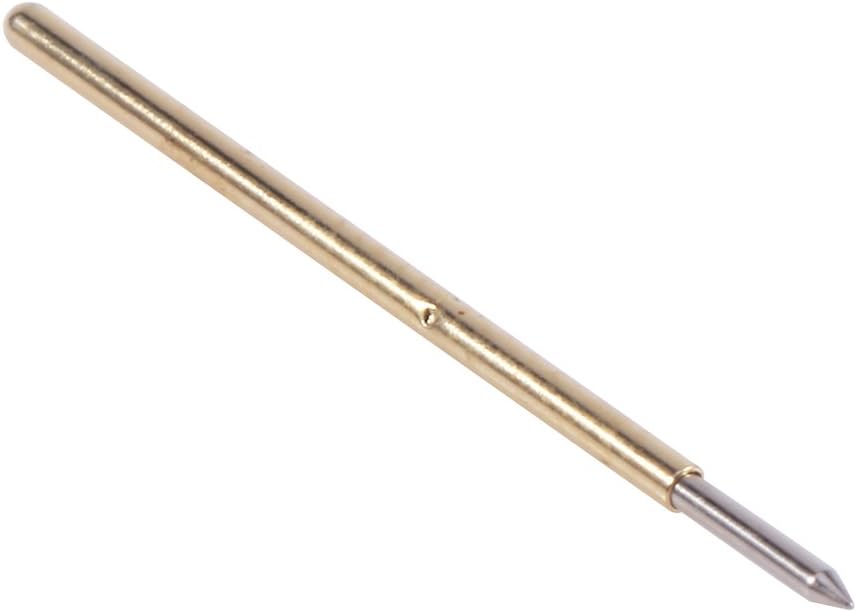

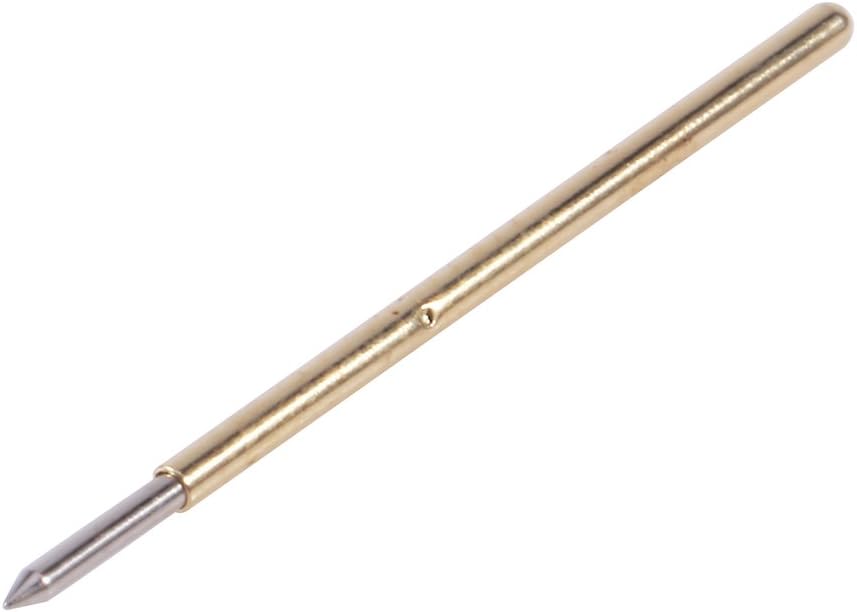

Test Probes Pins, 100PCS P50‑B1 Spring Test Probes Dia 0.68mm Sharp Angle Needle Head Pins for PCB Circuit Board
NZD $42.99
- [Widely Usage]: Widely used for testing PCB gold fingers(edge connectors) and pads, applications in semiconductor devices, mobile phones, communications, automotive, aerospace and other electronic products precision connections
- [Widely Usage]: Widely used for testing PCB gold fingers(edge connectors) and pads, applications in semiconductor devices, mobile phones, communications, automotive, aerospace and other electronic products precision connections
- [Function]: Spring test probes are necessary parts for PCB testing to access components on printed circuit assemblies.
- [High Quality Material]: This spring test probe is made of high quality copper and stainless steel and gold-plated material, durable, anti-corrosion
- [Good Replacement]; There are total 100 pcs spring test probes in one set that you can use for a long time; Great replacement probes if you need to change broken or old test probes
- [Spear tip design]: Spear tip design, easy to mount, convenient for testing
In stock
Additional information
| Weight | 0.01 kg |
|---|---|
| brand | Yosoo Health Gear |
| dimensions | 7 x 5 x 1 cm; 5 Grams |
