testo 175 T3 – Temperature logger

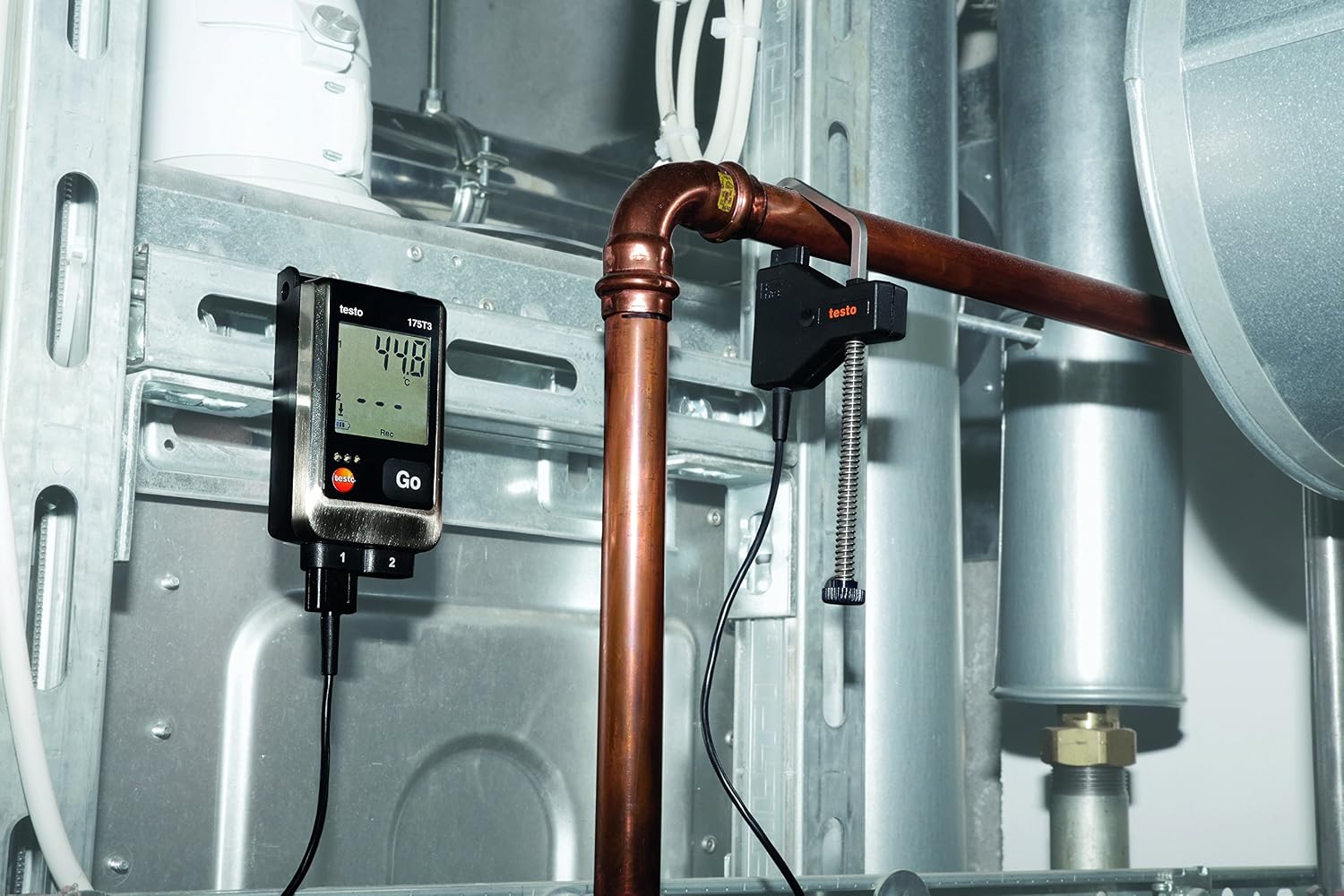

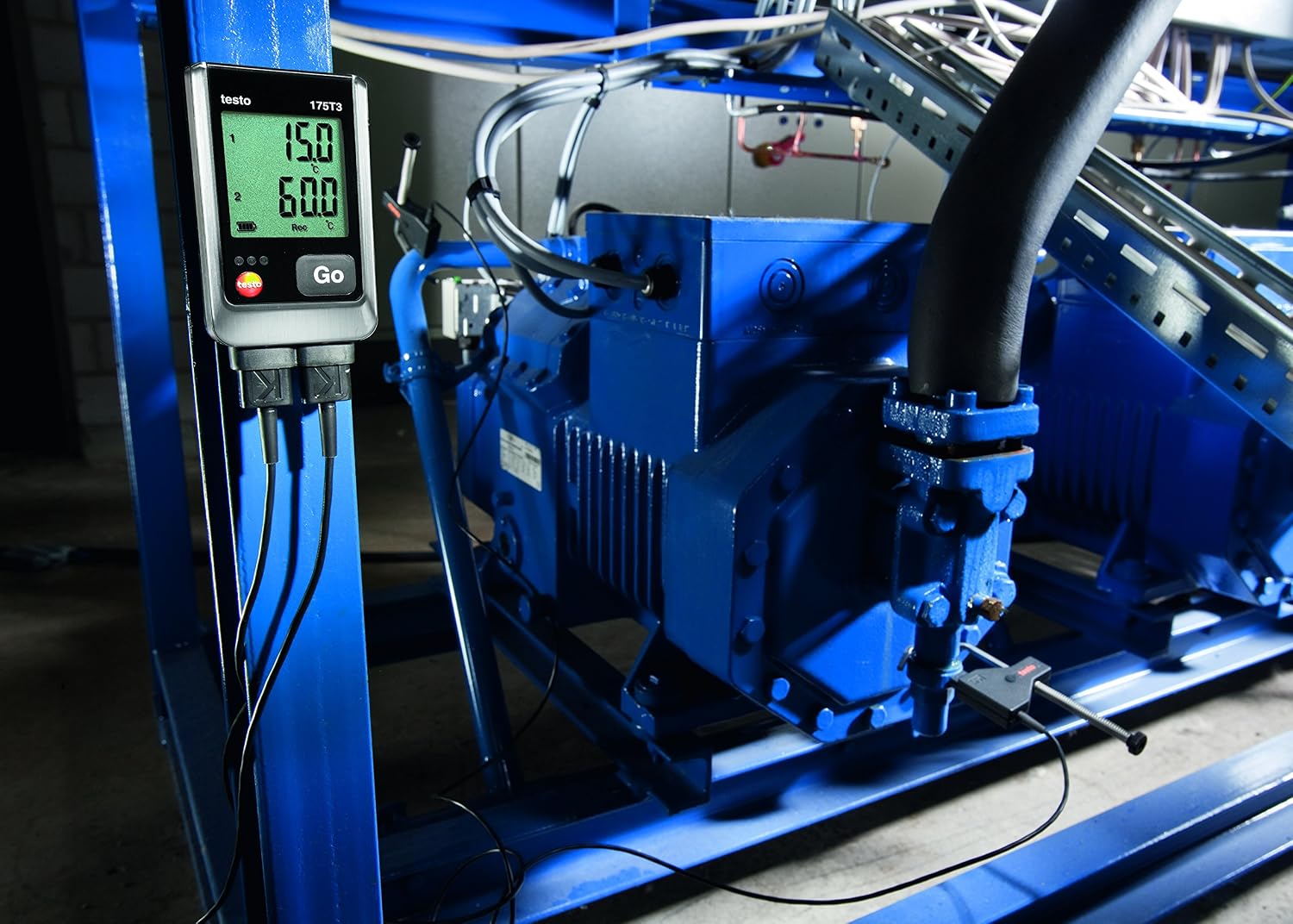

The testo 175 T3 temperature logger is equipped with two connections for external thermocouple probes (type T or type K). This means the data logger is ideally suited for carrying out temperature recording on two channels. This is for instance necessary, if you want to check that a heating system is working properly. To do this, the temperature logger measures the flow and return temperature simultaneously. The data logger can likewise be used in industrial production control, if process temperatures need to be checked at different locations.
You can select the external thermocouple probes from our wide range of probes and order them to go with the data logger. This gives you flexibility and means you can decide yourself exactly what your temperature logger has to be capable of doing. The range we offer includes surface probes, air probes and immersion/penetration probes. The measuring range and accuracy depend on the thermocouple probes selected. In principle, it is possible to measure from -50 °C to +1 000 °C with an appropriate probe.
You can display the current measuring values, min./max. values, set limit values, violations of limit values and remaining battery life on the clear display. This means you have the opportunity to read important values at any time and do not need to resort to a read-out of the temperature logger on the PC straight away every time you want to do a quick data check.
The long battery life of up to 3 years and the large measurement data memory which records up to 1 million readings are particularly convenient for users: because only relatively infrequent reading of the temperature logger is needed, even with shorter measurement intervals. You can use standard batteries (AAA) to run the data logger and you can replace them yourself. Particularly practical when temperatures are to be recorded in a polluted and dust-laden environment: The temperature logger has protection against dust ingress as well as water spray and jets according to protection class IP 65.
Good to know: Saved measurement data will not be lost even when the battery is empty or being replaced. You can therefore rely on a high level of data security when using the temperature logger.
You can choose between three different software versions for programming and reading the data logger along with measurement data analysis on the PC:
Temperature – TC Type K (NiCr-Ni) Measuring range: -50 to +1000 °C Accuracy: ±0.5 °C (-50 to +70 °C), ±0.7 % of mv (+70.1 to +1000 °C) Resolution: 0.1 °C
Temperature – TC Type T (Cu-CuNi) Measuring range: -50 to +400 °C Accuracy: ±0.5 °C (-50 to +70 °C), ±0.7 % of mv (70.1 to +1000 °C) Resolution: 0.1 °C
General Technical Data Storage temperature: -20 to +55 °C Dimensions: 89 x 53 x 27 mm Operating temperature: -20 to +55 °C Protection class: IP65 Channels: 2 external Warranty: 2 years Measuring rate: 10 s – 24 h Battery type: 3 x AIMn type AAA or Energizer Battery life: 3 years at 15 min. meas. rate Memory: 1,000,000 measuring values
NOTE: This item is Refundable
