The three models in the testo 750 voltage tester family are the first instruments with an all-round LED display. The display can be seen from any position and guarantees an ideal voltage indication thanks to its unique fibre optics. All three models meet the latest voltage tester standard EN 61243-3:2010 and meet CAT III 1000 V CAT IV 600 V safety standards. They have the most important functions for voltage testing, continuity testing and rotating magnetic field measurement.
DC voltage Resolution: 12 to 690 V / 12 V, 24 V, 50 V, 120 V, 230 V, 400 V, 690 V Accuracy: according to DIN EN 61243-3:2010
AC voltage Resolution: 12 to 690 V / 12 V, 24 V, 50 V, 120 V, 230 V, 400 V, 690 V Accuracy: according to DIN EN 61243-3:2010
General Technical Data Storage temperature: -15 to +60 °C Weight: 295 g Dimensions: 270 x 70 x 35 mm Operating temperature: -10 to +50 °C Protection class: IP64 Warranty: 2 years Overvoltage Category: CAT IV 600V; CAT III 1000V Authorizations: TÜV; CSA; CE
Instrument and measurement functions Continuity Testing: yes RDC/RC trigger function: yes Rotating magnetic field testing: yes Single pole phase testing: yes Measuring point illumination: yes

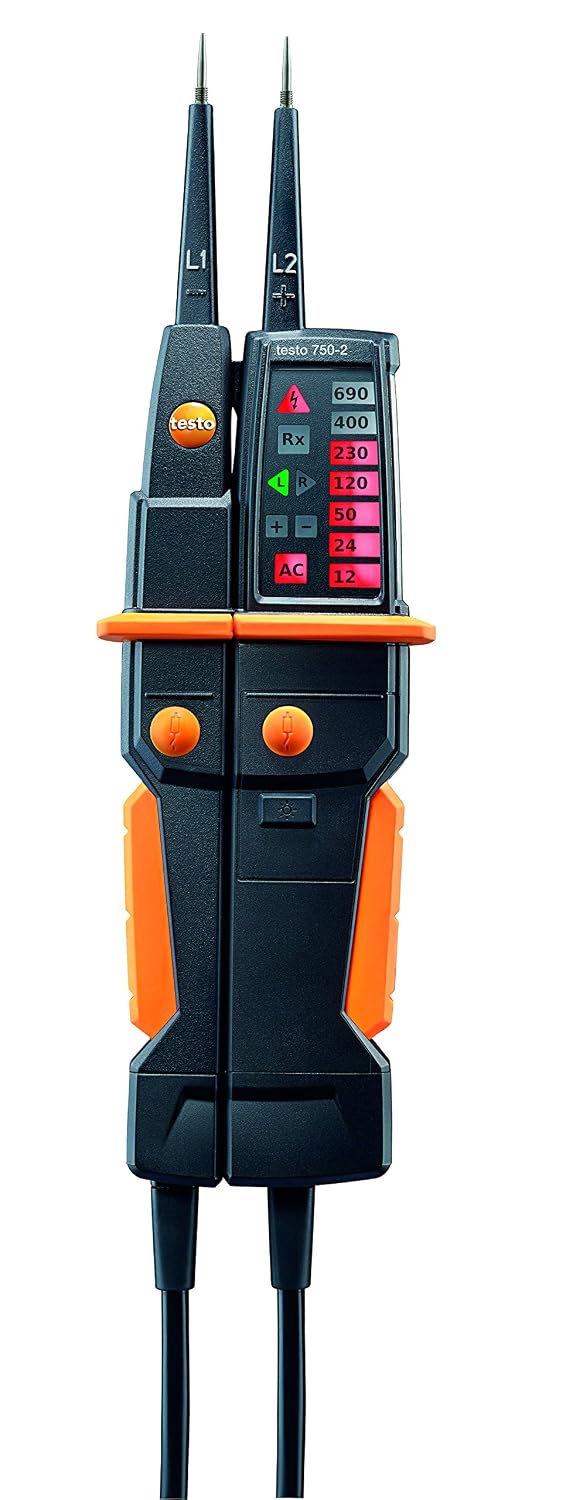

Testo 750-2 -Voltage Tester, batteries, measuring tip protector and measuring tip caps. Additional features: suitable for single pole voltage testing, torch light, RC trigger function.
