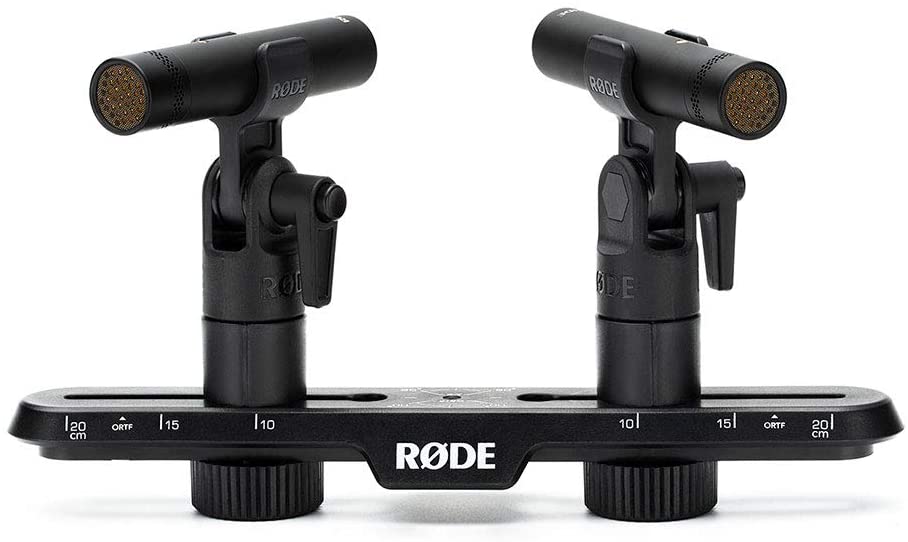

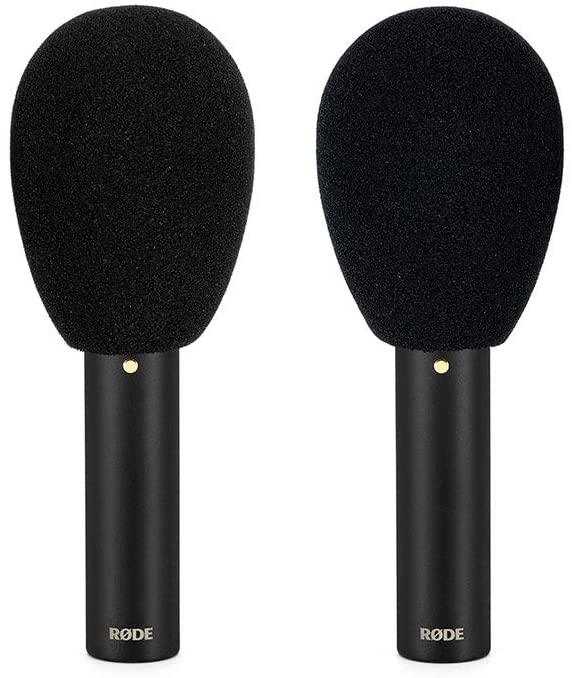

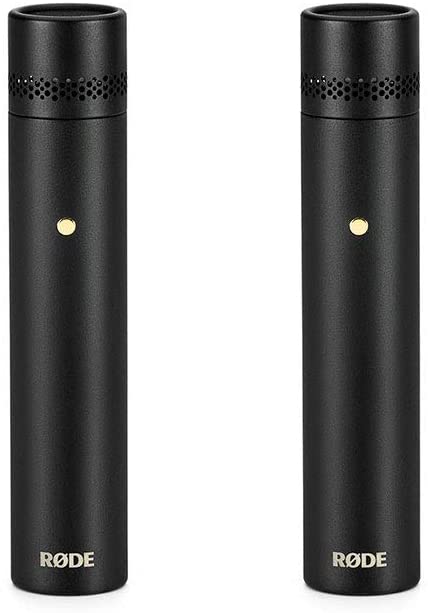

RØDE TF-5 Pair of Matching Condenser Cardioid Microphones

The TF-5 is a new standard in the field of small diaphragm condenser microphones. The fully refurbished capsule designed with lower micron tolerances delivers unparalleled tone and response consistency. The TF-5 offers the same clarity and “airy” as the sound characteristic of the small diaphragm RØDE microphones, adding the warm sound often absent in this type of “pencil microphones”. This is the unique versatility of the TF-5. Features Cardioid condenser microphones with small diaphragm coupled with precision extremely low noise level Flat frequency response Precise cardioid directionality warm and faithful sound Ideal for the most delicate recording conditions Designed in collaboration with Tony Faulkner, Grammy Winning Sound Technique TF-5 ACOUSTIC & ELECTRICAL SPECIFICATION Acoustic Principle Externally Biased condenser Active Electronics JFET impedance converter with bipolar output buffer Polar Pattern Cardioid Frequency Range 20Hz – 20kHz Frequency Response 30Hz – 20kHz ±3dB // 20kHz ±4dB Output Impedance 63Ω Signal to noise Ratio 80dB Equivalent Noise 14dB SPL (A-weighted, as for IEC651) Input SPL @1% THD 120dB L (1kHz @ 1% THD, 600Ω load) Sensitivity -29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz) Dynamic Range 112.6 dB (1kHz @ Max SPL) Power Requirements 7mA @ 48V Phantom Power Weight (g) 114g (single microphone) Dimensions Length: 98.7 mm Diameter: 20 mm.
