Specification: Model: TL-W5MC1 Detection Distance: 5mm ± 10% Detection Object: Iron/Magnetic Metal (Detection distance of non-magnetic metal will reduce) Power Supply Voltage: DC12-24V Output Mode: NPN 3-wire normally open (NPN NO) Output Current: Max 100mA Cable Length: 1.75m Temperature Range: -25~60°C Insulation Resistance: >50MΩ Shell Material: ABSPackage List: 1 x Inductive Proximity Switch

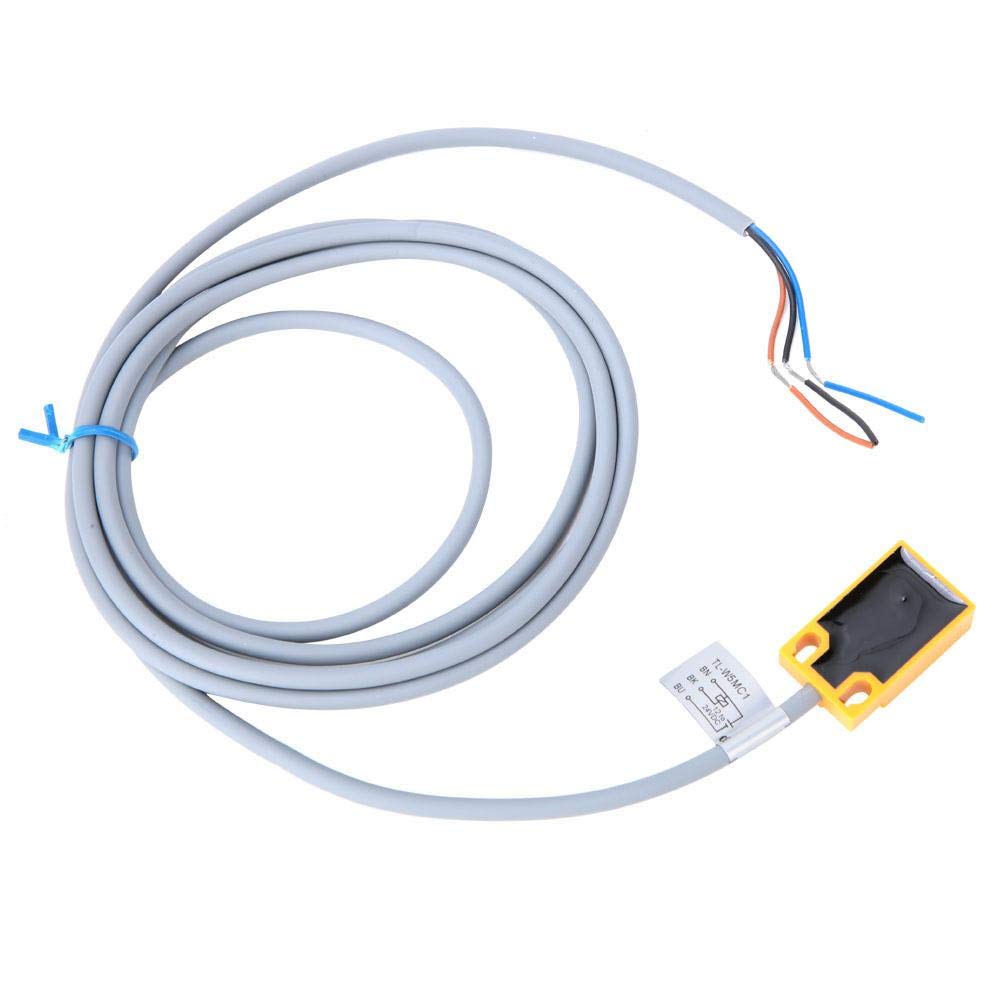

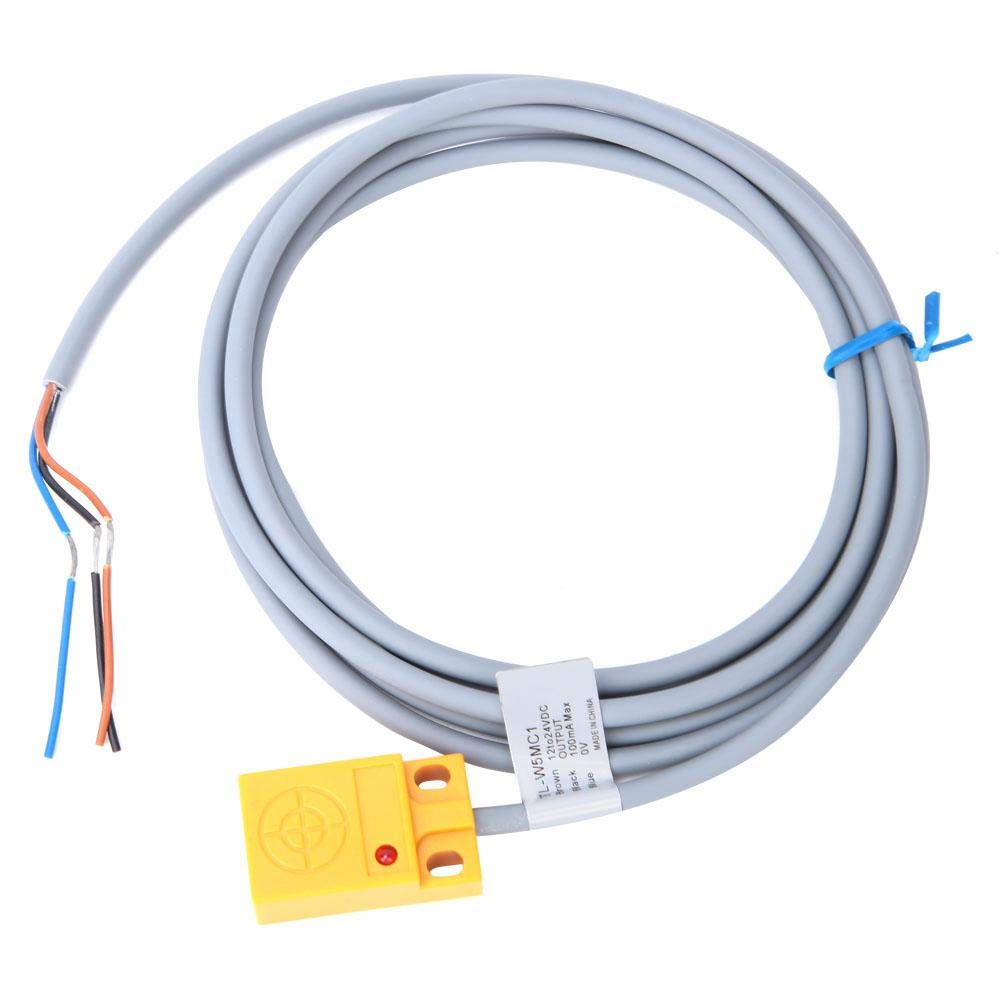

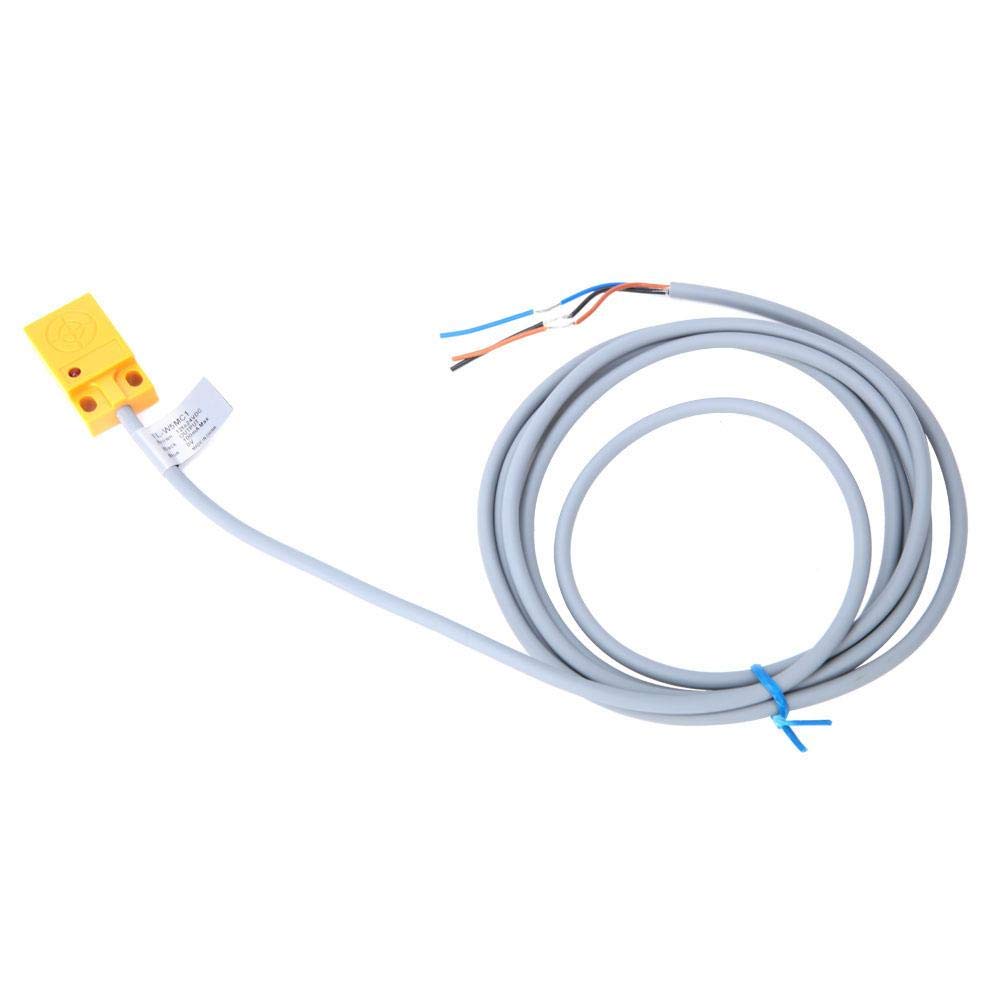

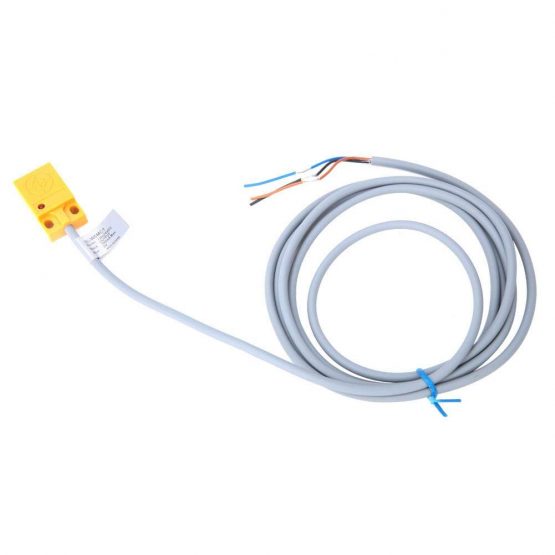

TL-W5MC1 5mm Detecting Distance Approach Sensor Inductive Proximity Switch for Automatic Control System NPN NO DC 12-24V 100mA 3-Wire
$20.99
- HIGH PERFORMANCE: This proximity switch has fast response, high reliability and strong anti-interference ability.
- WORKING STATUS:The proximity switch stays open, and closes when it detects object in detection distance.
- 5MM DETECTION DISTANCE:This is an inductive proximity switch sensor with 5mm detection distance.

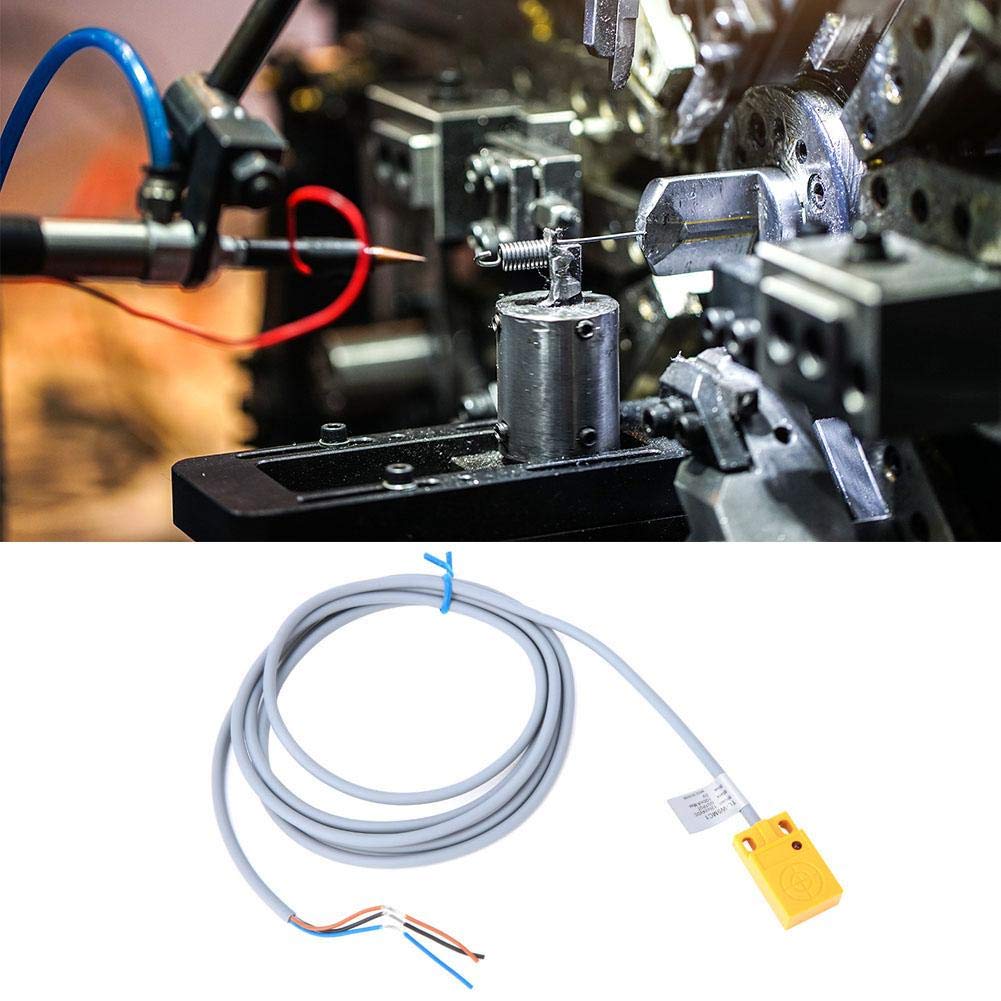

- WIDE RANGE OF USES:This proximity sensor is widely used in automatic control system for detecting, positioning control, counting, automatic protection and more.
- NON-CONTACT REACTIVE MOVING OBJECT POSITION:When the object approaches the sensing area of the switch, the switch can quickly emit electrical commands without contact or pressure required, accurately reflecting the position of the moving object.
In stock
Additional information
| Weight | 0.05 kg |
|---|---|
| brand | Garosa |
| dimensions | 5 x 5 x 5 cm ; 49.9 g |
