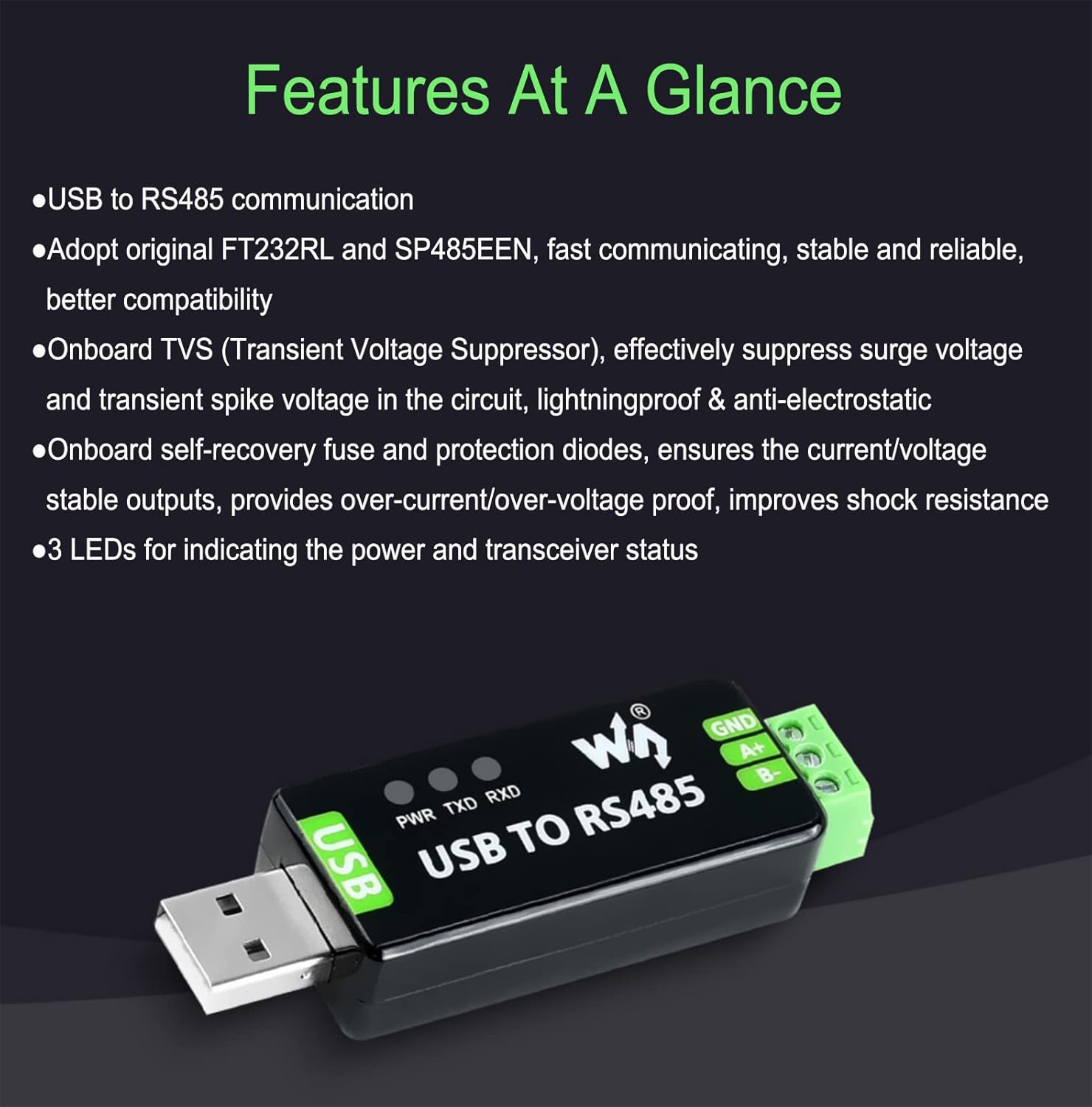

USB to RS485 Adapter Industrial Converter Adopt Original FT232RL and SP485EEN, Onboard TVS Diodes Self-recovery Fuse Lightningproof ESD Protection Circuits, Fast & Stability Communication

Overview This is an industrial USB to RS485 converter with original FT232RL and SP485EEN inside. It features embedded protection circuits such as lightningproof, resettable fuse, ESD protection, and TVS diode, etc. It’s pretty small in size. The USB TO RS485 is very easy to use, allows automatic transceiving. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement. Specifications 1. Product type: industrial converter 2. Baudrate: 300-921600bps 3. Host port: USB 4. Device port: RS485 5. USB: 1) Operating voltage: 5V 2) Connector: USB-A 3) Protection: 200mA self-recovery fuse, ESD protection 4) Transmission distance: about 5m 6. RS485: 1) Connector: screw terminal 2) Pins: A+, B-, GND 3) Direction control: hardware automatic control 4) Protection: 600W lightningproof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor) 5) Transmission distance: about 1200m (low rate) 6) Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) 7. LED indicators: 1) PWR: red power indicator, light up when there is USB connection and voltage is detected 2) TXD: red TX indicator, light up when the USB port sends data 3) RXD: red RX indicator, light up when the device ports send data back 8. Operating environment: 1) Temperature: -15℃ ~ 70℃ 2) Humidity: 5%RH ~ 95%RH 9. Operating system: Mac, Linux, Android, WinCE, Windows 11 / 10 / 8.1 / 8 / 7 / XP Package Content 1. USB TO RS485 x1 2. USB-A male to female cable x1 3. Screwdriver x1 Development Resources https://wwwshare/wiki/USB_TO_RS485?store
