Use this temperature probe with NTC sensor to carry out surface temperature measurements on pipes with a pipe diameter of up to 75 mm. For example, you can use it to determine the surface temperature of heating pipes.

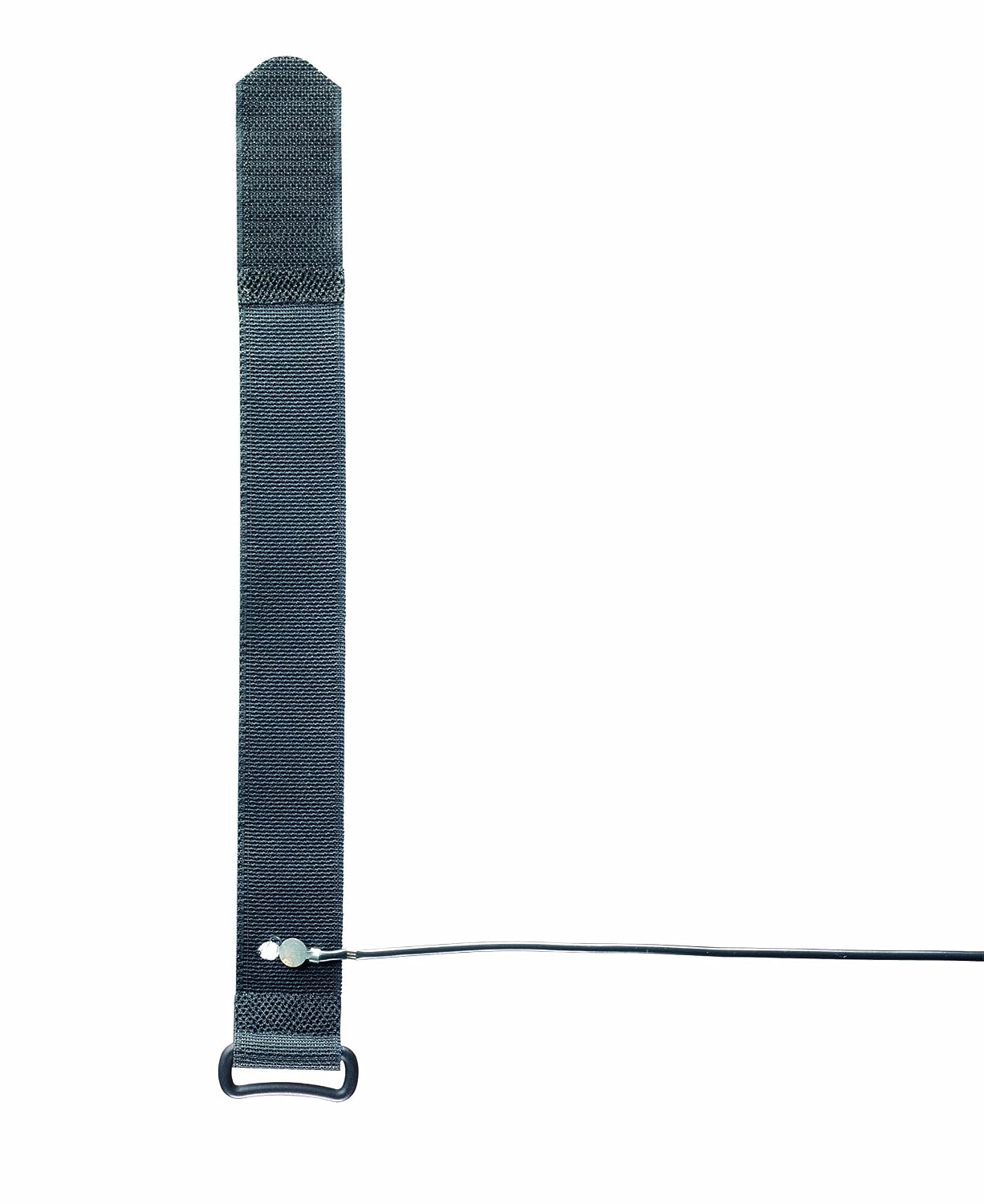

The NTC sensor for measuring temperature is attached to a wide, 300 mm long strip. The Velcro fastener on this strip enables the surface probe to be attached to the pipe quickly and easily.
For optimum heat transfer between the surface probe and the measurement object, we recommend using our optional silicone thermal conduction paste.
The surface probe features a cable. This means that you can also use it at measuring points which are not in close proximity to the Wi-Fi data logger.
Temperature – NTCMeasuring range: -50 to +70 °CAccuracy: ±0.2 °C (-25 to +70 °C), ±0.4 °C (-50 to -25.1 °C)Reaction time: 60.0 sec
General Technical DataDiameter: 75 mmTemperature maximum: 75 °CLength probe shaft: 300 mmCable length: 1.5 m
1 x NTC temperature probe 0613 4611, can be connected to the testo Saveris 2-T2 Wi-Fi data logger
