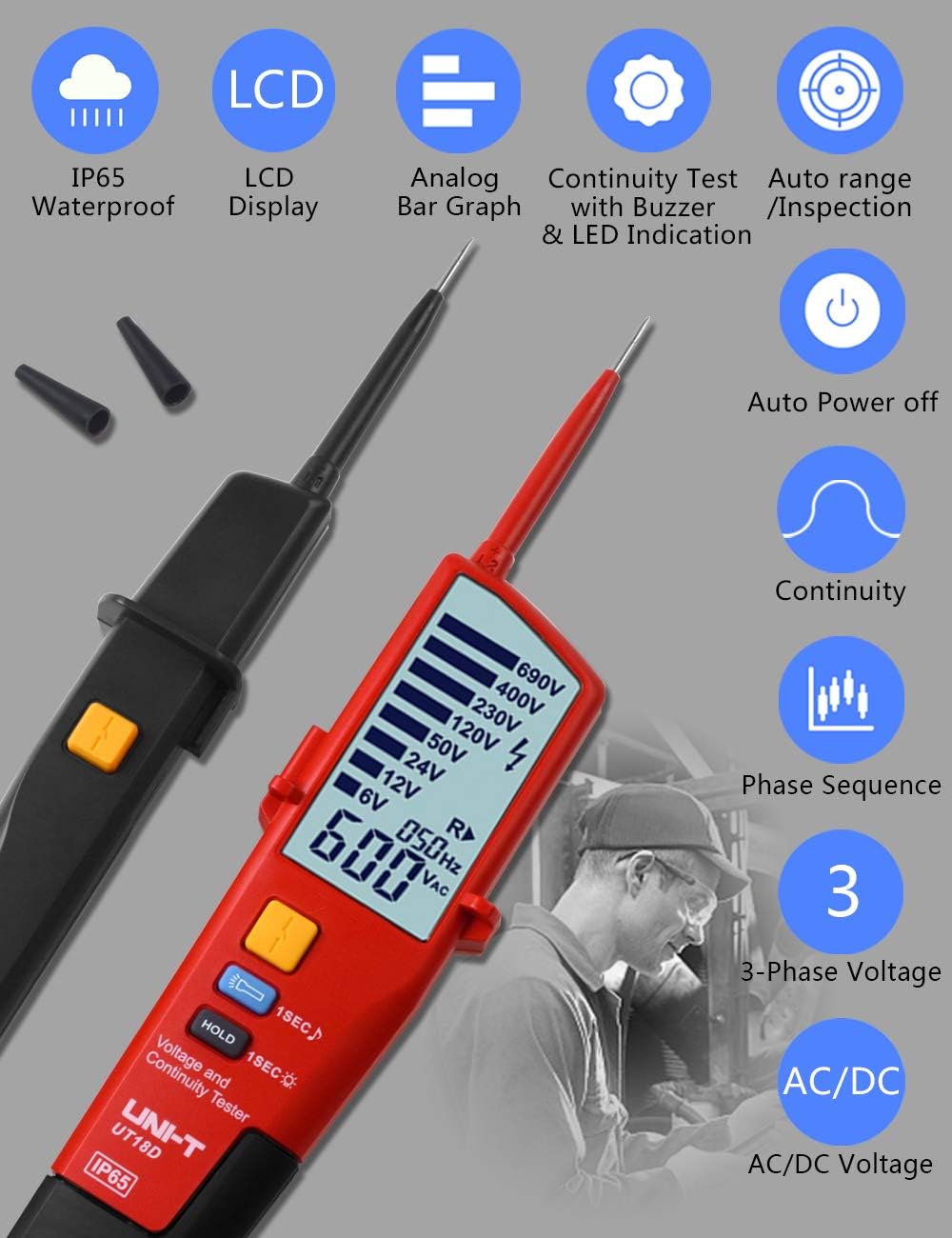

Features 1. LCD display and analog bar graph
2. Automatic shutdown to the driver to be measured is greater than 12V
3. Phase rotation test
4. Continuity test with buzzer and LED indication
5. RCD: Detecting the leakage protection switch
6. Indication of low battery and warning of over voltage
7. With flashlight
8. Buzzer and silent mode
9. Automatic standby mode
10. Auto range / inspection
11. Voltage, frequency display
12. Backlight of the LCD screen
13. Data retention
14. Polarity indication
15. LCD size: 73.5 × 35.5mm
Indication of AC / DC LED voltage (V) 12 V: 8 V ± 2 V
24 V: 18 V ± 2 V
50 V: 38 V ± 4 V
120 V: 92 V ± 6 V
230 V: 174 V ± 8 V
400 V: 320 V ± 10 V
690 V: 550 V ± 15 V
Phase rotation test Operating voltage: 100V ~ 690V
Frequency: 50Hz ~ 60Hz
Single-conductor voltage detection (L2) Operating voltage: 100V ~ 690V
Frequency: 50Hz ~ 400Hz
Continuity test Resistance: 0 ~ 100kΩ
LED light indicator and buzzer
RCD test Operating voltage: 230V (50Hz ~ 400Hz)
Polarity detection Positive and Negative
Self-inspection All LED or LCD indicators
Voltage Tester UNI-T UT18D Voltage and Continuity Tester – Waterproof Voltage Detector AC DC Tester Automatic Range with Flashlight
$210.99
- ? 【Versatile Meter】 The tester with AC and DC voltage measurement (including three phase alternating current) measurement, three phase AC power indicator phase, shutdown test, RCD test, single pen measurement (or wire can determine the zero line), self-test, without battery detection and other functions.
- ? 【Scope of Application】 Suitable for foundry, electronics, manufacturing, defense, electric power, petroleum, chemical industry. It is also used to solve complex problems of electronics, factory automation, power distribution and electrical equipment in.
- ? 【Large LCD Screen & Flashlight】 It has large screen, full visual, easy to read. Built-in bright flashlight, even in the dark corner can also work properly.
- ? 【Smart Tips】 Automatically distinguishes between zero lines and line of fire. Automatic shutdown to the driver to be measured is greater than 12V to ensure that the battery is in good condition.
- ? 【Security Guarantees】 Meets CE, CAT III 690V, CAT IV 600V and IP65 waterproof standards. Making sure the voltage is too large will not cause sudden injury to workers.
In stock
Additional information
| Weight | 0.45 kg |
|---|---|
| brand | Brand: UNI-T |
| dimensions |
