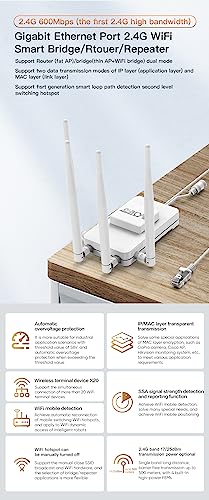

00-H is an Industrial 2.4GHz Gigabit WiFi Router Wireless Bridge Ethernet Repeater, WiFi Bridge with ethernet port, point to point Wireless bridge WiFi to ethernet adapter
Features:

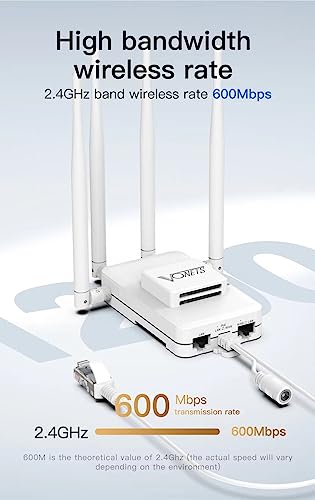

1. Support 802.11b/g/n WiFi transmission protocol, WiFi transmission rate: 600Mbps (2.4GHz) , theoretical value; Transmit power: 2.4GHz 19dBm/23dBm, optional
2. Support wide voltage DC12V-48V (Typical 12V/3A Applicable for No PoE), 48V/1.2A (Applicable for PoE) power supply, two-level overvoltage and overcurrent protection and reverse connection protection
3. Built-in 4 high-power FEM, greatly increased coverage;
4. Built-in intelligent automatic start-stop cooling fan; Intelligently automatically turn on the cooling fan, more effective heat dissipation
5. Support 3 RJ45 network ports and support POE power supply at the same time;
6. Point-to-point barrier-free maximum transmission distance: 300 meters (802.11a);
7. Working Environment temperature is -20℃ to 50℃
8. Support connecting more than 20pcs WiFi terminal at the same time;
9. Adopt temperature compensated auto frequency control technology, WiFi signal is more stable and not easy to drop;
Hardware Specification:
External interface: A DC power cable; A set of 100/1000M adaptive Ethernet cable, Support POE power supply;
Reset button: Long press 5 seconds, then release, the device will automatically restore the factory (During operation, the product can not be powered down, otherwise it may cause damage to the product.)
LED Status instruction:
Ethernet port status light (Yellow);
2.4G WiFi connection status light (Blue);
Packages:
VAR600-H*1
2.4GHz external antennas*4
Industrial DC connector*1
Fixing kit*1
User manual*1
Retail box*1
