WINGONEER trademark Reg:012678447Specifications: 1ating voltage: DC3V-35V 2rol power: Maximum 90W 3scent current: 0.01A(Standby) 4 duty cycle: 1%-100% 5 frequency: 10khz 6l: ZS-X4 7l size: 30MM*24MM(Without handle) total height is 15MM 8. Net weight: 0.015KG Note: Input voltage selection is divided into two stalls. Intermediate short contact and 3-15V short contact to connect to low voltage 3-15V input, intermediate and short contact 5-35V to connect to high voltage 5-35V. The default send out goods is 5-35V. Packing included: 1 x PWM Speed Controller

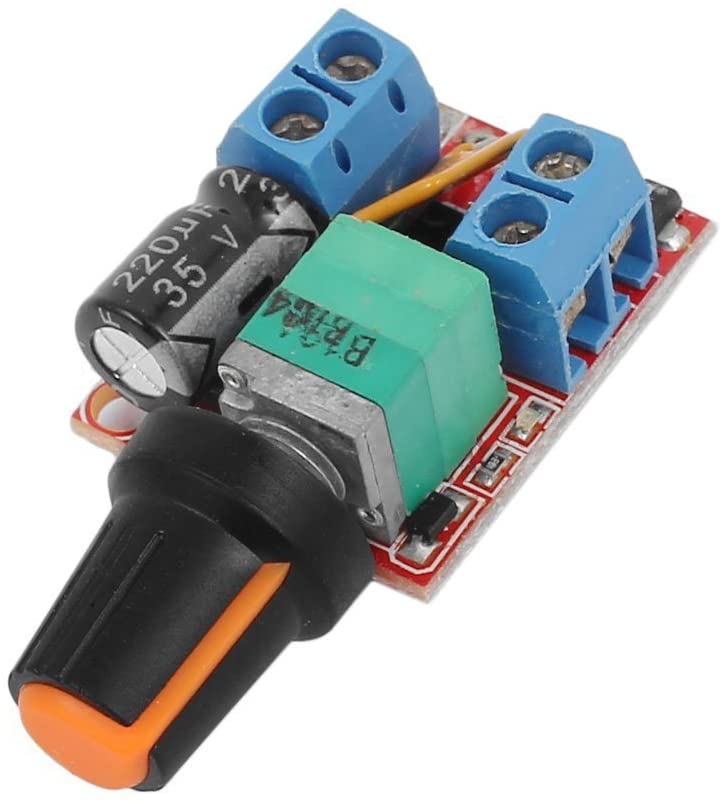

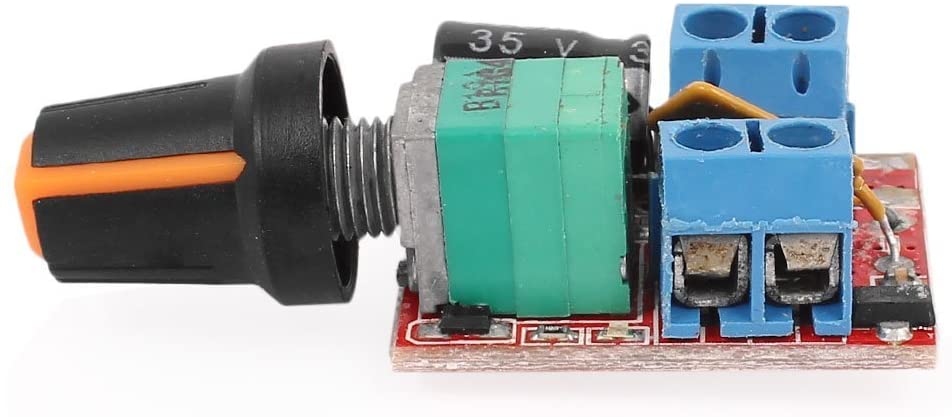

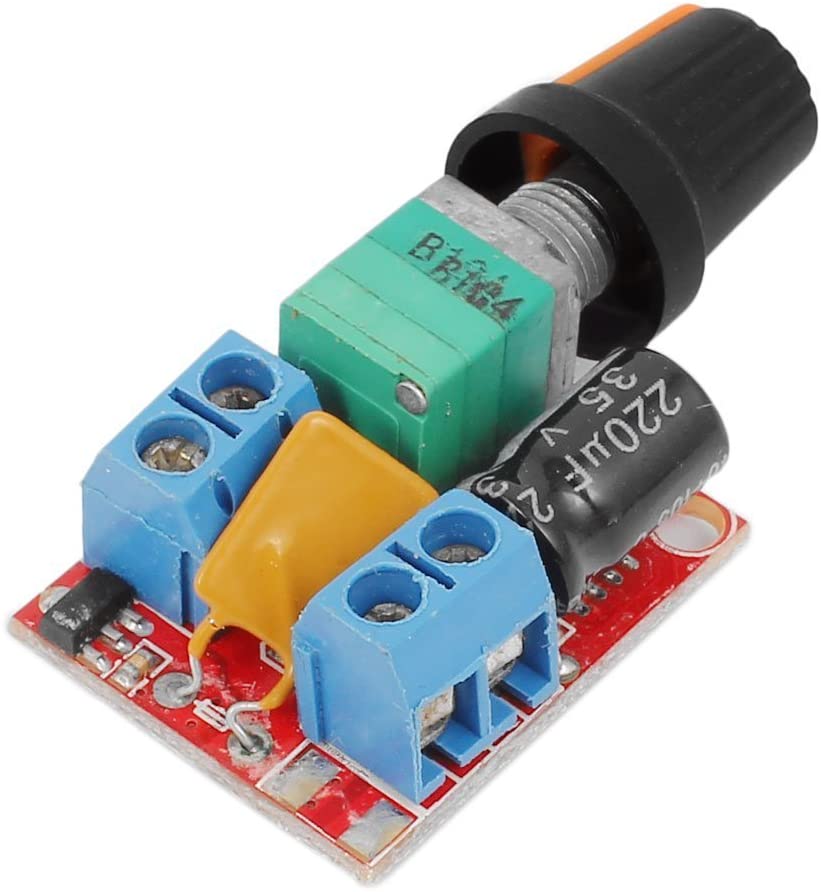

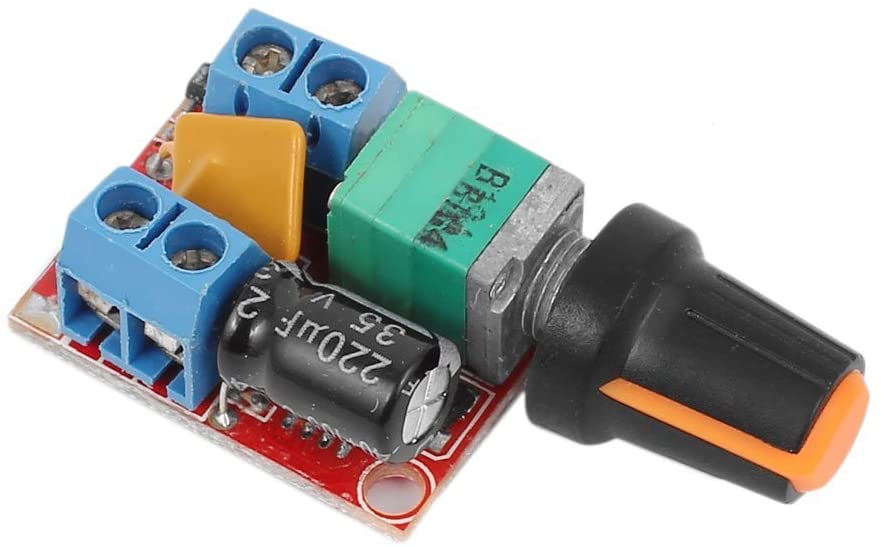

WINGONEER DC Motor Speed Control Driver Board 3V-35V 5A PWM Controller Stepless DC 3V 6V 12V 24V 35V Variable Voltage Regulator Dimmer Governor Switching Build with LED Indicator and Switch Function
$18.99
- Make sure this fits by entering your model number.
- Min DC motor governor, But also applies to LED dimming
- Wide voltage DC motor speed controller, PWM duty cycle: 1% -100%
- By screwing the potentiometer, you can turn off power supply output
- High voltage and high current resettable fuse, overcurrent automatic disconnection, power off for cooling for a few seconds fuses automatic recovery
- Default disconnection of short circuit point ,it is Applicable to 5-35V input voltage;If connect short circuit point,it is suitable for low voltage 3-15V input
In stock
Additional information
| Weight | 0.02 kg |
|---|---|
| brand | WINGONEER |
| dimensions | 8 x 3.8 x 2 cm |
