Specification: Dimension: 33 * 24mm/1.29 * 0.94inch. Weight: 10g/0.35oz. Voltage: 3.3V, 5V. Output Voltage: 0-24V. Input Current: Below 5A (Heat sinked is needed when current is above 1A) Port: Digital level. Platform: for Arduino, SCM, ARM, Raspberry Piures: IRF520 power MOS tube for PWM adjustment output. For Arduino to drive loads up to 24V, such as LED strips, DC motors, micro-pumps, solenoid valves. PWM modulation can be used to achieve stepless dimming LED, motor stepless speed regulationage Content: 10 * IRF520 MOS FET Driver Module

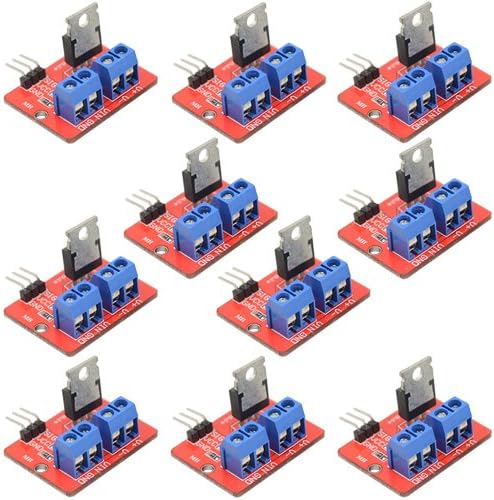

WMYCONGCONG 10 Pcs IRF520 MOSFET Driver Module for Arduino Raspberry Pi
$60.99
- Make sure this fits by entering your model number.
- IRF520 MOSFET driver module, using IRF520 power MOS tube for PWM adjustment output, ideal for Arduino 3D printer.
- Output Voltage: 0-24V; Max Load Current: 5A.
- Dimension: 33 * 24mm/1.29 * 0.94inch
- Note: The heat sink must be installed to drive a load above 1A, drive 1A above need to add heat sink.
- Package Content: 10 * IRF520 MOSFET Driver Module.
In stock
Additional information
| Weight | 0.096 kg |
|---|---|
| brand | WMYCONGCONG |
| dimensions | 19.2 x 14.2 x 4 cm; 96 Grams |
