Specification: Item Type:Worm Gear Motor Flange:Equipped Thread:Double Shaft Right and Left Handed M8 Thread 2480 Motor Optional Speed Reduction Ratio：17/31/50/100/200/290/500/670 No Load Rated Voltage (V)：24/24/24/24/24/24/24/24 No Load Speed ±10%RPM：470/260/160/80/40/27/16/12 No Load Current (A)：0.2/0.2/0.2/0.2/0.2/0.2/0.2/0.2 Rated Speed ±10%RPM：416/232/145/75/35/25/15/12 Rated Current (A)：0.695/0.59/0.652/0.643/0.643/0.697/0.634/0.612 Rated Torsion (KG)： 1.13/1.53/2.5/4.48/9.66/13.42/23.66/26.59 Rated Output Power (W)：4.91/3.71/3.77/3.47/3.44/3.52/3.74/3.09 Stall Output Power (KG)：5.9/12.8/16.33/29/54/66/No Stall Stall Current (A)：4/4/4/4/4/4Package List: 1 x Motor 2 x Flange

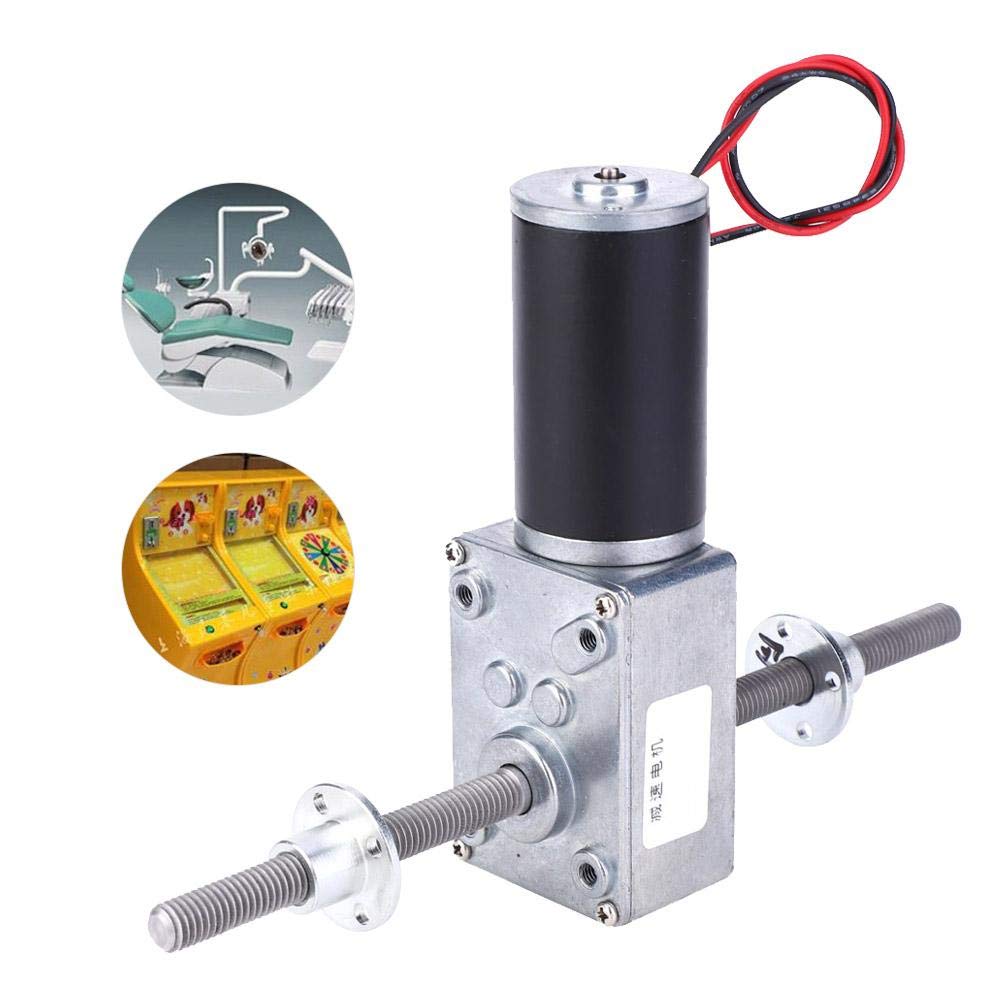

Worm Gear Motor, DC 24V Electric Double Shaft M8 Right-Hand and Left-Hand Thread DC Gear Motor High Speed High Torque Turbine Reducer 2480 Motor with Flange(Speed Reduction Rate 17)
$113.99
- ▲Low Noise: This worm gear motor has strong body and silent operation structure, very suitable for home use.
- ▲High Quality: This worm gear motor has solid and durable cabinet. Using best materials, energy efficient and corrosion resistant.
- ▲High Performance: This worm gear motor has small size but the power is sufficient, M8 screw double shaft for long life and high accuracy.
- ▲Low Loss: All machine gears are made of steel teeth, alloy material, accurate and durable, low loss.
- ▲Right And Left Thread: This worm gear motor equipped with right and left hand thread, suitable for flange relative movement and opposite motion.
In stock
Additional information
| Weight | 0.41 kg |
|---|---|
| brand | ViaGasaFamido |
| dimensions |
