Specification:
Condition: 100% brand new
Weight: 130g/4.6oz
Model: HS-60-12
DC output voltage: 12V
Output voltage tolerance: 1%
Rated output current: 5A
Output current range: 0 ~ 5A
Ripple noise: 100 mVp-p
Stability of incoming line:±0.5%
Load stability:±0.5%
DC output power: 60W
Efficiency: 85%
DC voltage adjustable range: 10%
Input voltage range: 100 ~ 240V AC 47 ~ 63Hz; 120-370 V DC
Input current: 2A/115V 1A/230V
Shock current: cold starting current 30A/115V, 60A/230V
Leakage current: < 3.5ma /240VAC
Overload protection: 105% ~ 150%; Type: cut off output; Reset: automatic recovery
Overvoltage protection: 115%-135%
High temperature protection:
Temperature coefficient: + 0.03% /℃(0 ~ 50℃)
Start, rise and hold time: 800ms, 50ms, 115VAC 300ms, 50ms/230VAC
Seismic resistance: 10 ~ 500Hz, 2G 10min, /1 cycle, 60 minutes in total, each-axis
Pressure resistance:
Between input and output: 3KvAC input and housing; 1.5kvAC output and housing; 0.5 KvAC
Isolation resistance:
Between the input and output, the input and the shell, the output and shell: 500 VDC / 100 mΩ
Working temperature and humidity: – 10℃~ + 60℃, 20% ~ 90% RH
Storage temperature and humidity: – 20℃~ + 85℃, 10% ~ 95% RH
Size: 85 * 60 * 34mm / 3.3 * 2.4 * 1.3in
Package List:
1 x Power Supply Regulated Switch

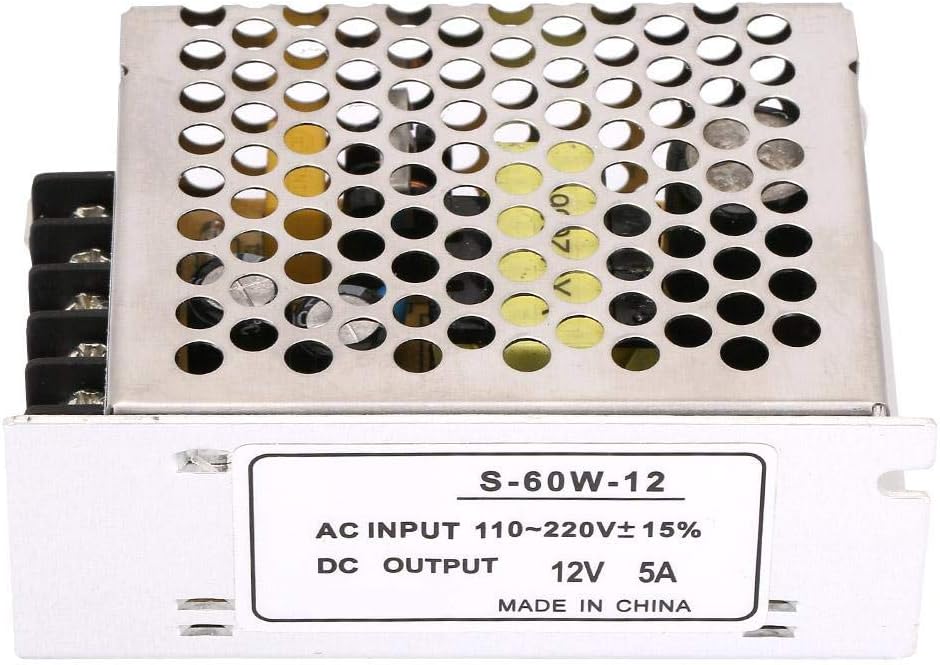

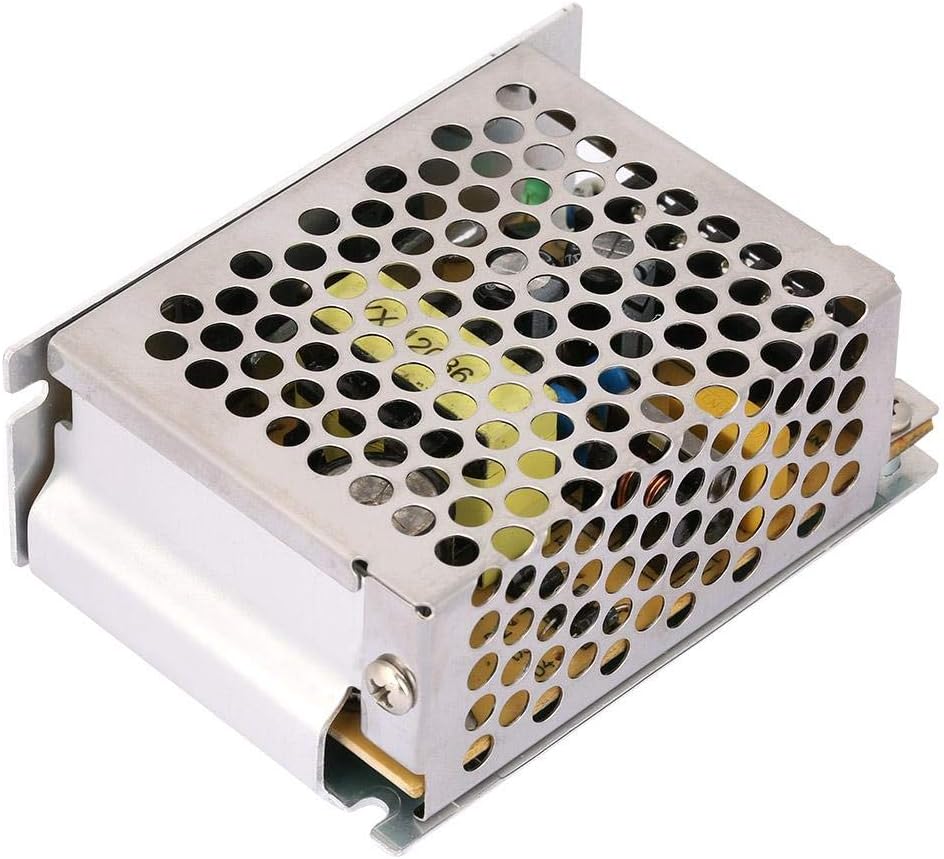

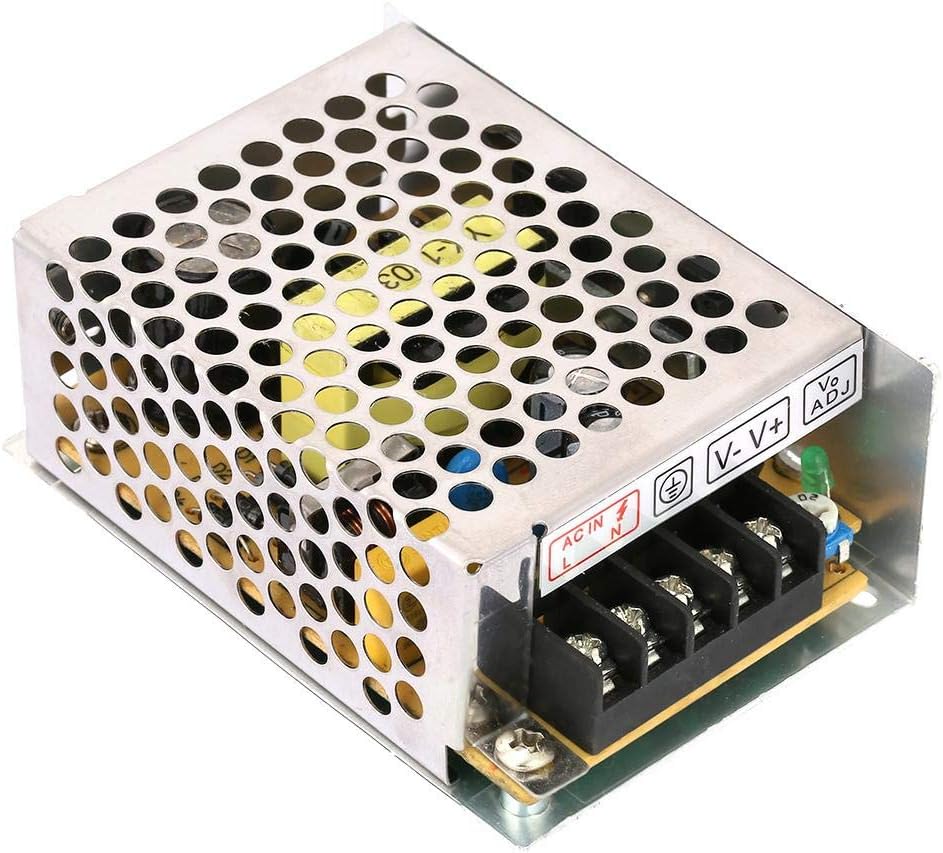

Yosoo Health Gear Regulated Switching Power Supply, 5A 12V AC/DC Voltage Converter Universal Regulated Transformer Converter for LED Strip Lights, Radio, Computer Project
$32.99
- [Wide Usage]: Regulated switching power supply housed in a compact metal case is ideal for reducing standby power usage in an abundant number of applications, more than a linear supply, such as industrial automation, 3D Print, DIY project works, LED display, LED strip light, etc
- [Safety]: Circuit Short Protection, Overload Protection and Over Voltage Protection Ensures the Safety of Using This Power Supply; This Switching Power Supply(SMPS) operates from AC100V~240V and converts to DC 12V.
- [Well Performance]: Good anti-interference performance, high reliability; Good insulation and high electrical strength
- [High Efficient]: Metal enclosed body is good for heat dissipation which can prolong the lifespan of the power supply
- [Energy saving]: Uses a switching regulator to convert AC mains power to low voltage DC and it does this much more efficient than a linear power supply; Switching power supplies also tend to be smaller in size than linear power supplies and use less raw material making the cost of power supply more reduced
In stock
Additional information
| Weight | 0.13 kg |
|---|---|
| brand | Yosoo Health Gear |
| dimensions | 9 x 6.5 x 4 cm; 120 Grams |
