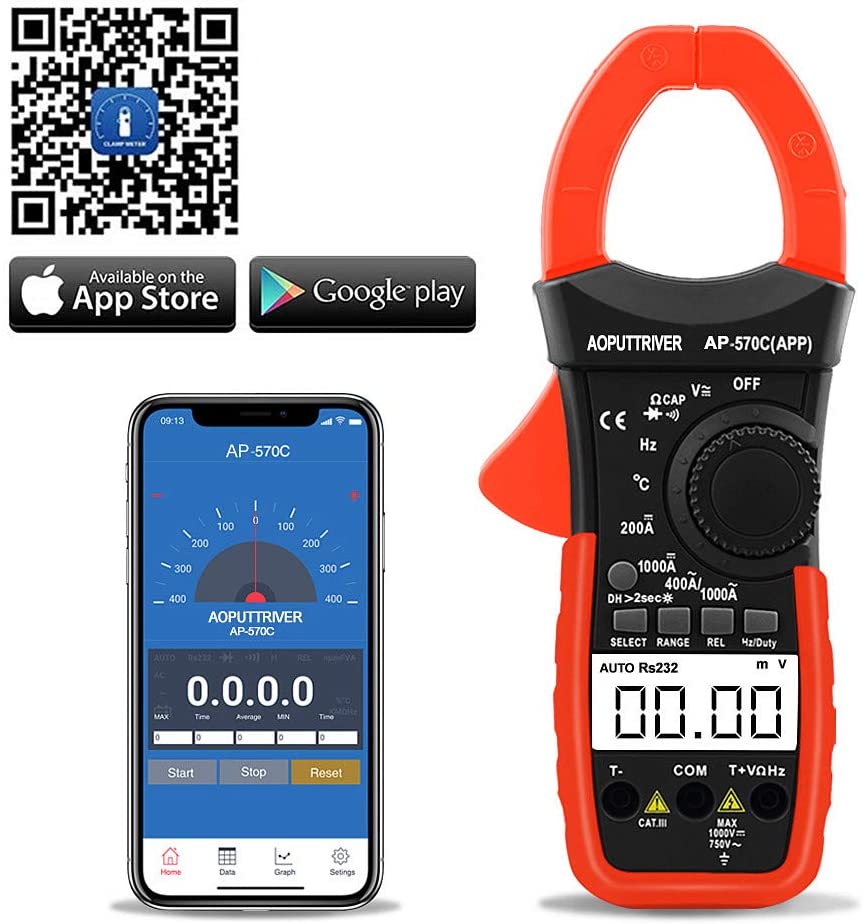

Why AP-570CAPP Pro Clamp Multi-tester?
Free APP available for download on App Store,Google Play.
Average sensing, calibrated to rms of sine wave on AC Voltage, AC Current test
It won’t auto off to support continuous measuring, data logging and then export the data in excel / txt file.
Fast responding data to your phone via Bluetooth APP, display all measurement and generates analog waveform graph on APP
Specifications:
Range Selection: Auto Ranging
DC Voltage: 400mV,4V,40V,400V,1KV
AC Voltage: 4V,40V,400V,750V
DC Current: 200A,1000A(Manual Range)
AC Current: 400A,1000A
Resistance: 400Ω,4000Ω,40KΩ,400KΩ,4MΩ,40MΩ
Capcitance:51.2nF, 512nF,5.12uF,51.2uF,100uF
Frequency:5.12Hz,51.2Hz,512Hz,5.12kHz,512kHz,5.12mHz
Duty cycle:0.1%~99.9%
Temperature:-20℃~-1000℃(-4℉~1832℉)
More features:
Backlight
Data Hold
Diode Test
Relative Value
Low battery indicator
Auto negative polarity indication
What You Get?
1*Clamp Meter
2*Test Leads
1*Carrying Case
1*Temperature Probe
1*Instruction Manual
Note: It is a normal phenomenon that a value is displayed on the screen before measuring. It can be explained as a detection signal from test leads. Every multimeter and clamp meter has the same phenomenon and it has no influence on your measurement.
In order to get back to zero, under voltage measuring, you can cross two test leads to form a short circuit. Under current measuring, you can push the REL key on the panel to zero.
